Instrument Panel Assembly Replacement

REMOVAL AND INSTALLATION

CAUTION:
1. When removing and installing the floor console assembly, don't allow any impact or shock to the SRS diagnosis unit.
2. For the passenger side air bag module removal/installation, always observe the service procedures for Air Bag and Clock Spring.

Pre-removal and Post-installation Operation
- Floor Console Removal and Installation

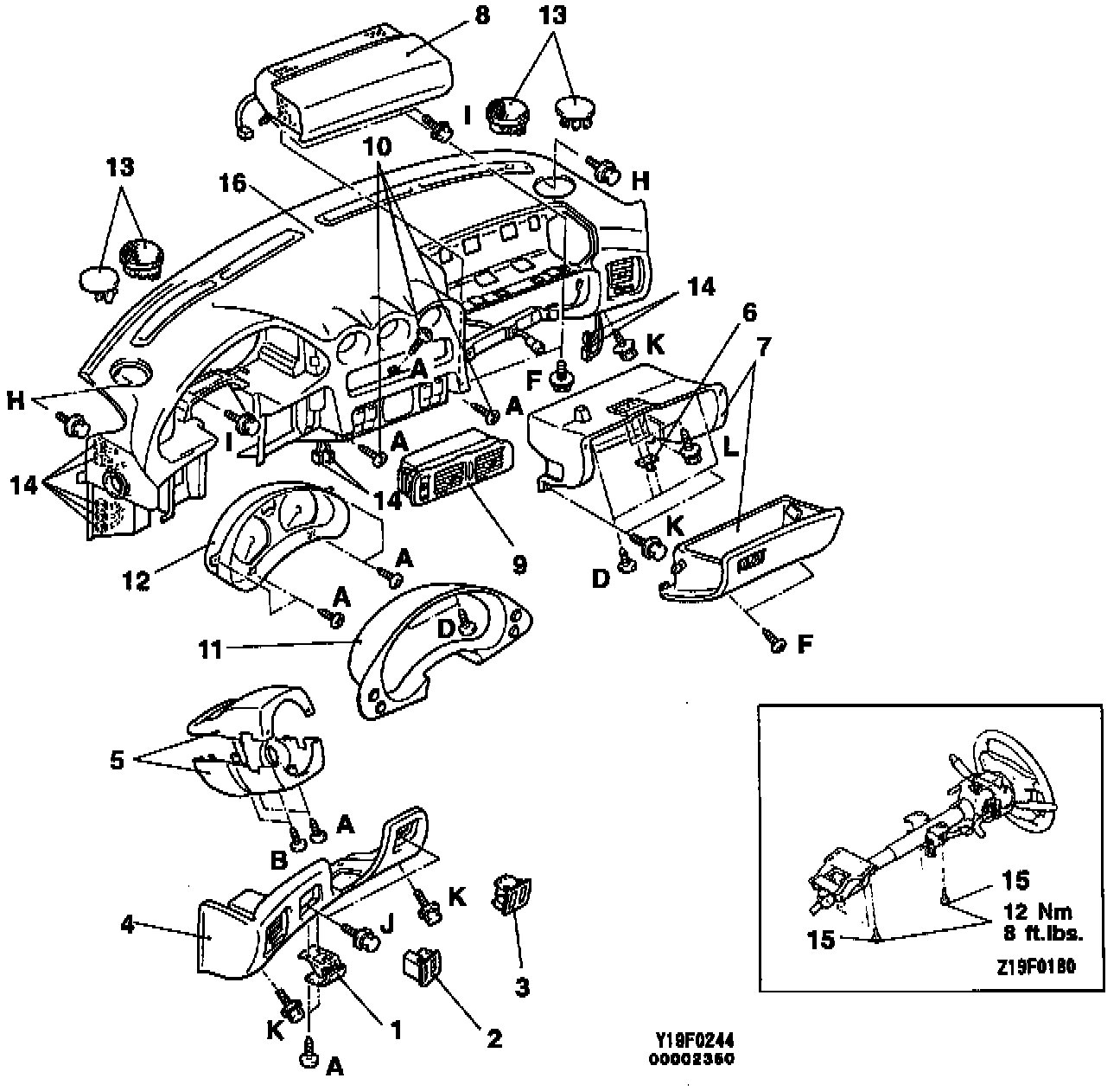

Removal steps
1. Hood lock release handle
2. Rheostat
3. Switch garnish B
4. Knee protector assembly
5. Column cover
6. Glove box striker
7. Glove box and cross pipe cover
8. Passenger seat air bag module (Refer to Air Bag)
9. Center air outlet assembly
10. Heater control assembly installation screws
11. Meter bezel
12. Combination meter
13. Speaker or plug
14. Harness connector
15. Steering shaft mounting bolts
16. Instrument panel assembly

REMOVAL SERVICE POINTS

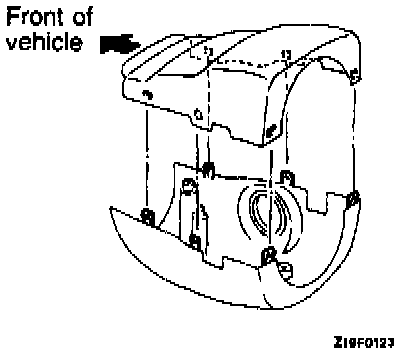

Column Cover Removal
Remove the screws and remove the column cover while using care not to break the claws.

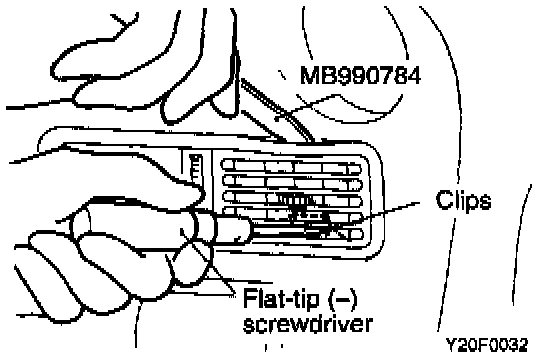

Center Air Outlet Assembly Removal
Disengaging the clips of the center air outlet assembly with a flat tip (-) screwdriver, remove the center air outlet assembly with the trim stick.

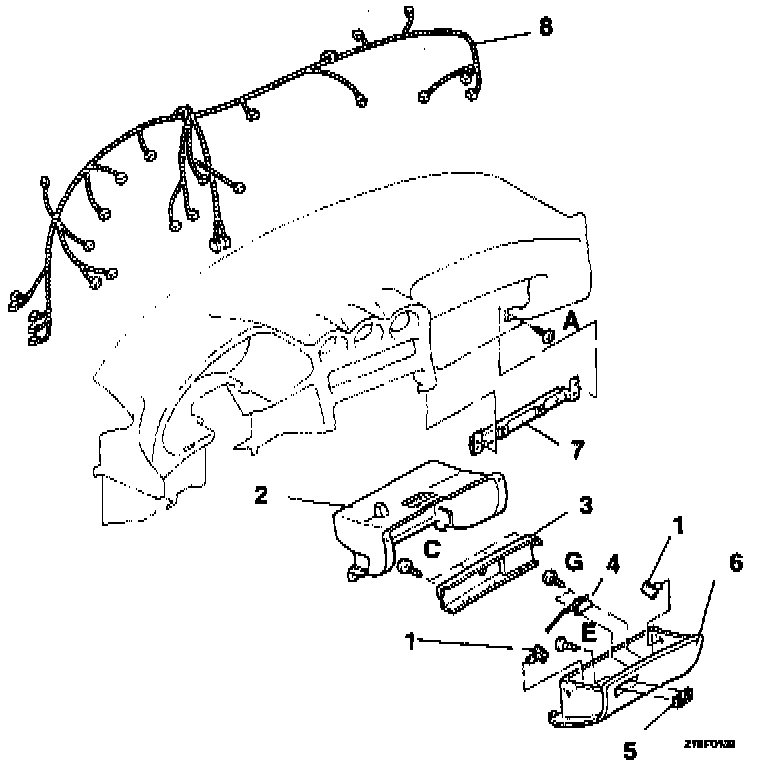

DISASSEMBLY AND REASSEMBLY
Glove box disassembly steps
1. Glove box stopper
2. Cross pipe cover
3. Glove box cover
4. Ratchet assembly
5. Lock cylinder assembly
6. Glove box

Instrument panel disassembly steps
7. Glove box lower frame
- Side air outlet
- Defroster garnish
- Heater ducts
- Combination gauge
8. Instrument panel wiring harness
