Console: Service and Repair

CAUTION: When removing and installing the floor console assembly, don't allow any impact or shock to the SRS diagnosis unit.

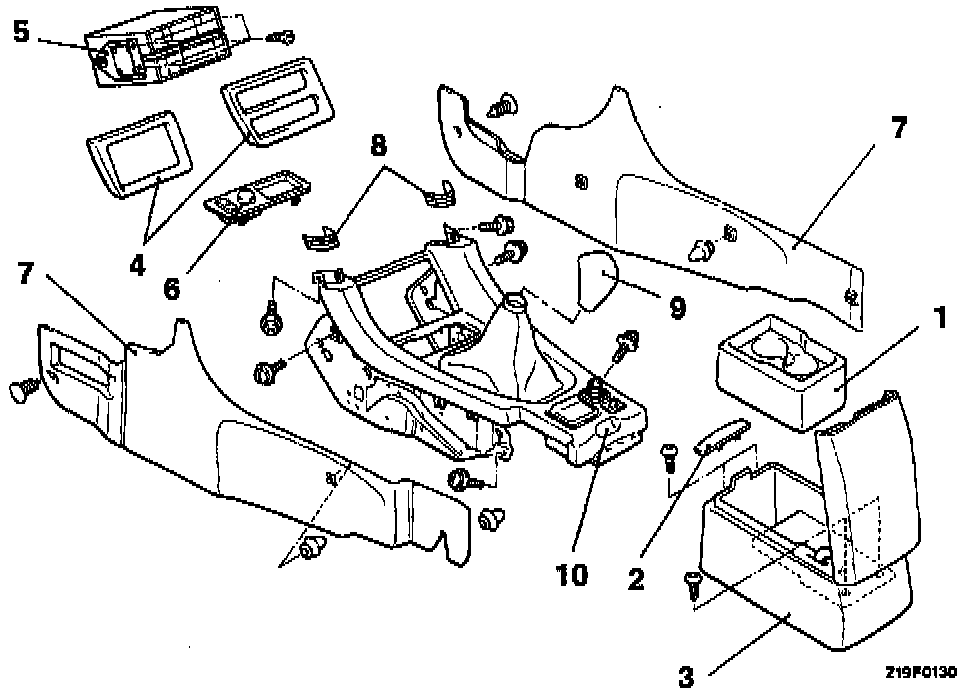

REMOVAL STEPS
1. Cup holder
2. Console plug
3. Rear console assembly
4. Radio panel
5. Radio
6. Switch garnish C
7. Console side cover
8. Front console garnish
9. Manual transaxle shift lever knob
10. Front console assembly

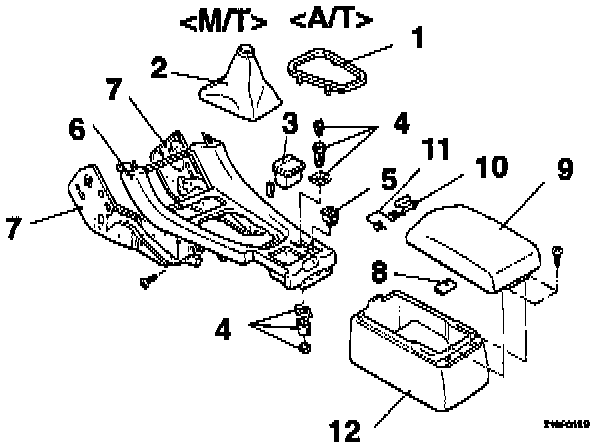

DISASSEMBLY AND REASSEMBLY
Front console disassembly steps
1. A/T garnish
2. M/T shift lever cover
3. Ashtray
4. Cigarette lighter
5. Power seat switch
6. Front console
7. Front console bracket

Rear console disassembly steps
8. Plug
9. Console lid
10. Lock lever
11. Spring
12. Rear console
