Front Door: Service and Repair

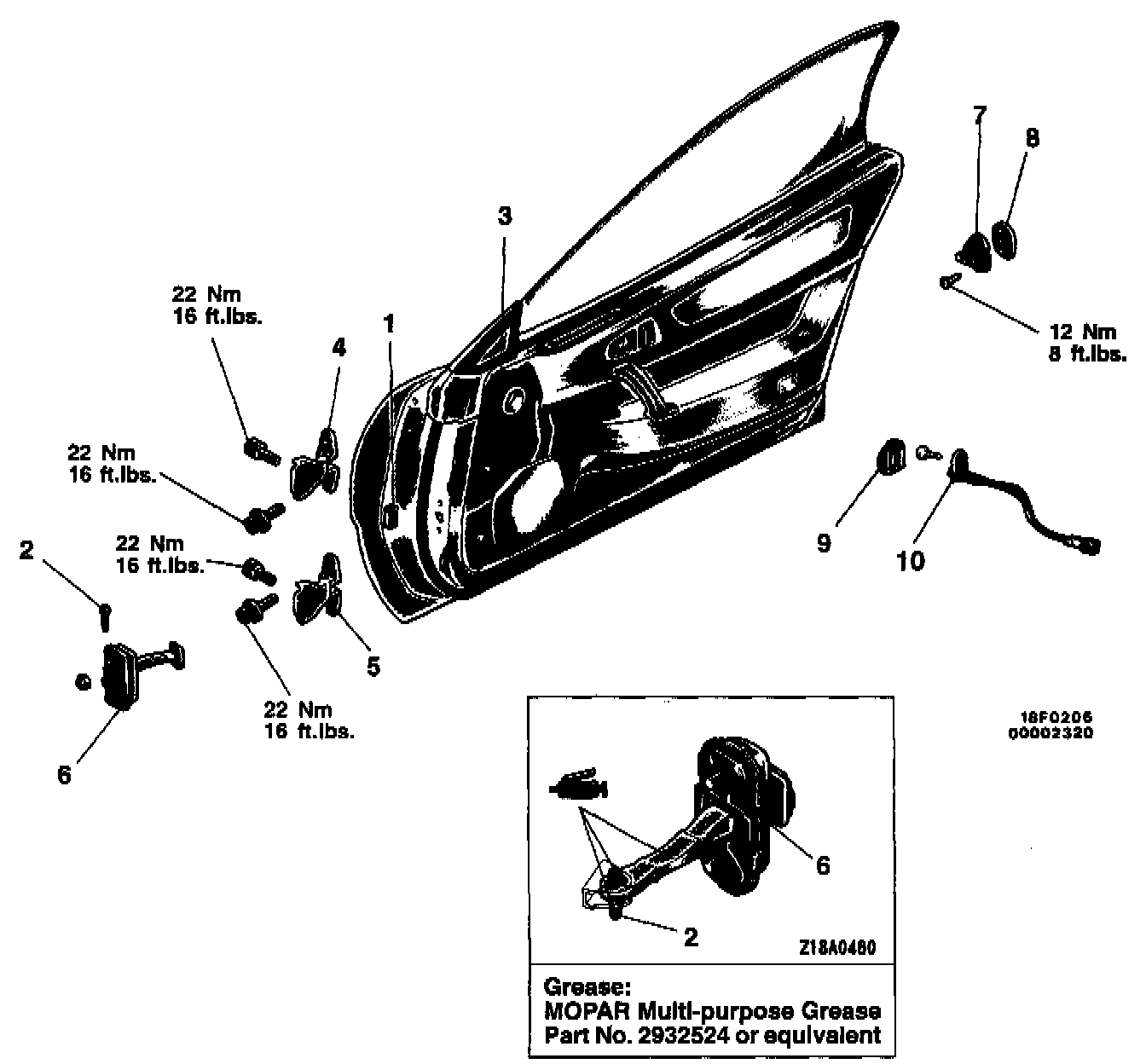

DOOR ASSEMBLY REMOVAL AND INSTALLATION

Door assembly removal steps
1. Connection for door wiring harness connector
2. Spring pin
3. Door assembly
4. Upper hinge
5. Lower hinge

Door check strap removal steps
- Door trim
- Waterproof film
2. Spring pin
6. Door check strap

Striker removal steps
7. Striker
8. Striker shim

Door switch removal steps
9. Door switch cap
10. Door switch
