Front Door Panel: Service and Repair

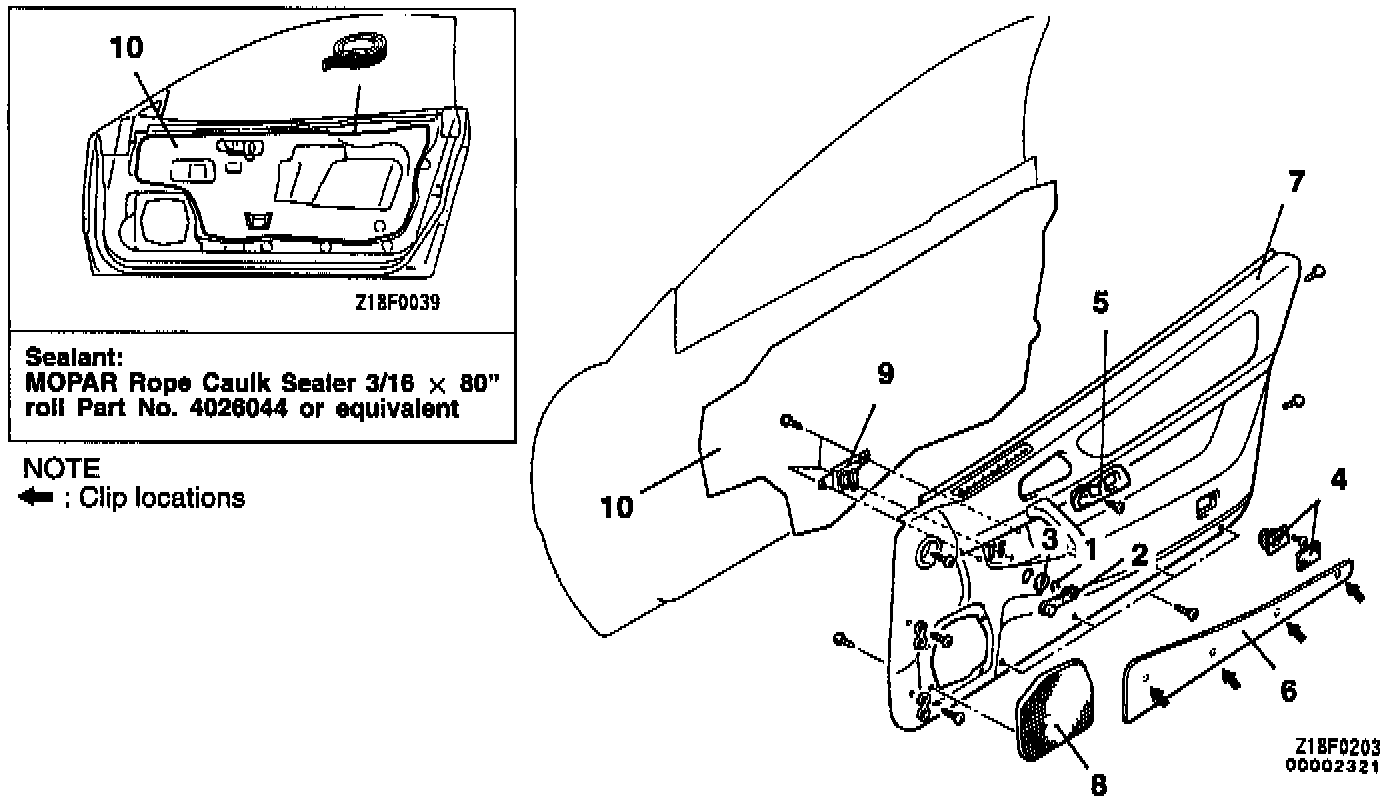

REMOVAL STEPS
1. Clip
2. Door window regulator handle
3. Escutcheon
4. Door light
5. Inside handle cover
6. Door trim carpet
7. Door trim
8. Speaker garnish
9. Power window switch
10. Waterproof film




REMOVAL SERVICE POINT

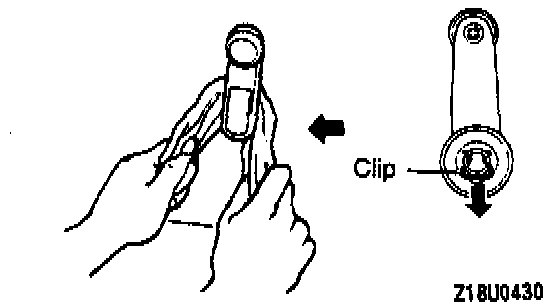

Clip Removal
Use a shop towel to remove the clip; and remove door window regulator handle.
