Radio Replacement

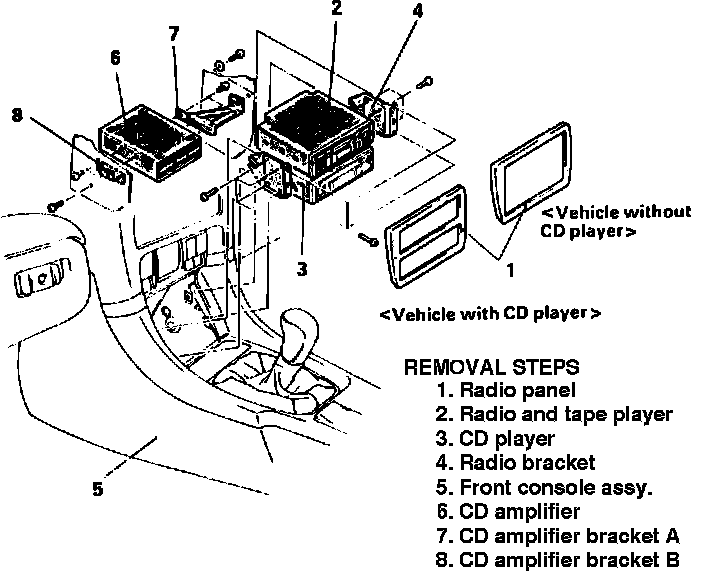

Fig. 8 Radio Assembly:

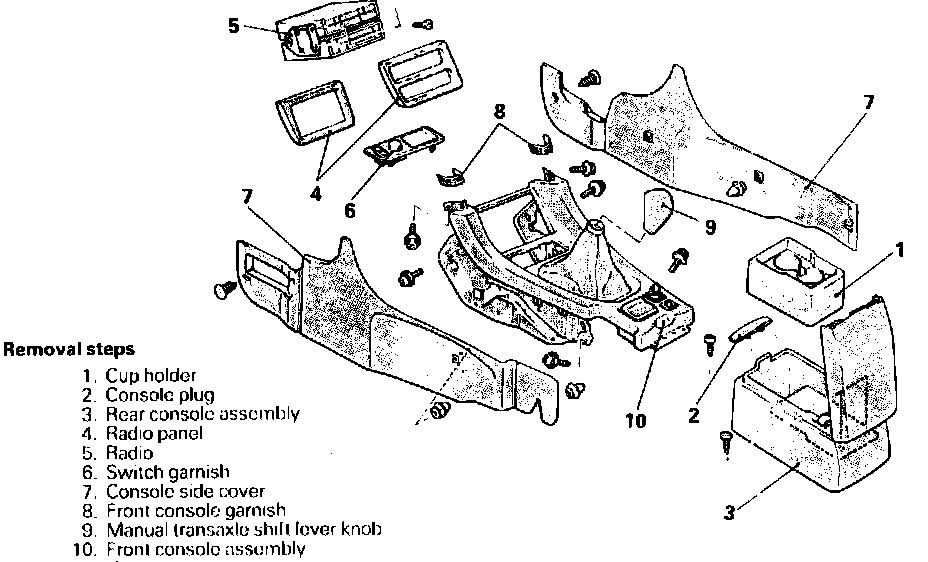

Fig. 9 Floor Console Assembly:

Disable airbag as outlined under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING before performing the following operation.
1. Disconnect battery ground cable.
2. Remove radio assembly as shown.
3. Remove front console assembly as shown.
4. Reverse procedure to install, enabling airbag as outlined under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
