Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Radio and Tape Player >> Without Amplifier

Without Amplifier

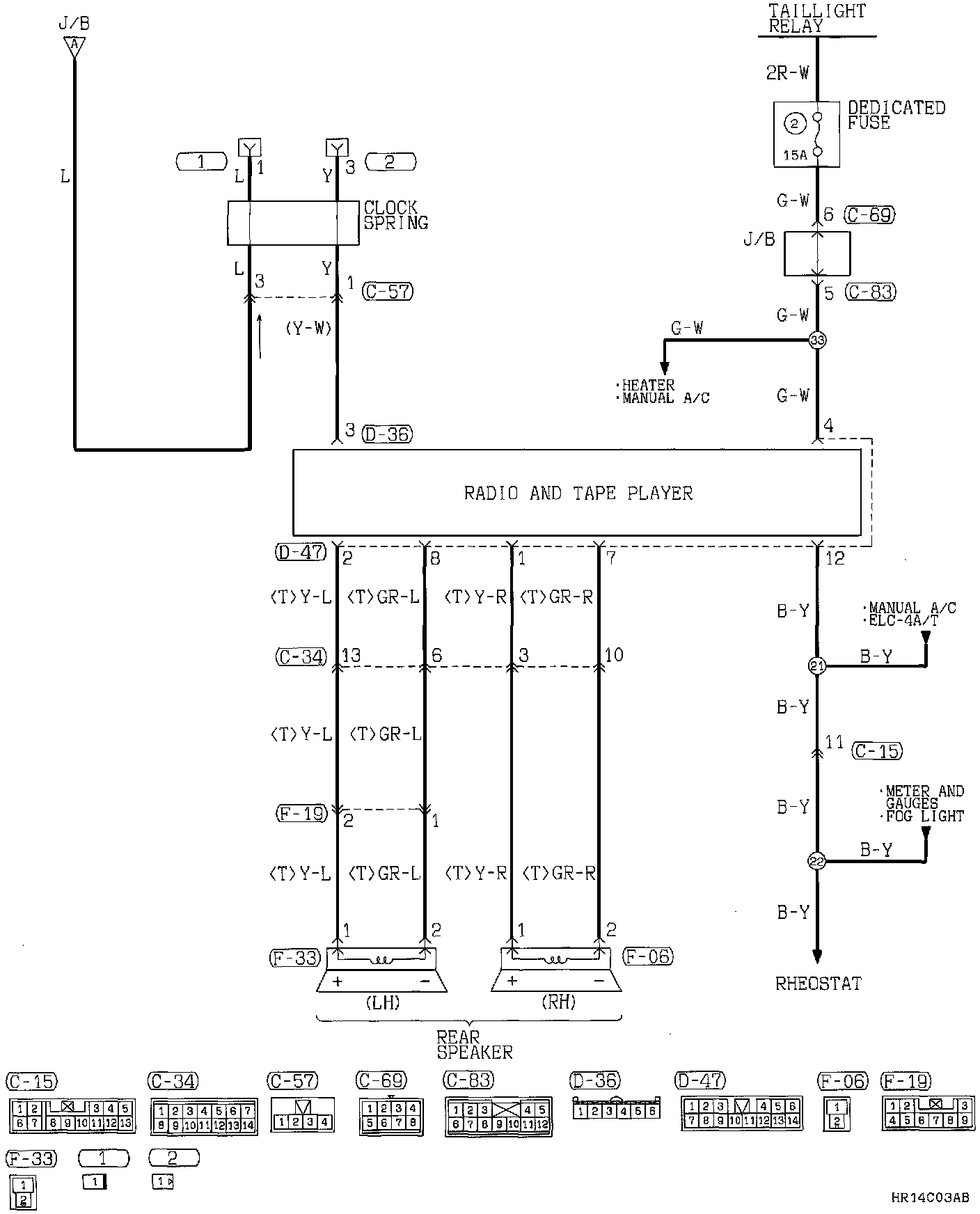

Radio And Tape Player (Part 1 Of 3):

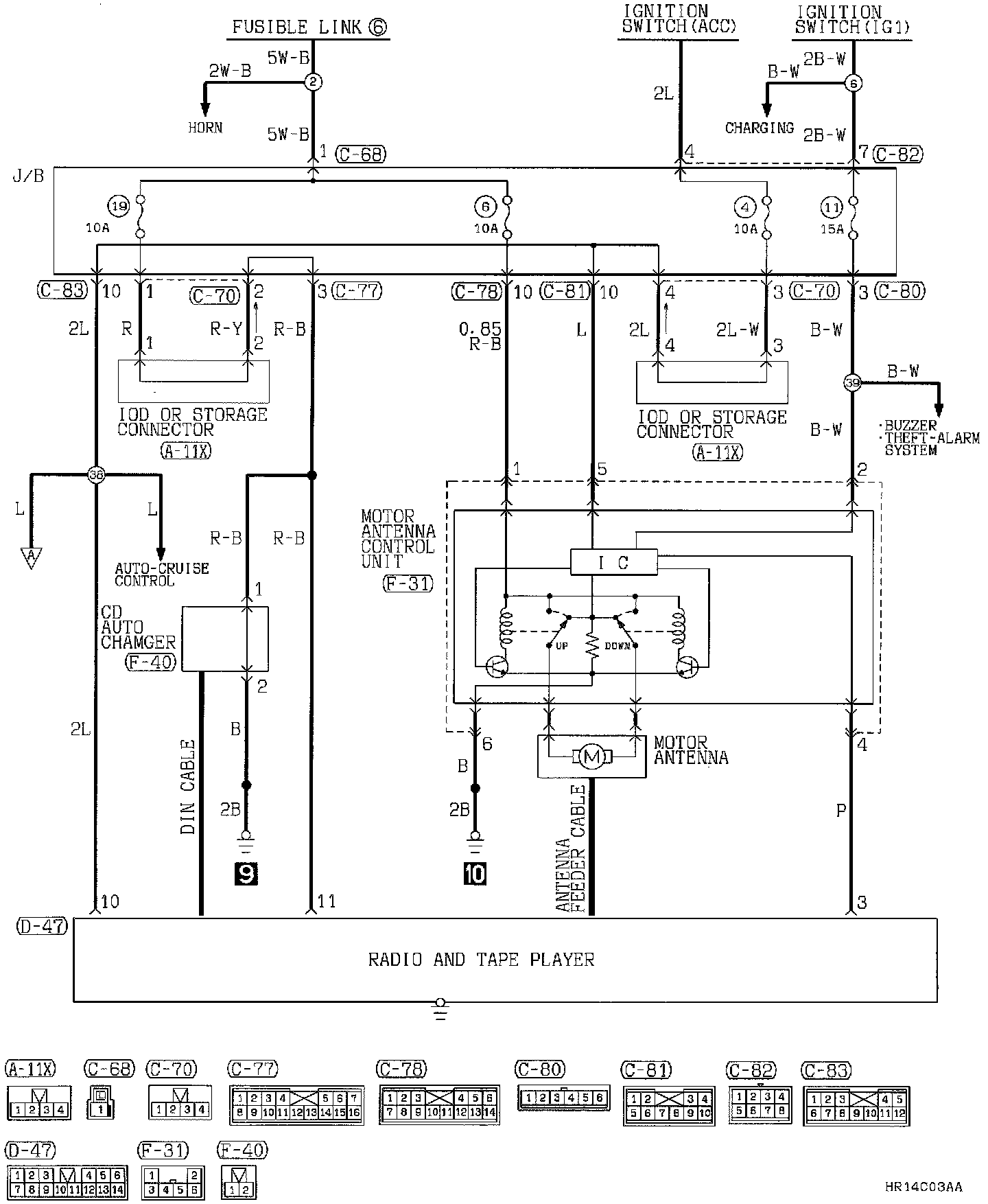

Radio And Tape Player (Part 2 Of 3):

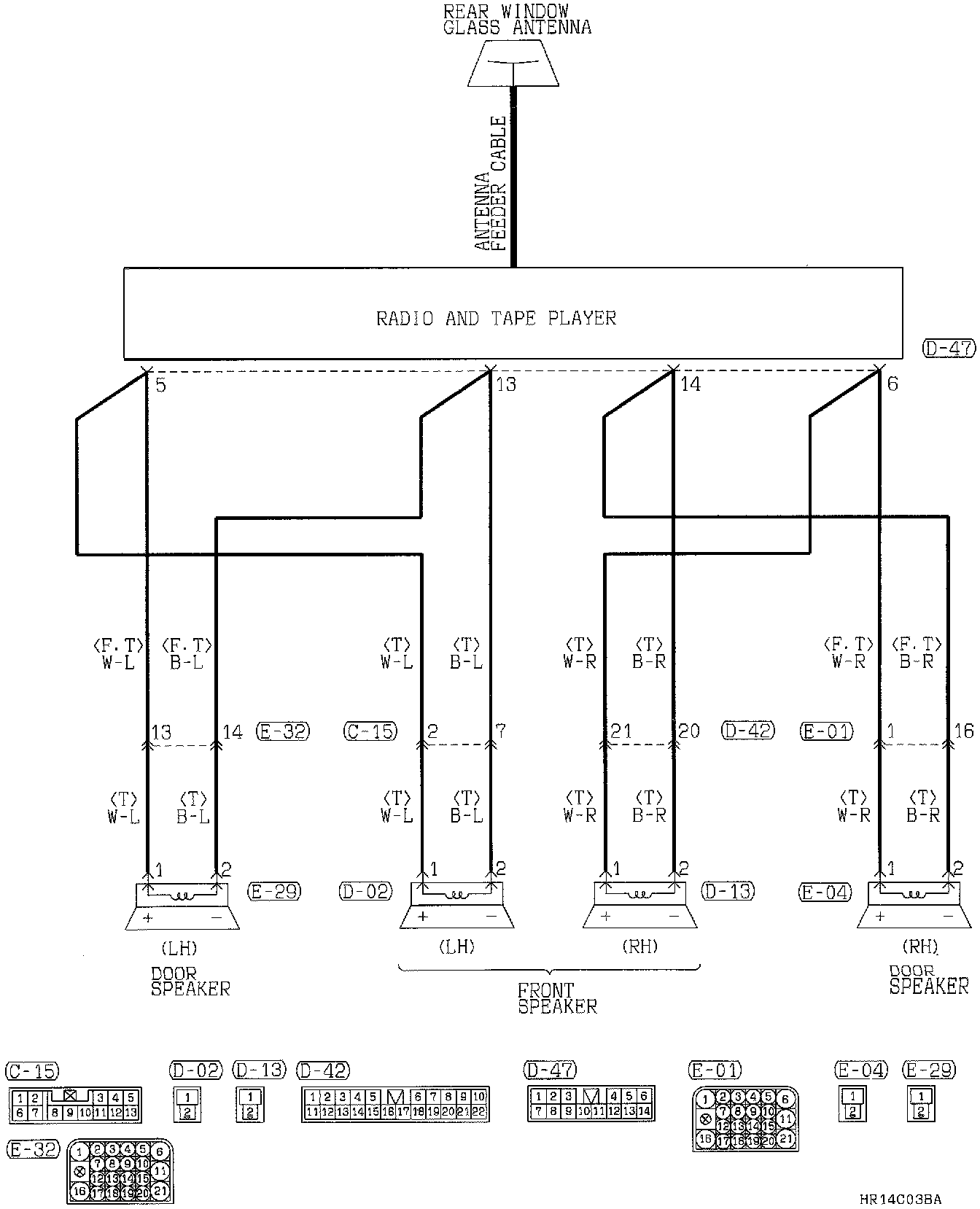

Radio And Tape Player (Part 3 Of 3):
