Alarm Horn Relay: Testing and Inspection

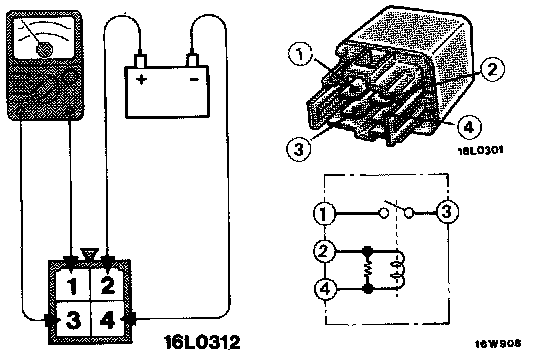

Theft-Alarm Horn Relay Inspection:

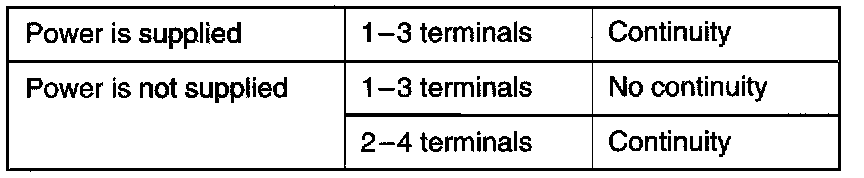

Theft Alarm Horn Relay Continuity Table:





Connect battery to terminal 2 and check continuity between terminals with terminal 4 grounded.
