Alarm Horn Relay: Description and Operation

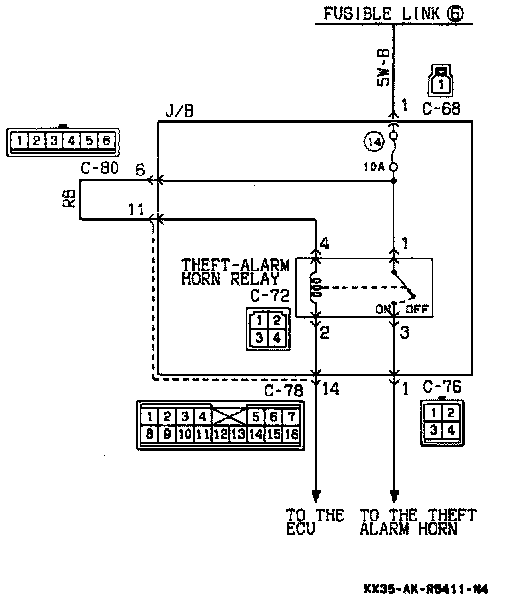

Theft Alarm Horn Relay Power Supply Circuit:

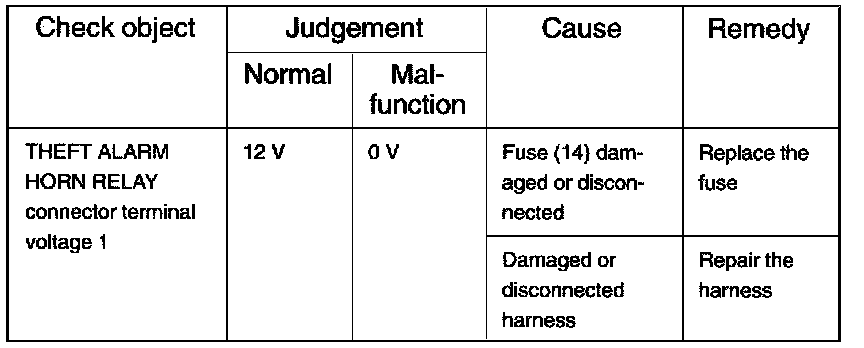

Theft Alarm Horn Relay Power Supply Circuit Continuity Table:

Power voltage is always supplied to theft alarm horn relay.
Checking the horn relay power-supply circuit. (Disconnect the theft alarm horn relay)
