Whip Antenna/Antenna Feeder Cable/Amplifier

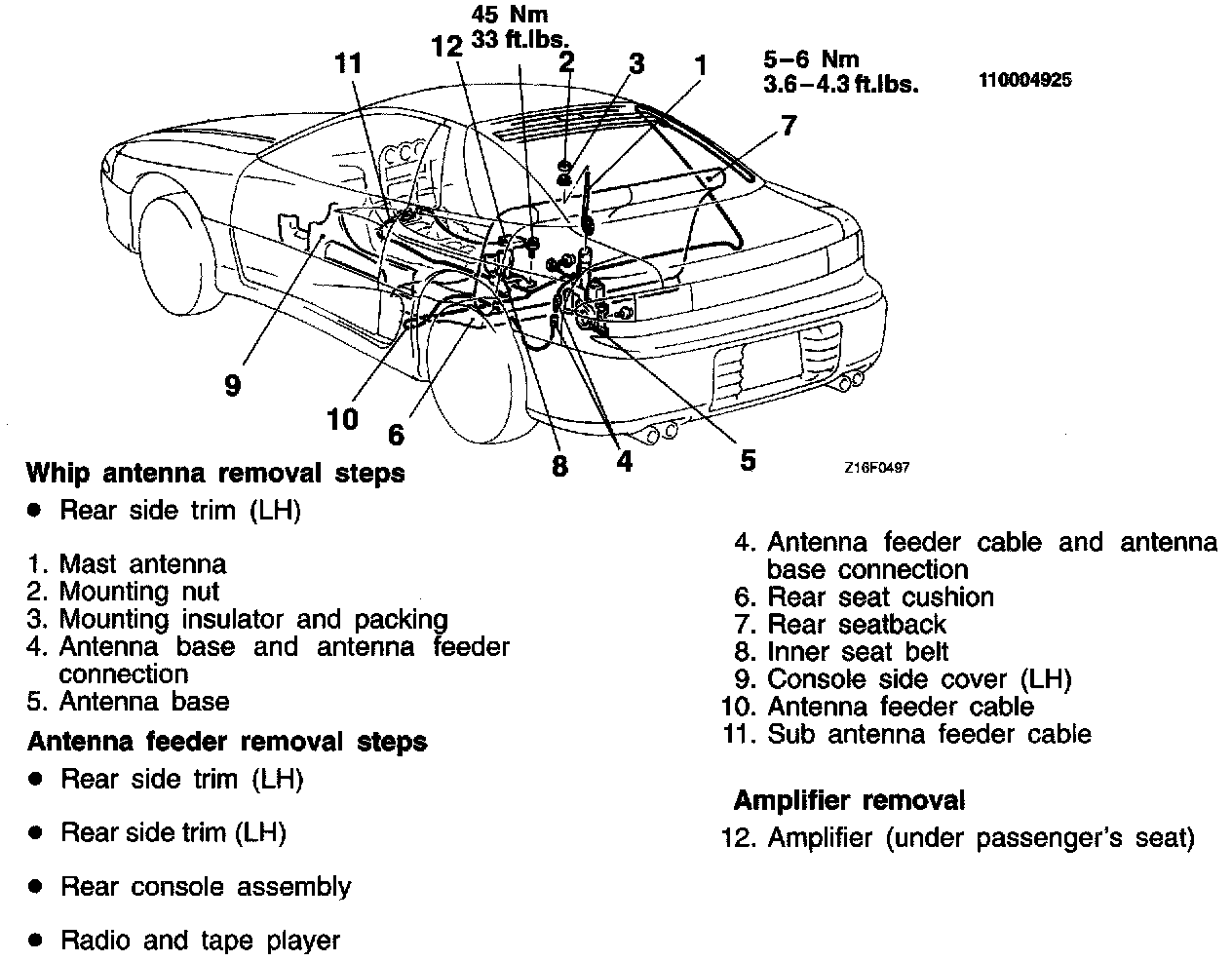

Whip Antenna/Antenna Feeder Cable/Amplifier - Removal And Installation:

REMOVE
Motor Antenna
- Rear side trim (LH)
1. Mast antenna
2. Mounting nut
3. Mounting insulator and packing
4. Antenna feeder cable and motor antenna connection
5. Antenna base


Antenna Feeder Cable
- Rear side trim (LH)
- Rear console assembly
- Radio and tape player
4. Antenna feeder cable and motor antenna connection
6. Rear seat cushion
7. Rear seatback
8. Inner seat belt
9. Console side cover (LH)
10. Antenna fedder cable
11. Sub antenna feeder cable

Amplifier
12. Amplifier (Under passenger's seat)



INSTALL
Motor Antenna
1. Antenna base
2. Antenna feeder cable and motor antenna connection
3. Mounting insulator and packing
4. Mounting nut
5. Mast antenna
- Rear side trim (LH)

Antenna Feeder Cable
4. Sub antenna feeder cable
6. Antenna fedder cable
7. Console side cover (LH)
8. Inner seat belt
9. Rear seatback
10. Rear seat cushion
11. Antenna feeder cable and motor antenna connection
- Radio and tape player
- Rear console assembly
- Rear side trim (LH)

Amplifier
12. Amplifier (Under passenger's seat)
