Antenna Pole Replacement

Replacement Of Antenna Pole <Vehicle With Motor Antenna>: Step (1):

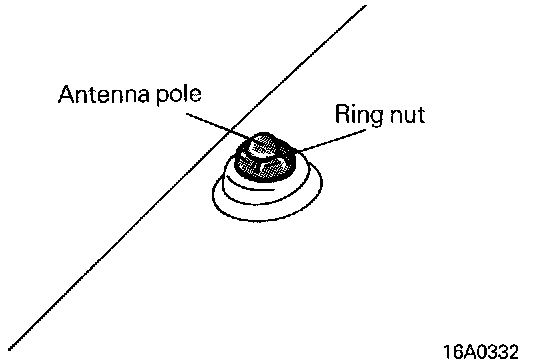

1. Remove the ring nut.

Replacement Of Antenna Pole <Vehicle With Motor Antenna>: Step (2):

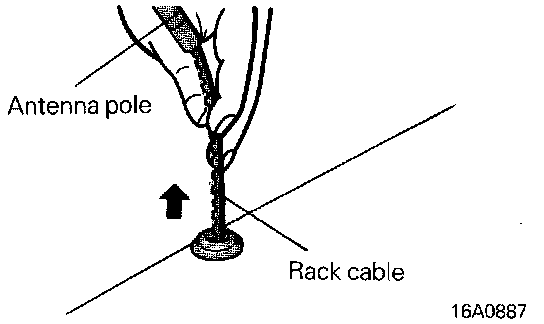

2. Set the radio switch to ON. After the antenna pole has extended, remove the antenna pole and rack cable as an assembly.

Antenna Pole Replacement:

3. Extend the antenna pole up to its farthest point.

NOTE: If the motor end of the rack cable is bent, straighten it.

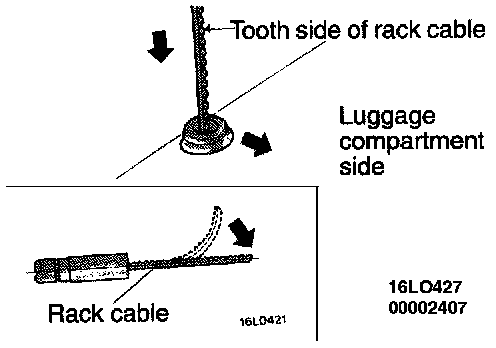

4. Force the rack cable into the motor assembly with the tooth side of the rack cable toward the luggage compartment.

Replacement Of Antenna Pole <Vehicle With Motor Antenna>: Step (5-8):

5. Turn the tooth side of the rack cable toward the rear of the vehicle (90° clockwise) to bring the rack cable into mesh with the motor gear.
6. Lightly pull the rack cable. If it comes out without resistance, it means that the rack cable is not in mesh with the motor gear. Recheck that the rack cable end is not bent before repeating the above-mentioned steps (2) and (3).
7. With the antenna pole upright and the radio switch at OFF, take up the rack cable. As the rack cable is taken up, insert the antenna pole toward the motor antenna.
8. After the ring nut has been tightened, set the radio switch to ON and OFF to check the operation of the antenna pole.
