Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Antenna Motor >> Testing and Inspection >> Troubleshooting Chart E >> Chart E-2

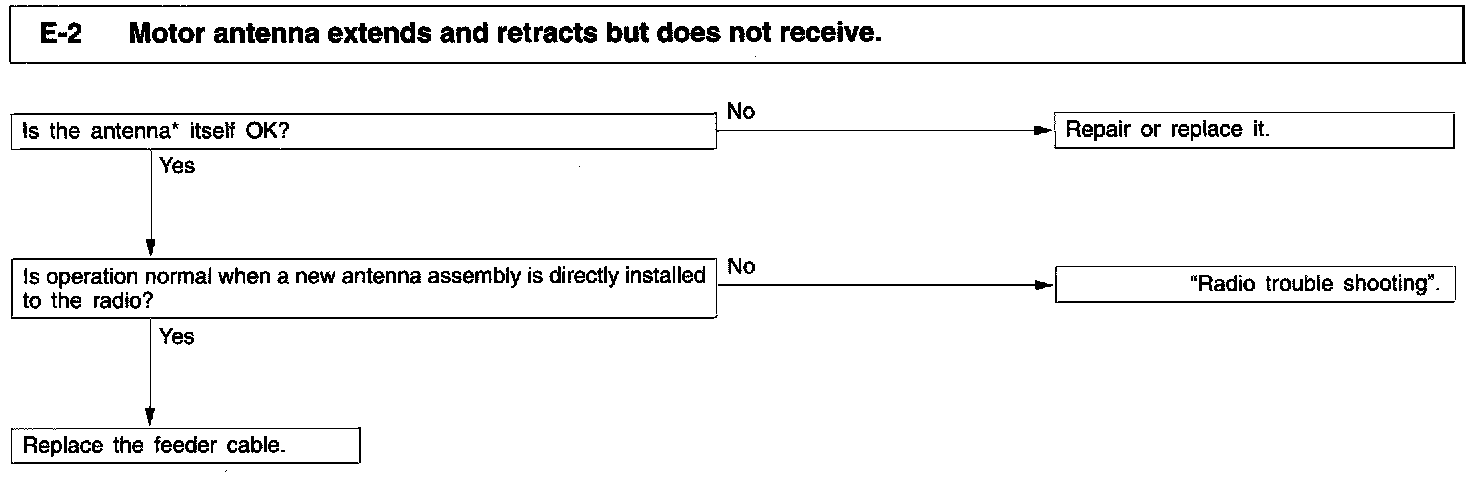

Chart E-2

Chart E-2:




Motor antenna extends and retracts but does not receive.
