Inspection of Antenna Motor Control Unit

Inspection Of Motor Antenna Control Unit <Vehicles With Motor Antenna>:

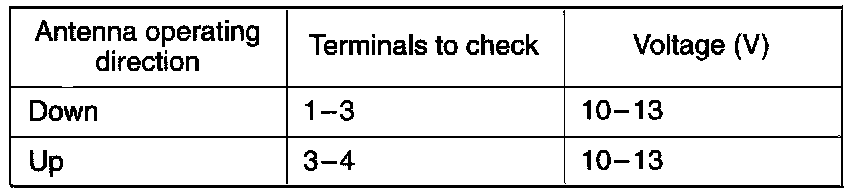

Motor Antenna Control Unit Inspection Continuity Table:

1. Connect the harness connector to the motor antenna (Body harness).
2. Disconnect the antenna motor connector.

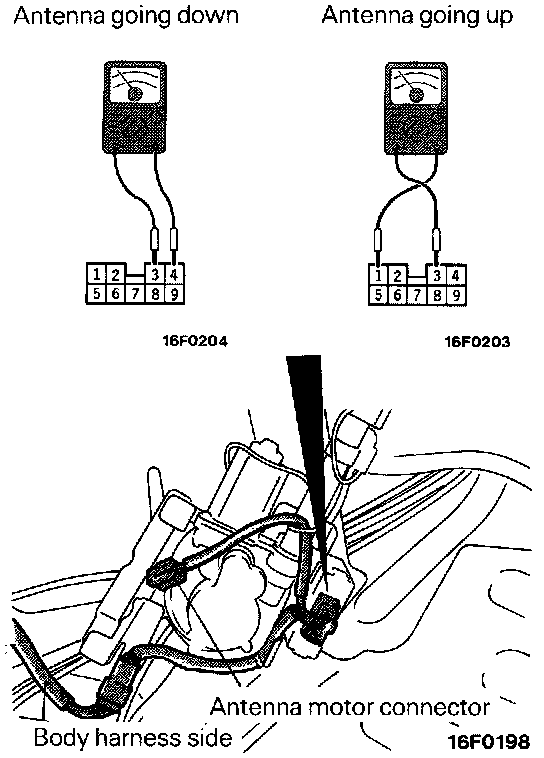

3. With the ignition switch in the ACC or ON position, operate the radio switch and check the voltage between the terminals during the period when the antenna is going up or going down.
