Inspection of Antenna Motor

Inspection Of Antenna Motor <Vehicles With Motor Antenna>:

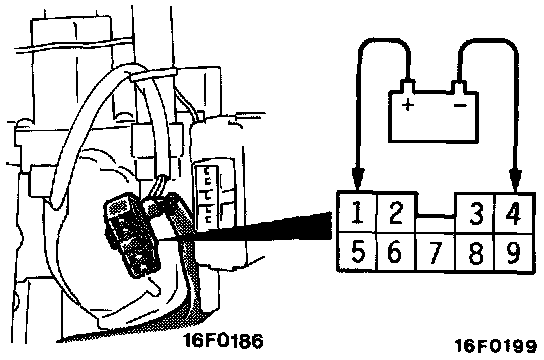

Disconnect the motor antenna control unit connector, connect the positive terminal of the power supply to terminal (1) and connect the negative terminal to terminal (4) to check that the antenna goes up, and that when the connections are reversed, the antenna goes down.
