Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> Fig.7 Anti-Dive Control Only Stops

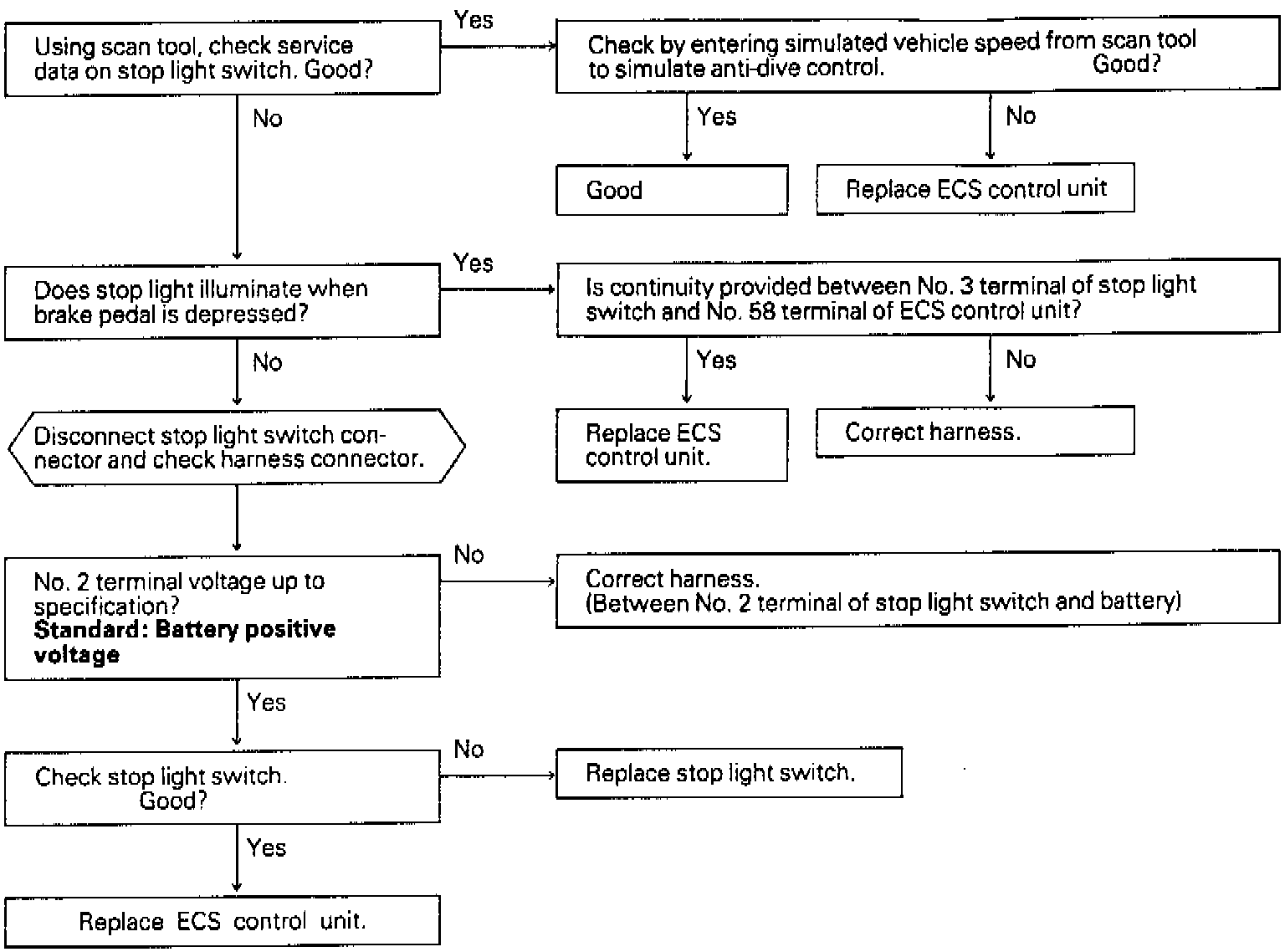

Fig.7 Anti-Dive Control Only Stops

Fig.7 Anti-Dive Control Only Stops:
