9A Diagnosing Code 34- "Connector Unlocked"

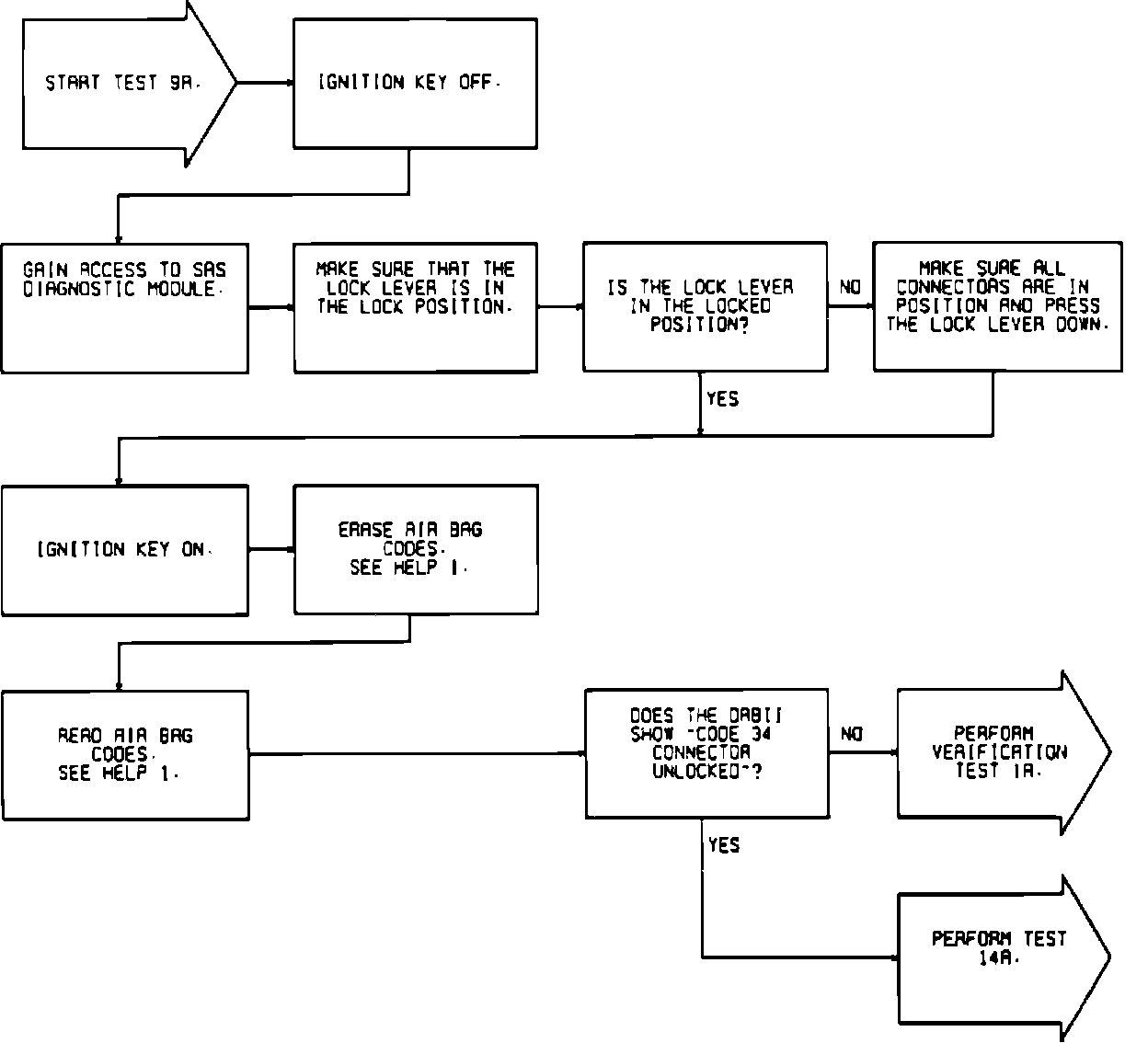

Fig. 69 Test 9A, Diagnosing Code 34 ``Connector Unlocked.'':
