Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 8A Diagnosing Code 33- "Cranking Trouble"

8A Diagnosing Code 33- "Cranking Trouble"

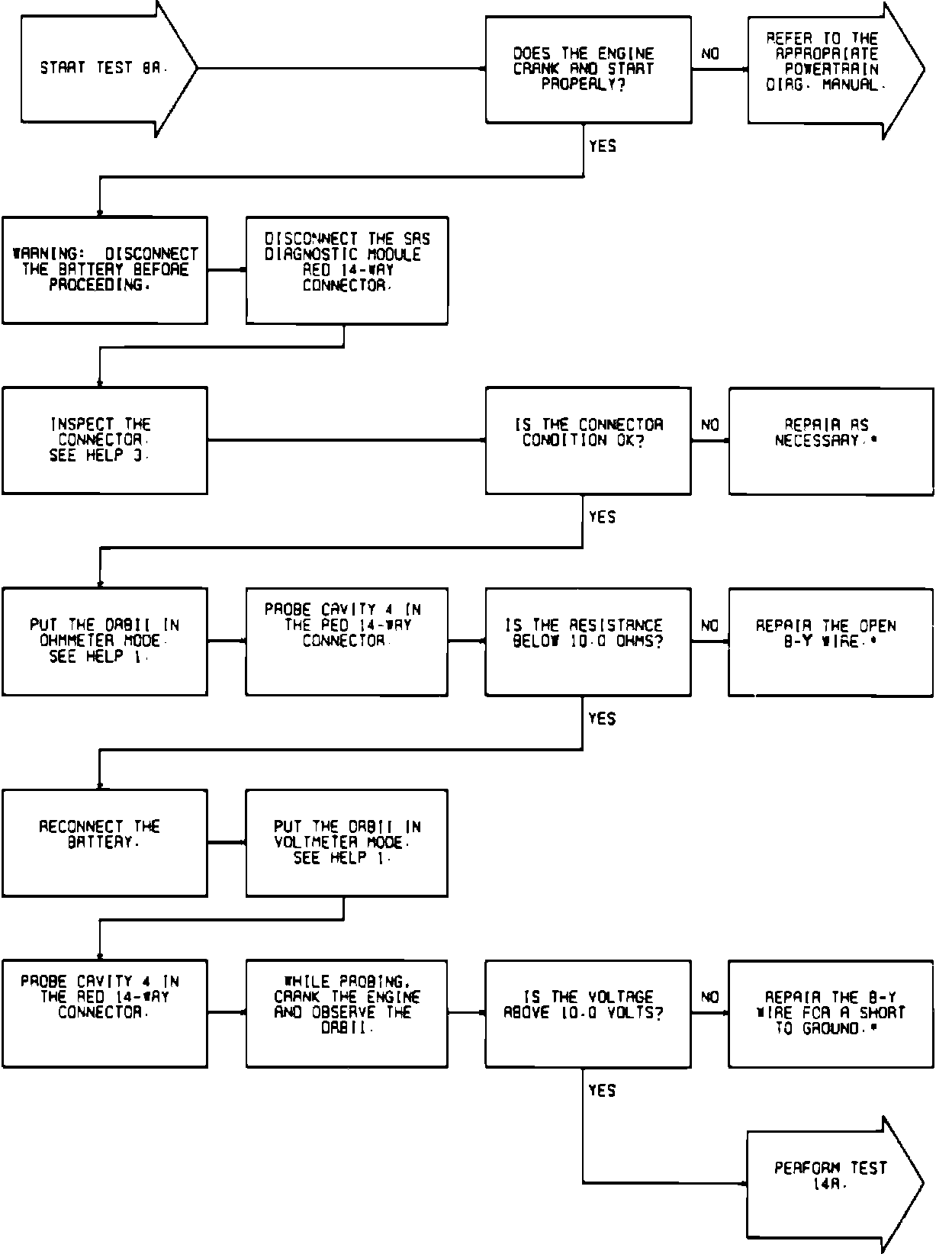

Fig. 68 Test 8A, Diagnosing Code 33 ``Cranking Trouble.'':
