6A Diagnosing Code 21- "Squib Trouble 1"
6A Diagnosing Code 21- "Squib Trouble 1"
Fig. 66 Test 6A, Diagnosing Code 21 ``Squib Trouble 1'' (Part 1 Of 2):

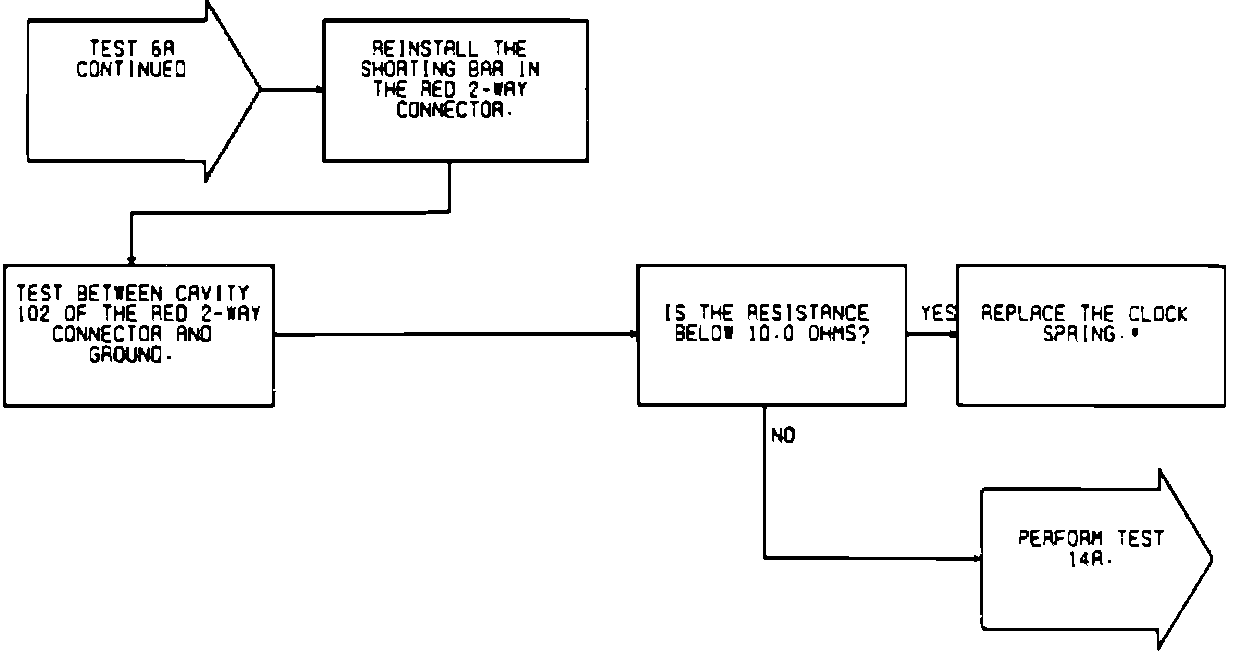

Fig. 66 Test 6A, Diagnosing Code 21 ``Squib Trouble 1'' (Part 2 Of 2):
