5A Diagnosing Code 13- "G-Sensor Trouble 3"

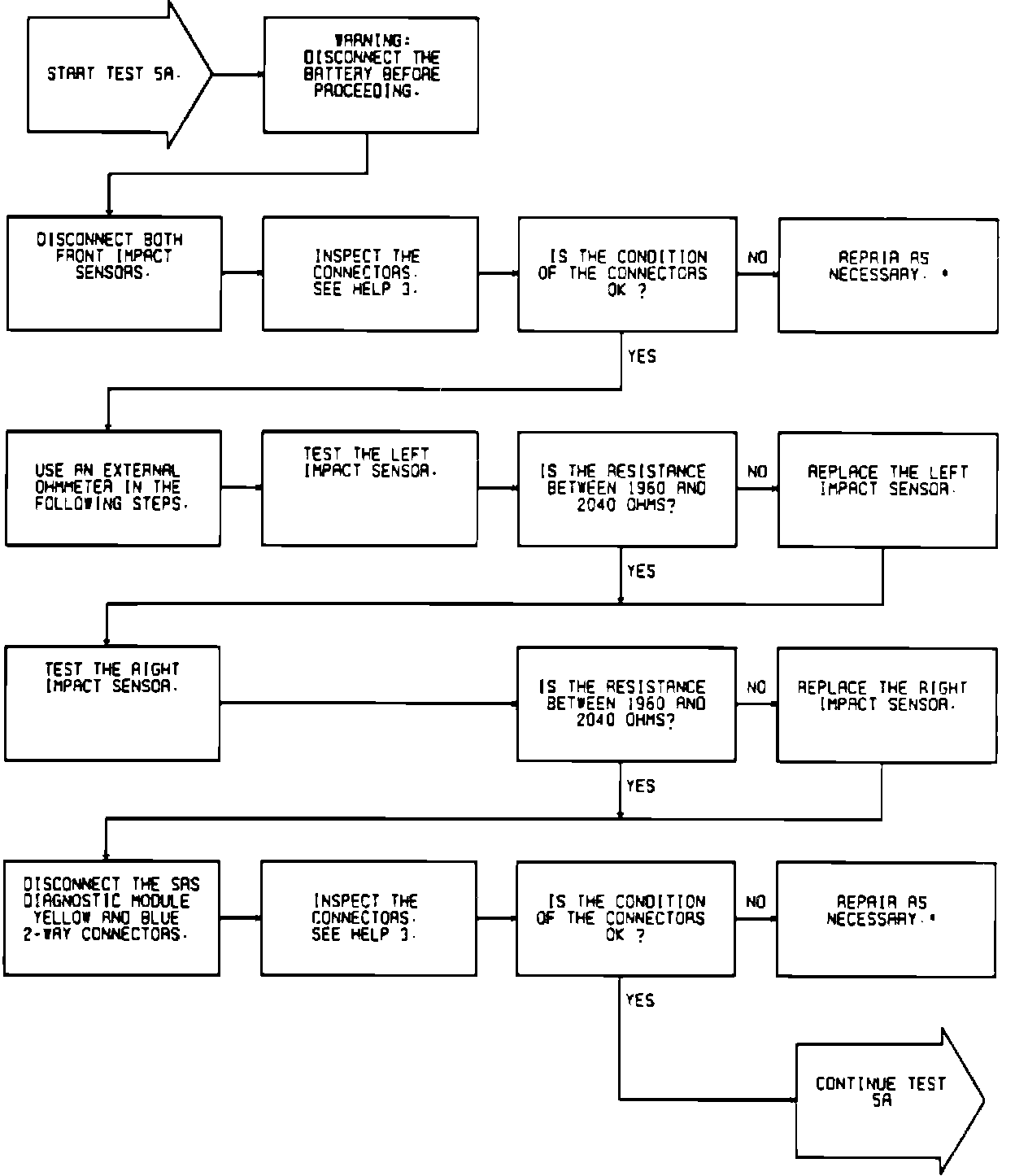

Fig. 65 Test 5A, Diagnosing Code 13 ``G Sensor Trouble 3'' (Part 1 Of 3):

Fig. 65 Test 5A, Diagnosing Code 13 ``G Sensor Trouble 3'' (Part 2 Of 3):

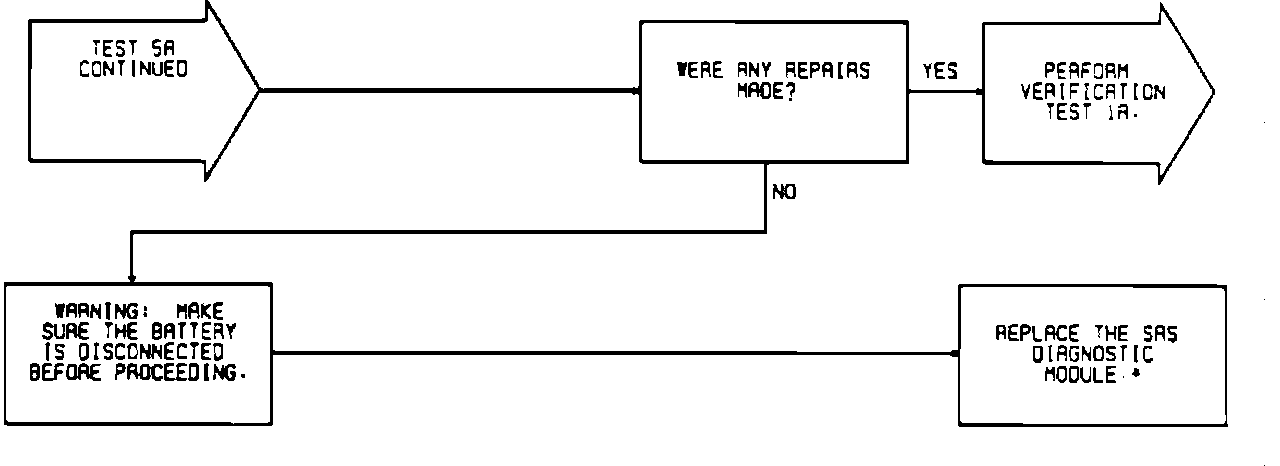

Fig. 65 Test 5A, Diagnosing Code 13 ``G Sensor Trouble 3'' (Part 3 Of 3):
