Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 3A Code 11 G Sensor Trouble

3A Code 11 G Sensor Trouble

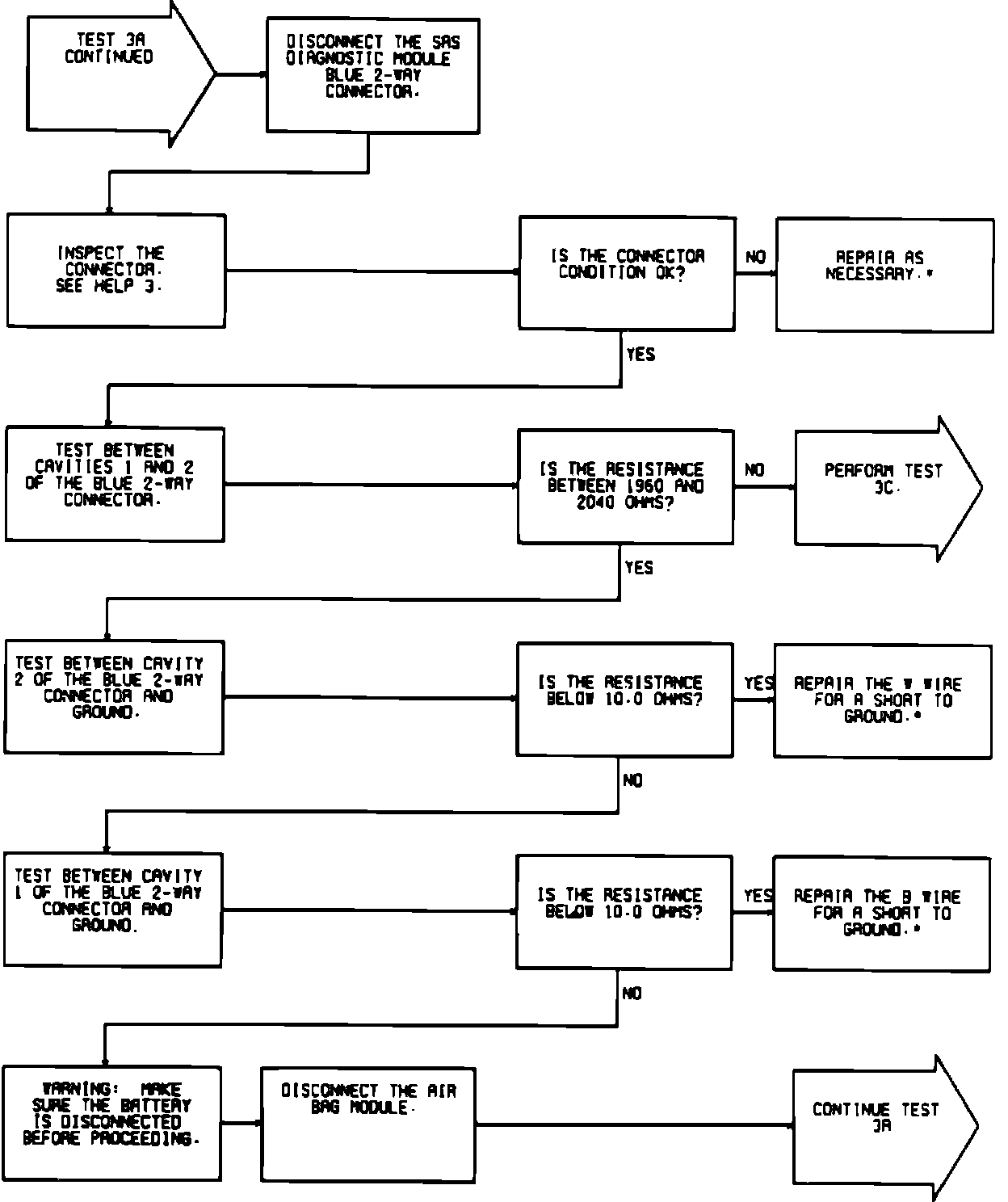

Fig. 61 Test 3A, Diagnosing Code 11, G Sensor Trouble:

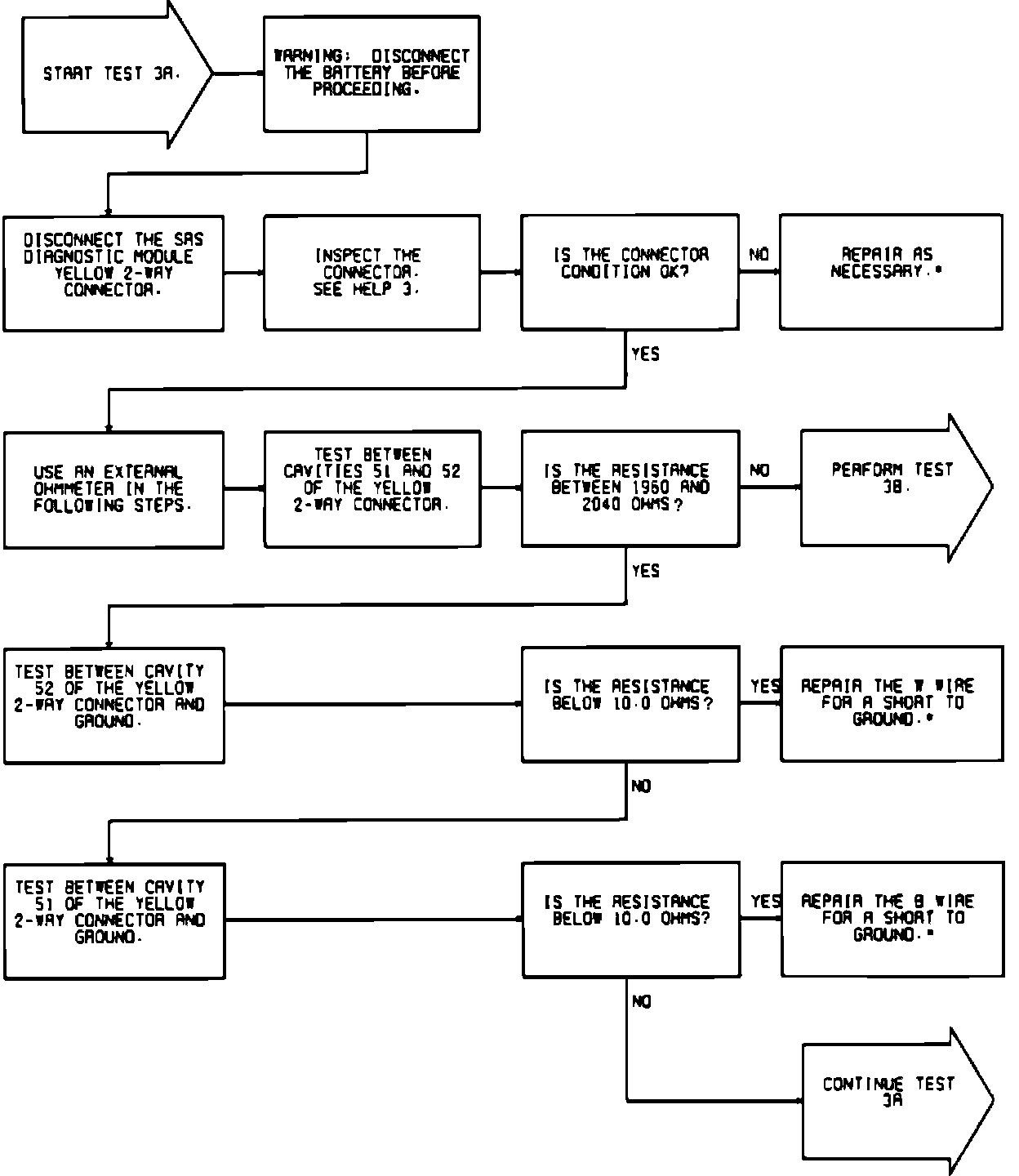

Fig. 61 Test 3A, Diagnosing Code 11 G Sensor Trouble (Part 1 Of 3):



Fig. 61 Test 3A, Diagnosing Code 11 G Sensor Trouble (Part 2 Of 3):
