Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 2A SRS Airbag Codes

2A SRS Airbag Codes

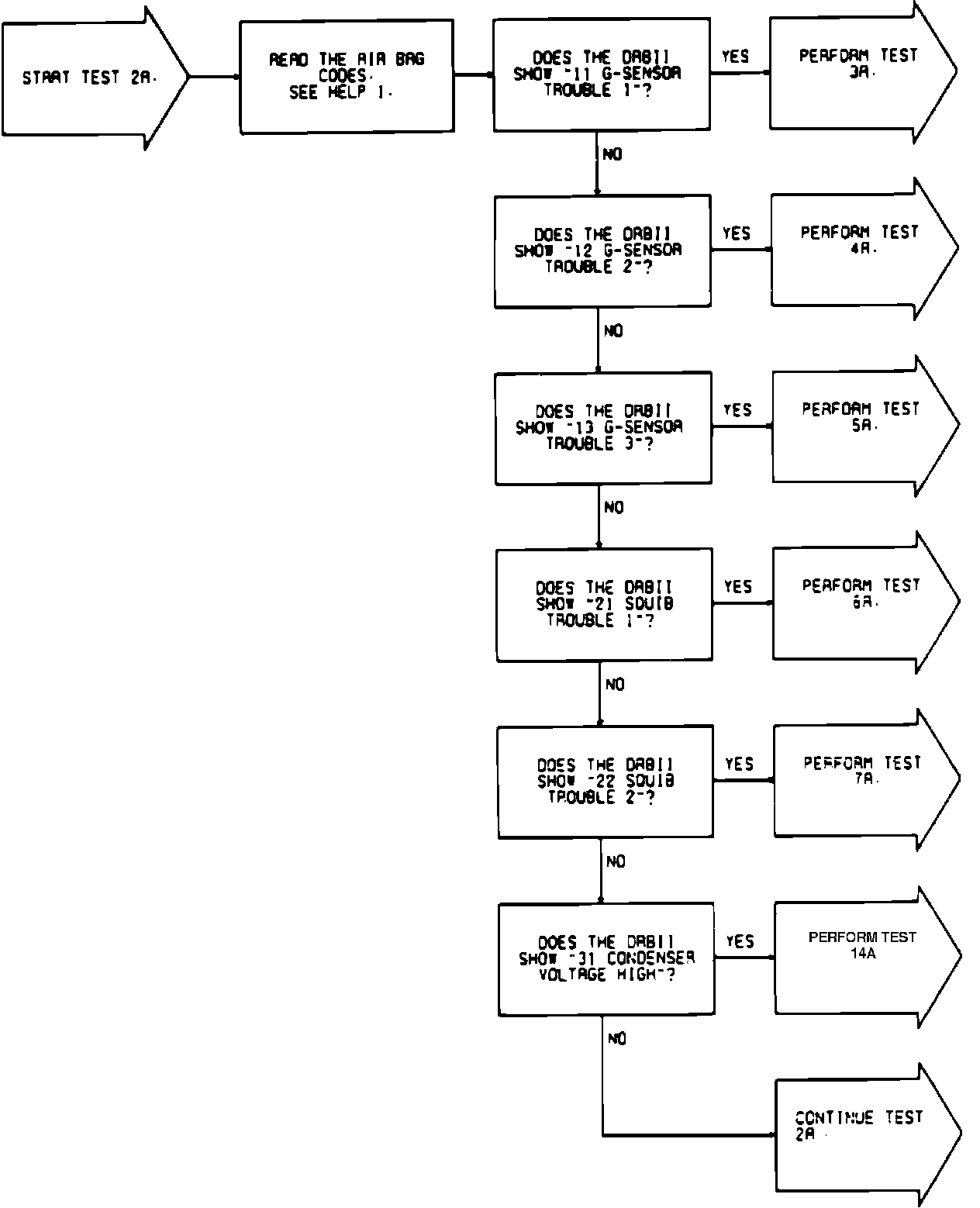

Fig. 60 Test 2A, SRS Airbag Codes (Part 1 Of 3):

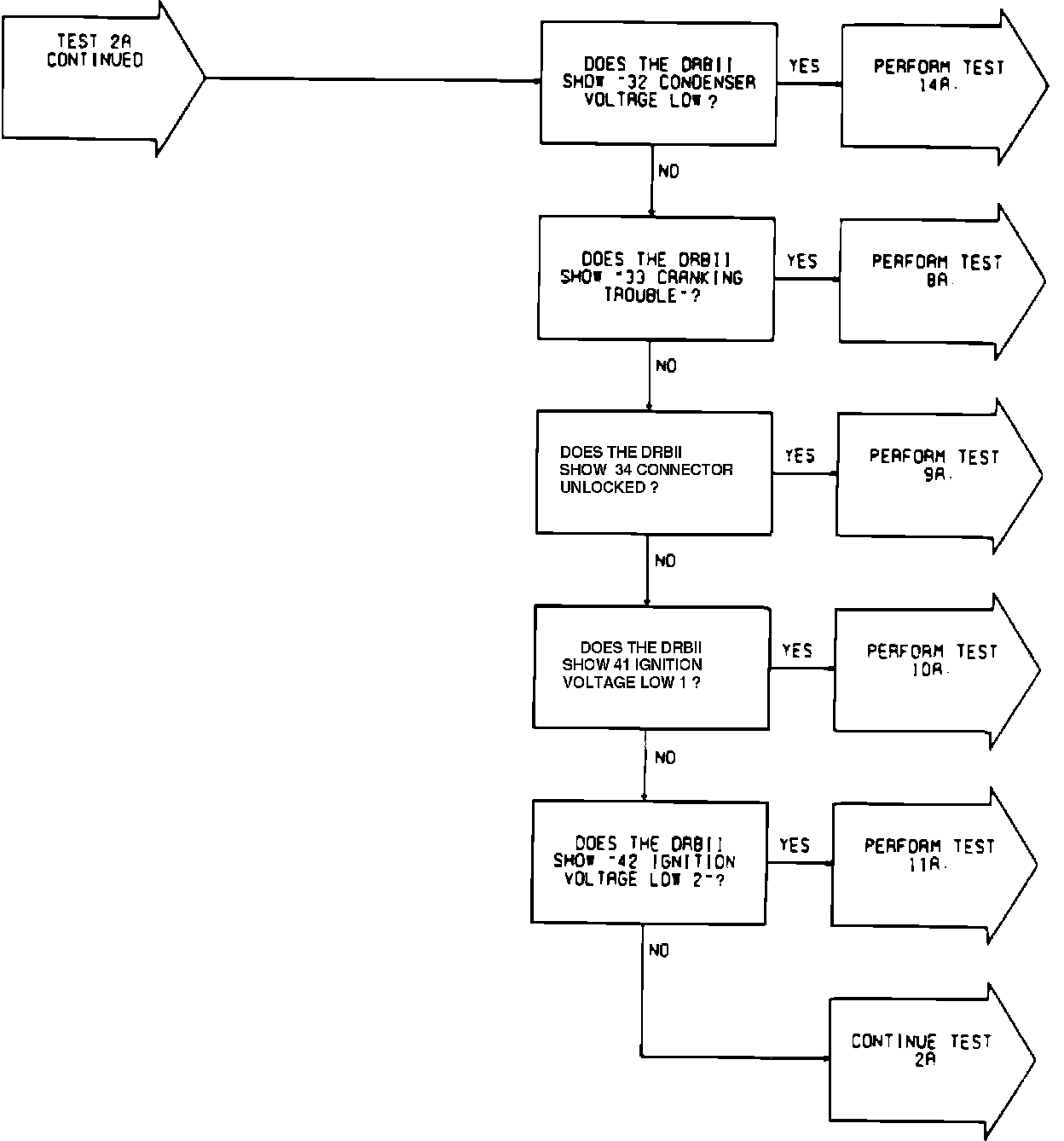

Fig. 60 Test 2A, SRS Airbag Codes (Part 2 Of 3):

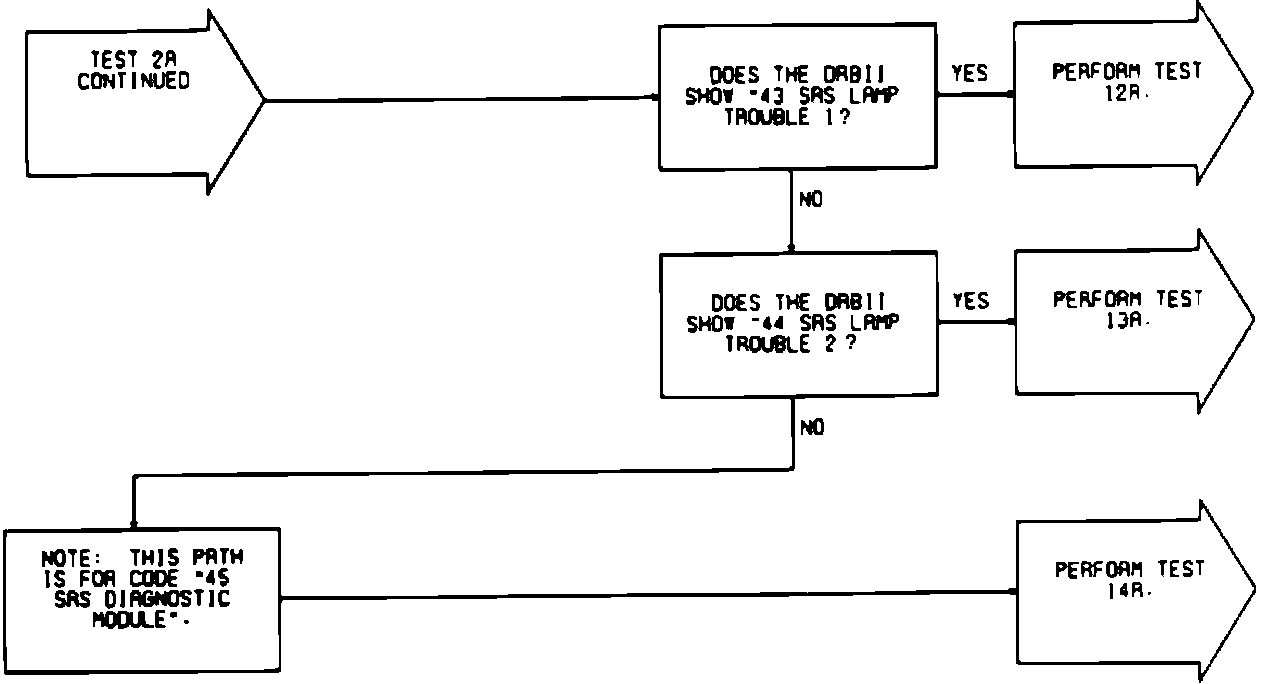

Fig. 60 Test 2A, SRS Airbag Codes (Part 3 Of 3):
