Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 1A System Function

1A System Function

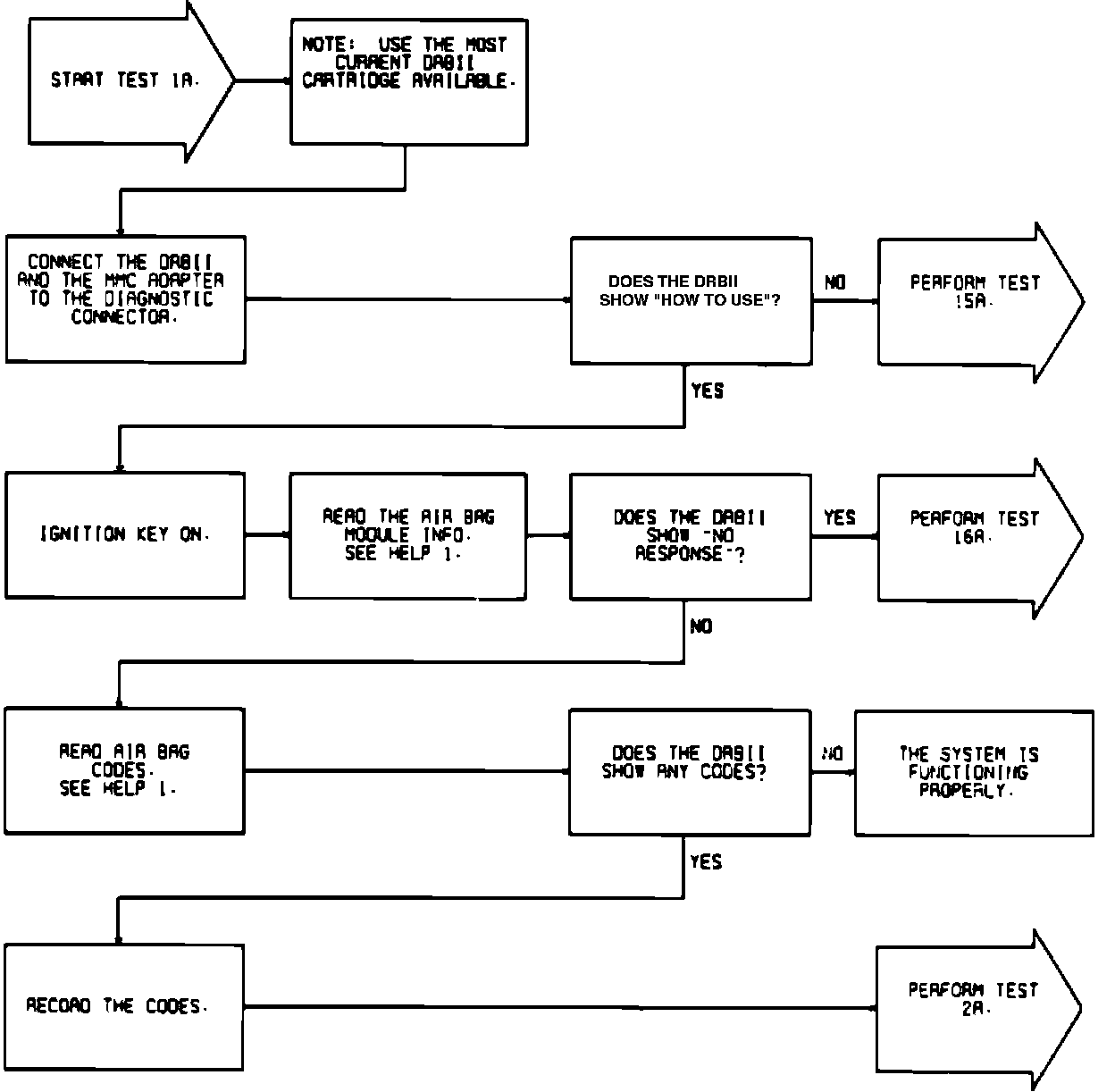

Fig. 59 Test 1A, System Function:
