16C Diagnosing Ignition 1 Input to the SRS Diag. Module

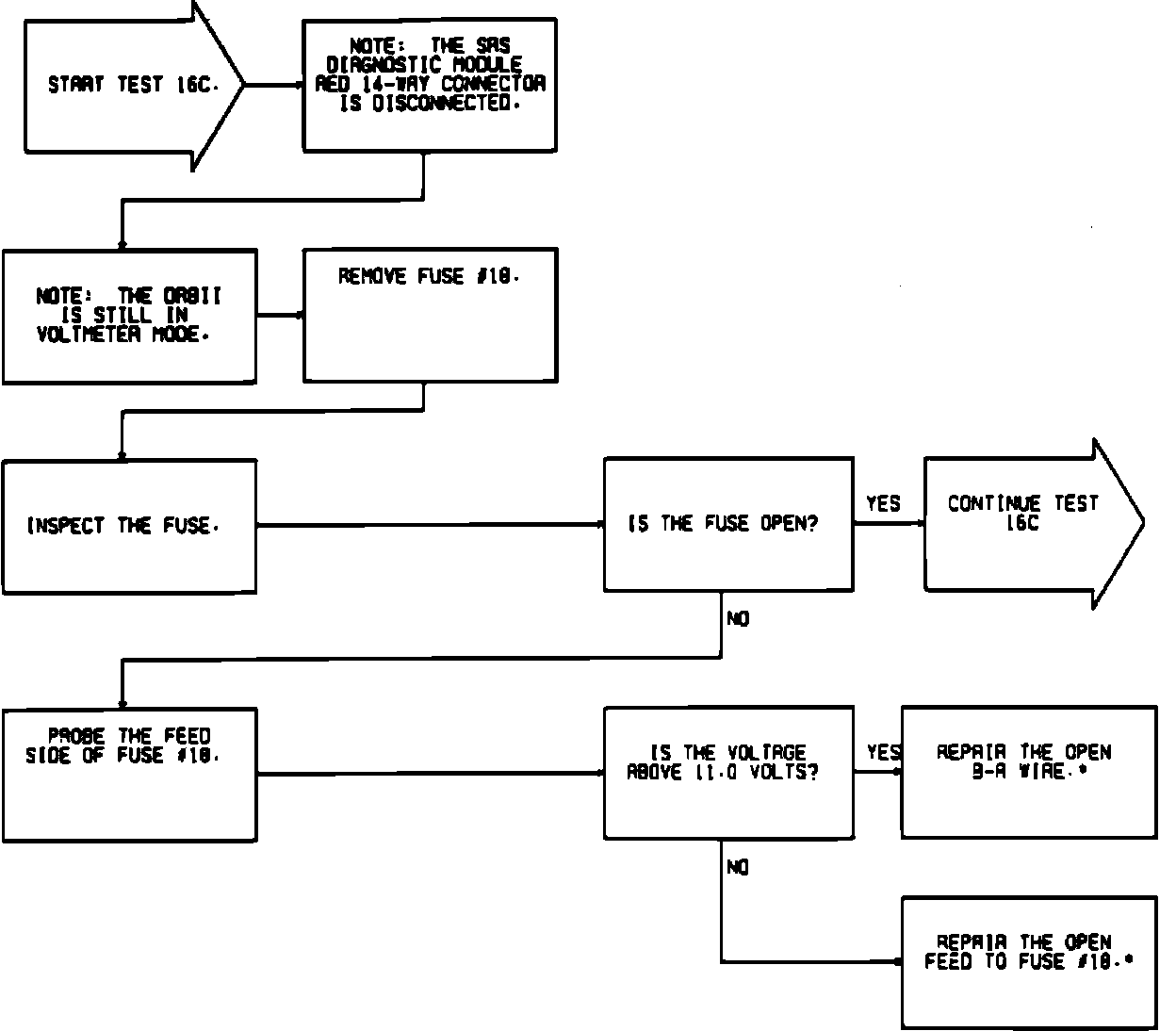

Fig. 83 Test 16C, Diagnosing Ignition 1 Input To SRS Diagnostic Module (Part 1 Of 2):

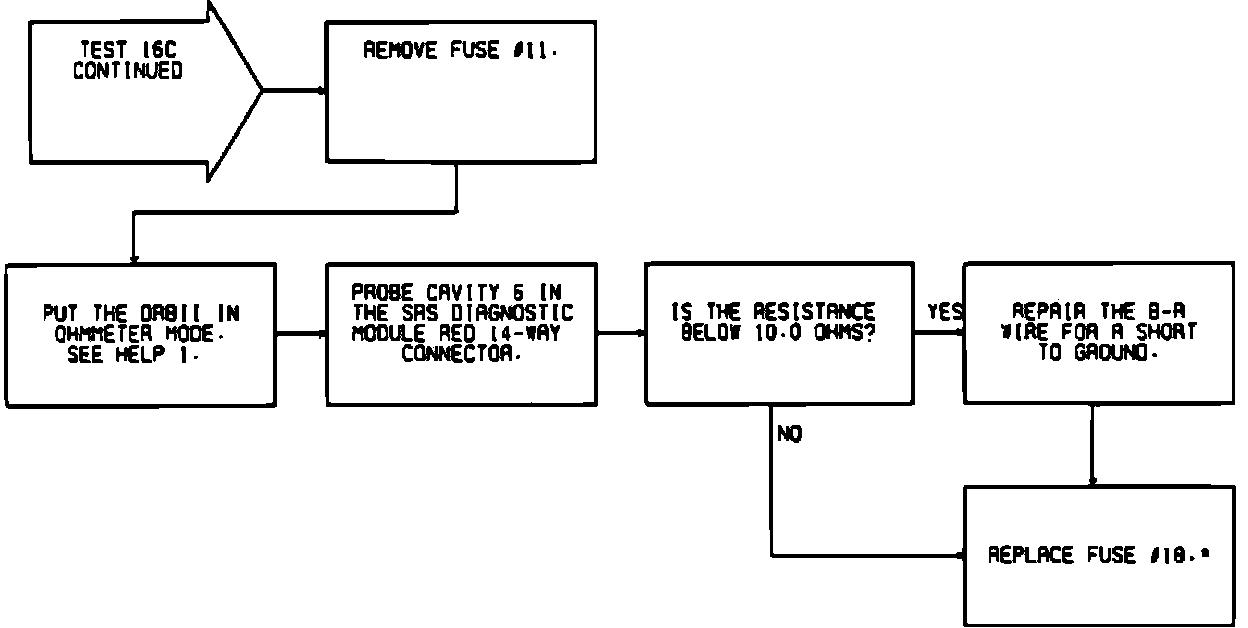

Fig. 83 Test 16C, Diagnosing Ignition 1 Input To SRS Diagnostic Module (Part 2 Of 2):
