16B Diagnosing Ignition Input to the SRS Diagnostic Module

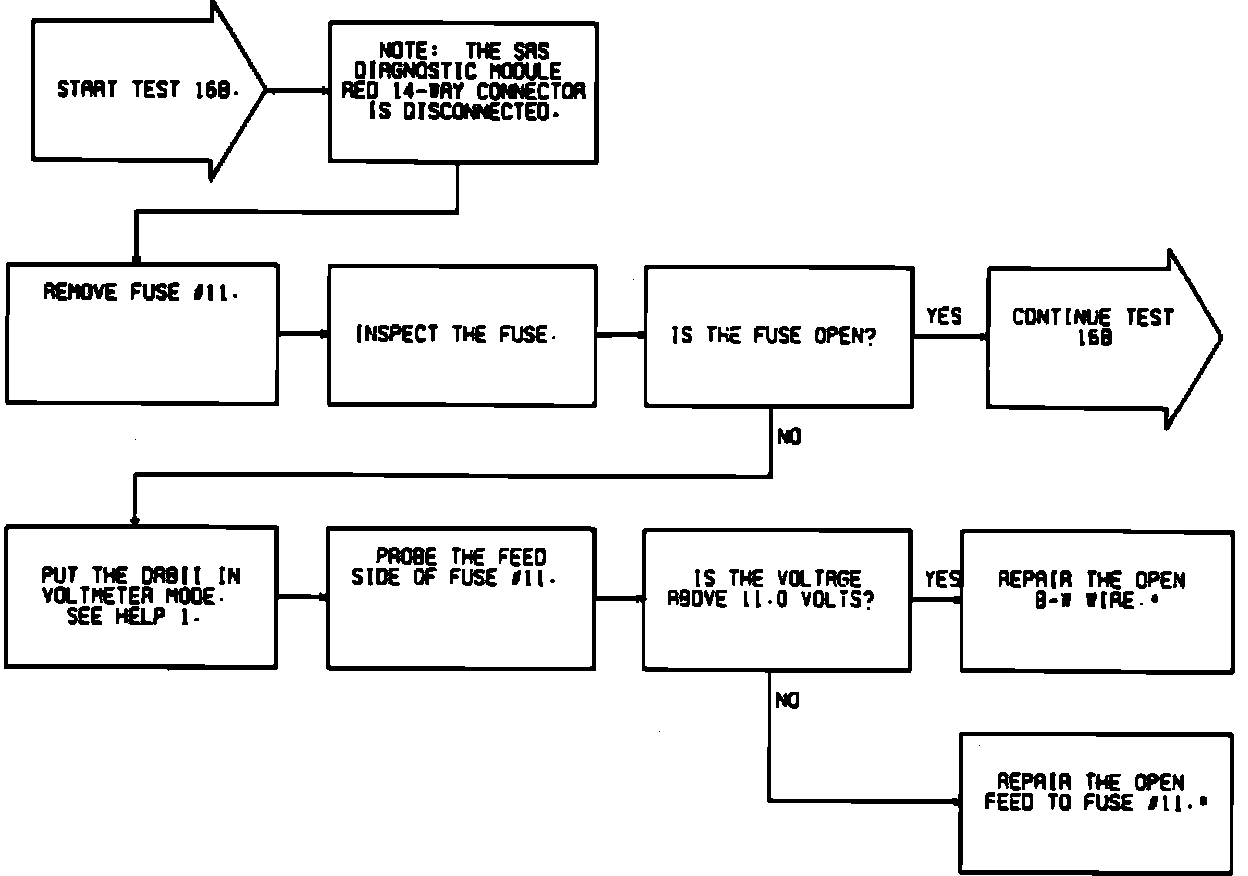

Fig. 82 Test 16B, Diagnosing Ignition Input To SRS Diagnostic Module (Part 1 Of 2):

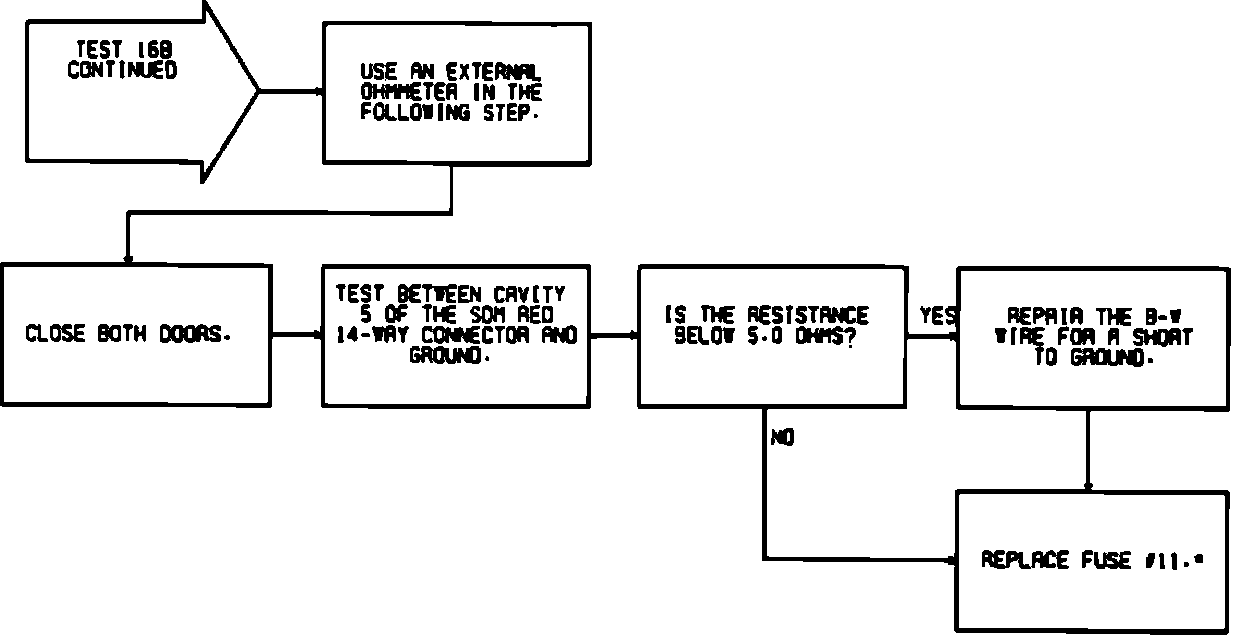

Fig. 82 Test 16B, Diagnosing Ignition Input To SRS Diagnostic Module (Part 2 Of 2):
