Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 16A Diagnosing A "No Response" Message on the DRBII

16A Diagnosing A "No Response" Message on the DRBII

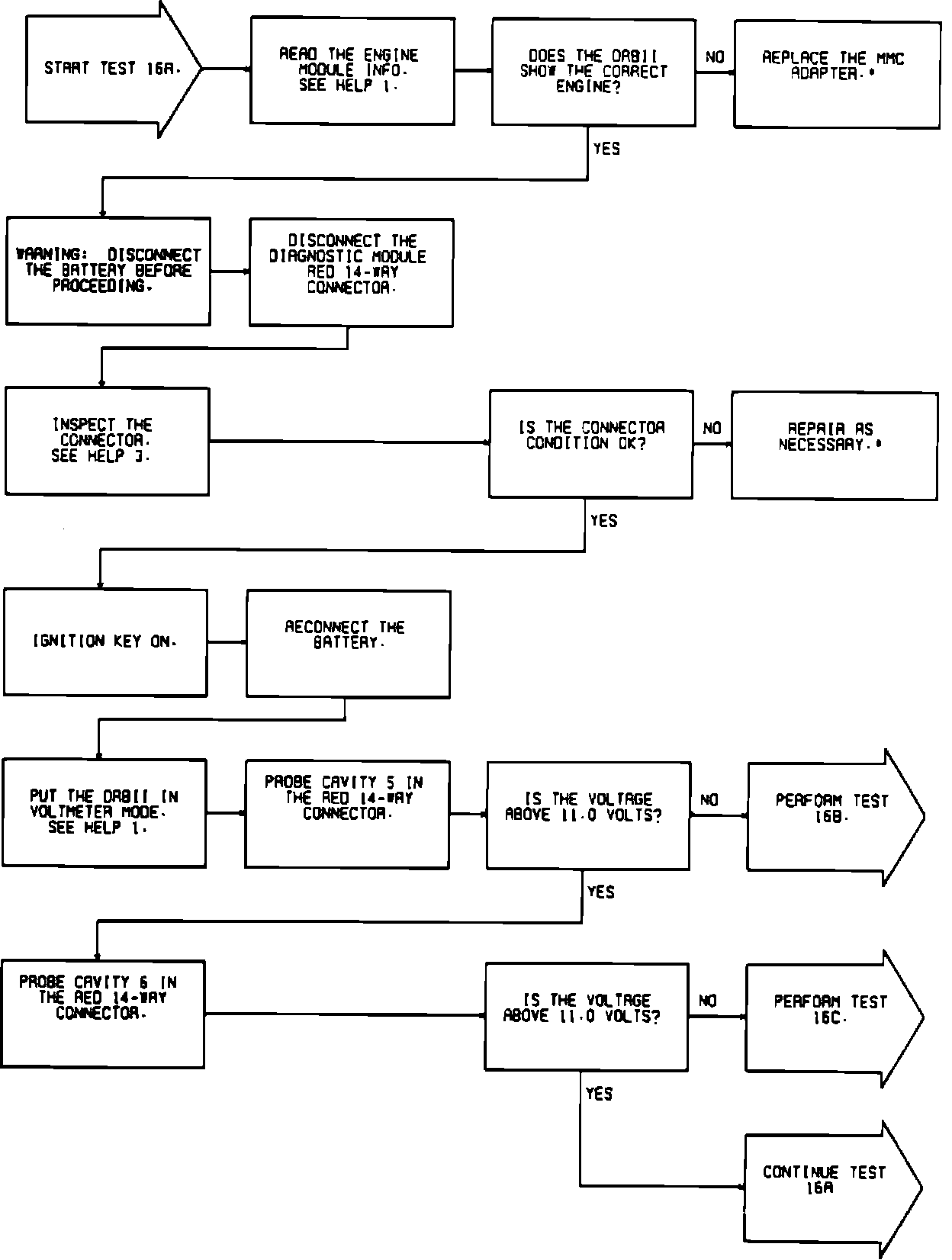

Fig. 81 Test 16A, Diagnosing ``No Response '' Message On DRBII (Part 1 Of 2):

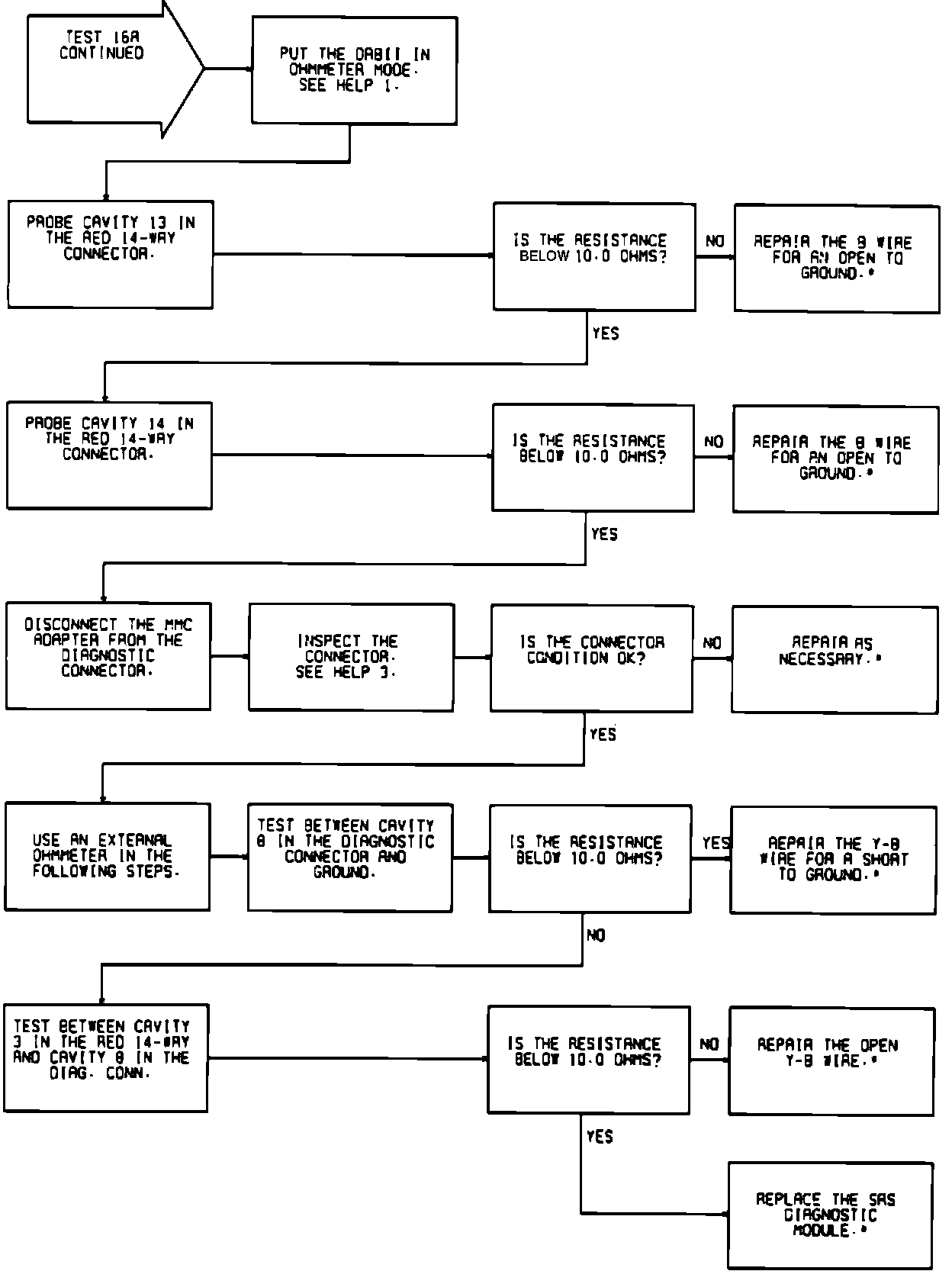

Fig. 81 Test 16A, Diagnosing ``No Response '' Message On DRBII (Part 2 Of 2):
