15B Diagnosing Blank Screen on the DRBII
15B Diagnosing Blank Screen on the DRBII

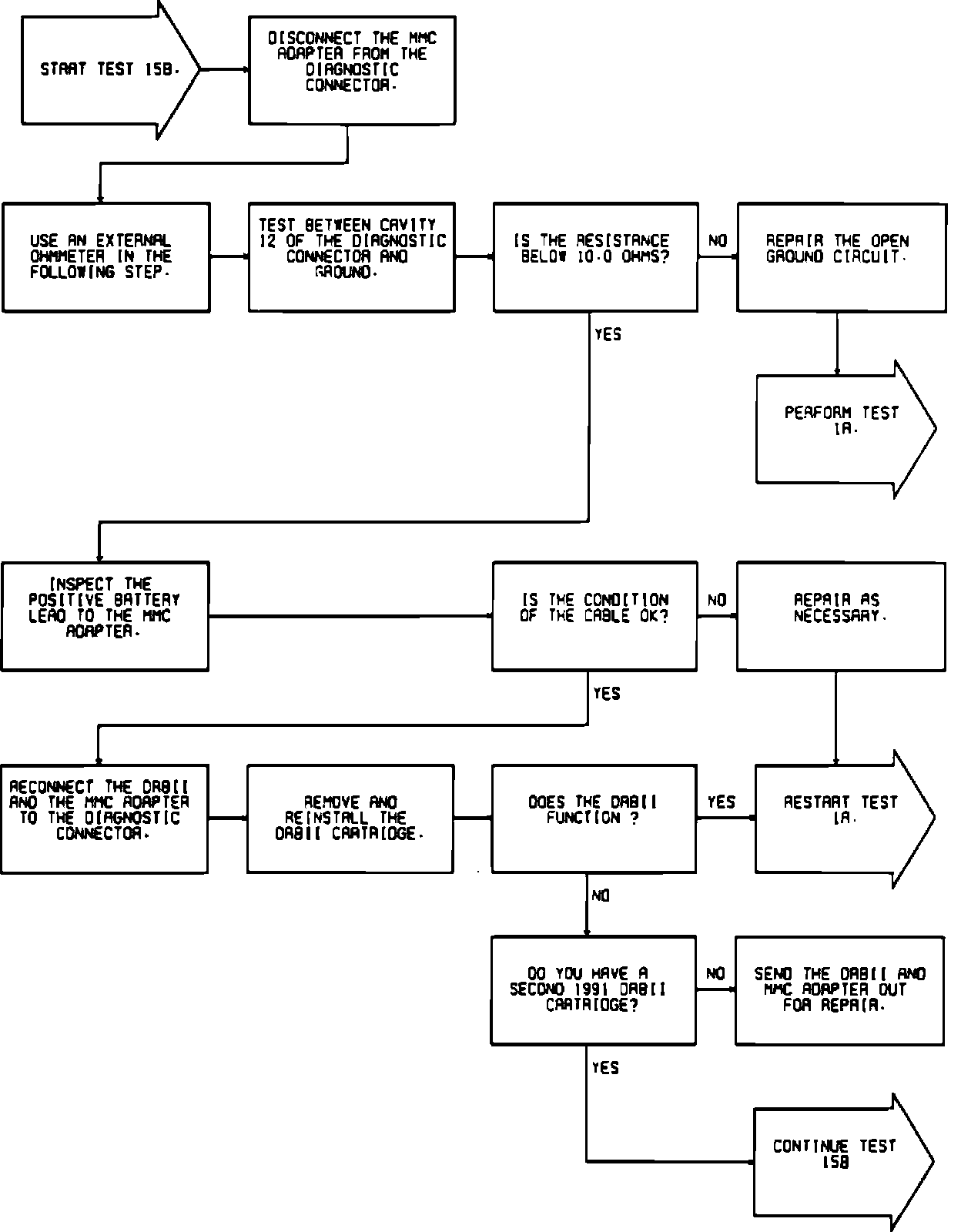

Fig. 78 Test 15B, Diagnosing Blank Screen On DRBII (Part 1 Of 2):

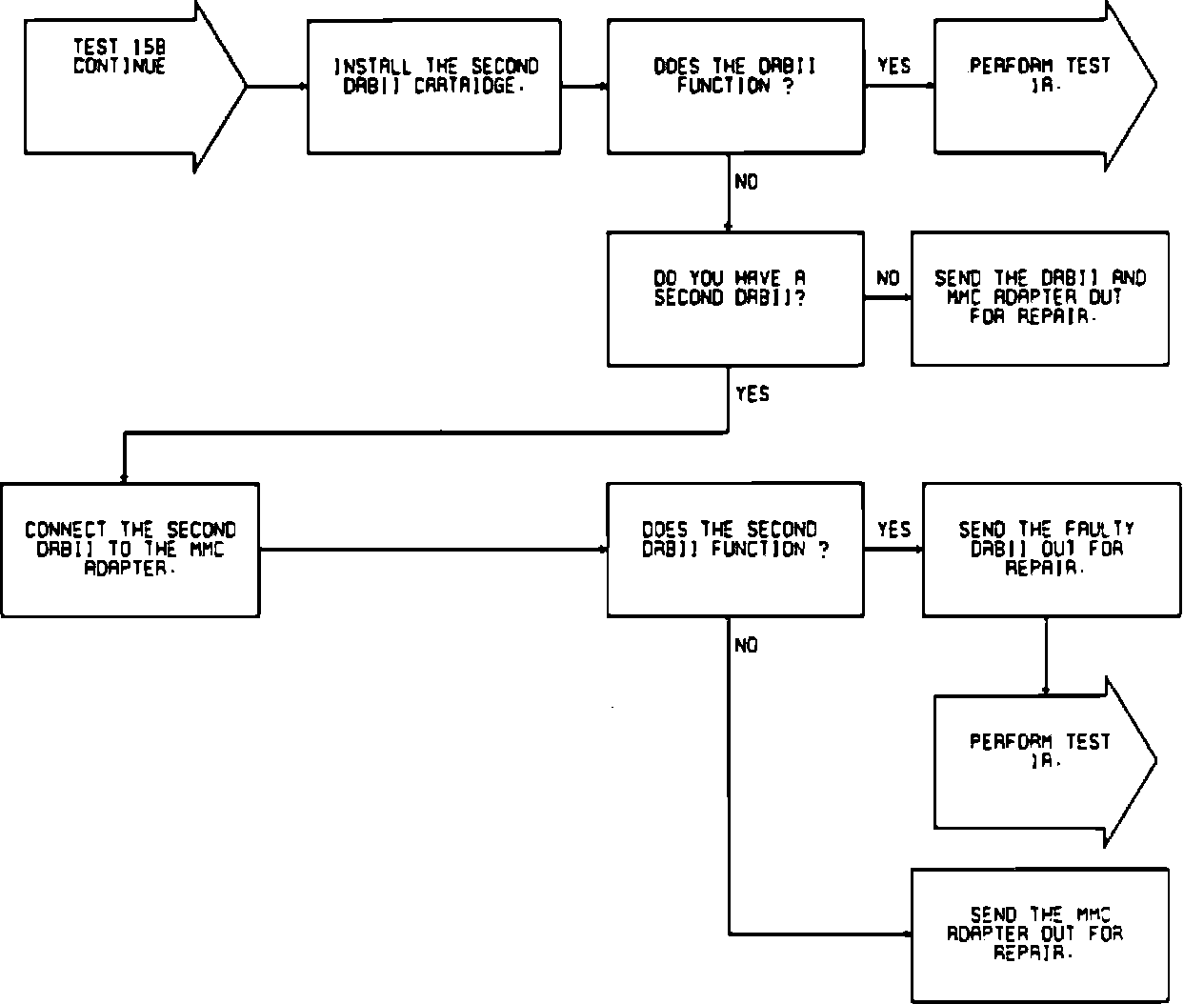

Fig. 78 Test 15B, Diagnosing Blank Screen On DRBII (Part 2 Of 2):
