Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 13A Diagnosing Code 44- "SRS Lamp Trouble 2"

13A Diagnosing Code 44- "SRS Lamp Trouble 2"

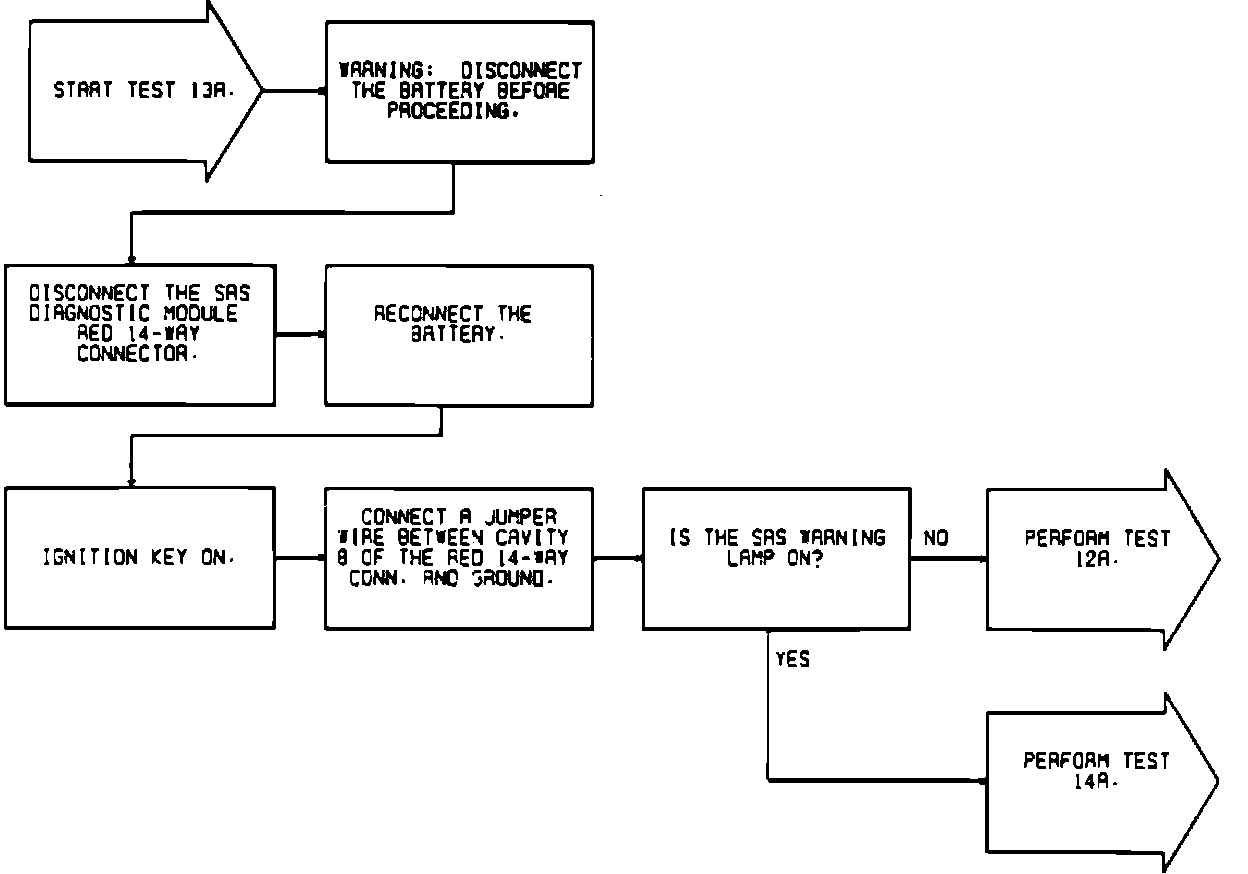

Fig. 75 Test 13A, Diagnosing Code 44 ``SRS Lamp Trouble 2.'':
