12C Backup SRS Warning Lamp Circuit
12C Backup SRS Warning Lamp Circuit

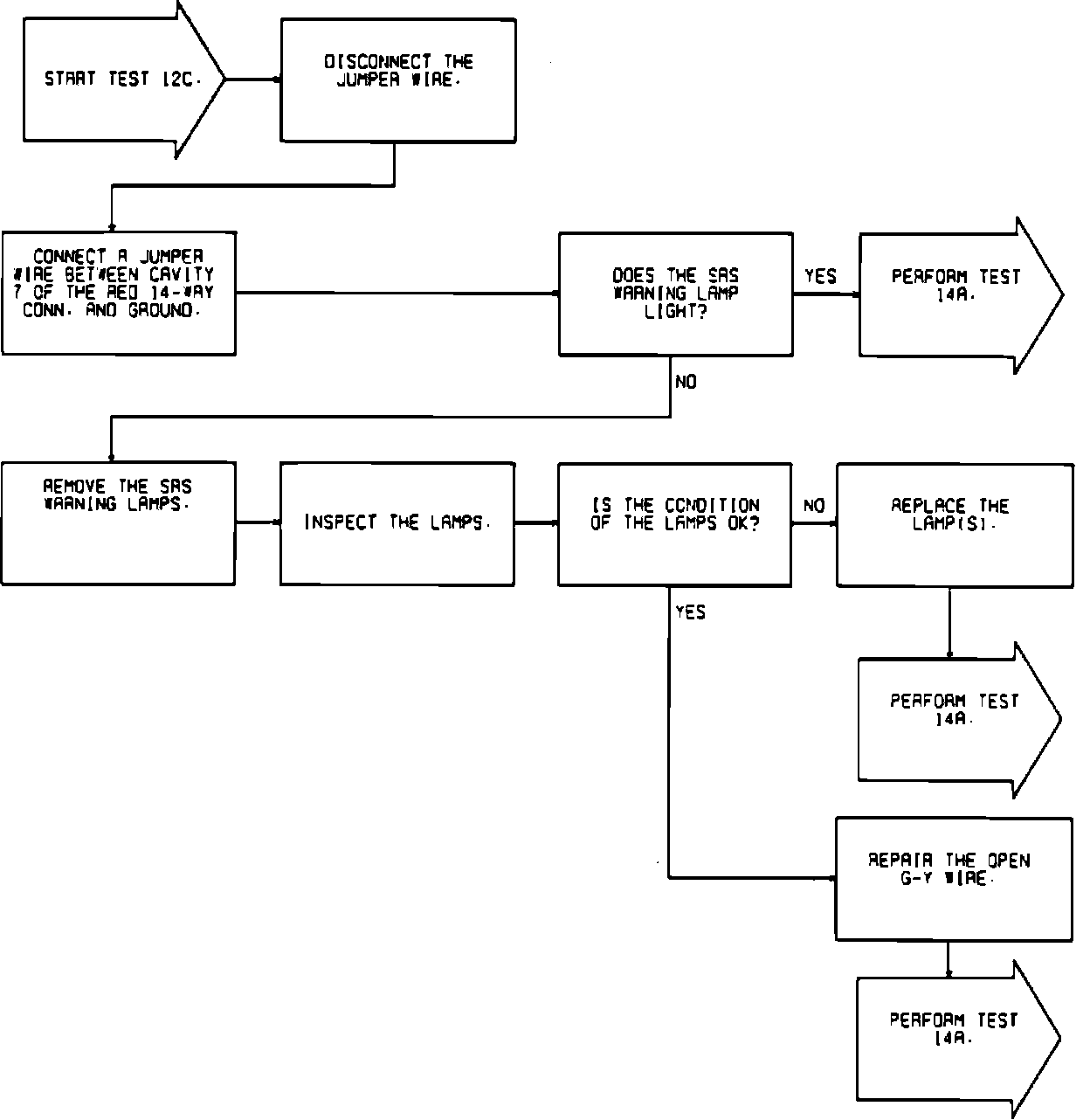

Fig. 74 Test 12C, Testing Backup SRS Warning Lamp Circuit:
