Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 12B Diagnosing Code 43- "SRS Lamp on Constant"

12B Diagnosing Code 43- "SRS Lamp on Constant"

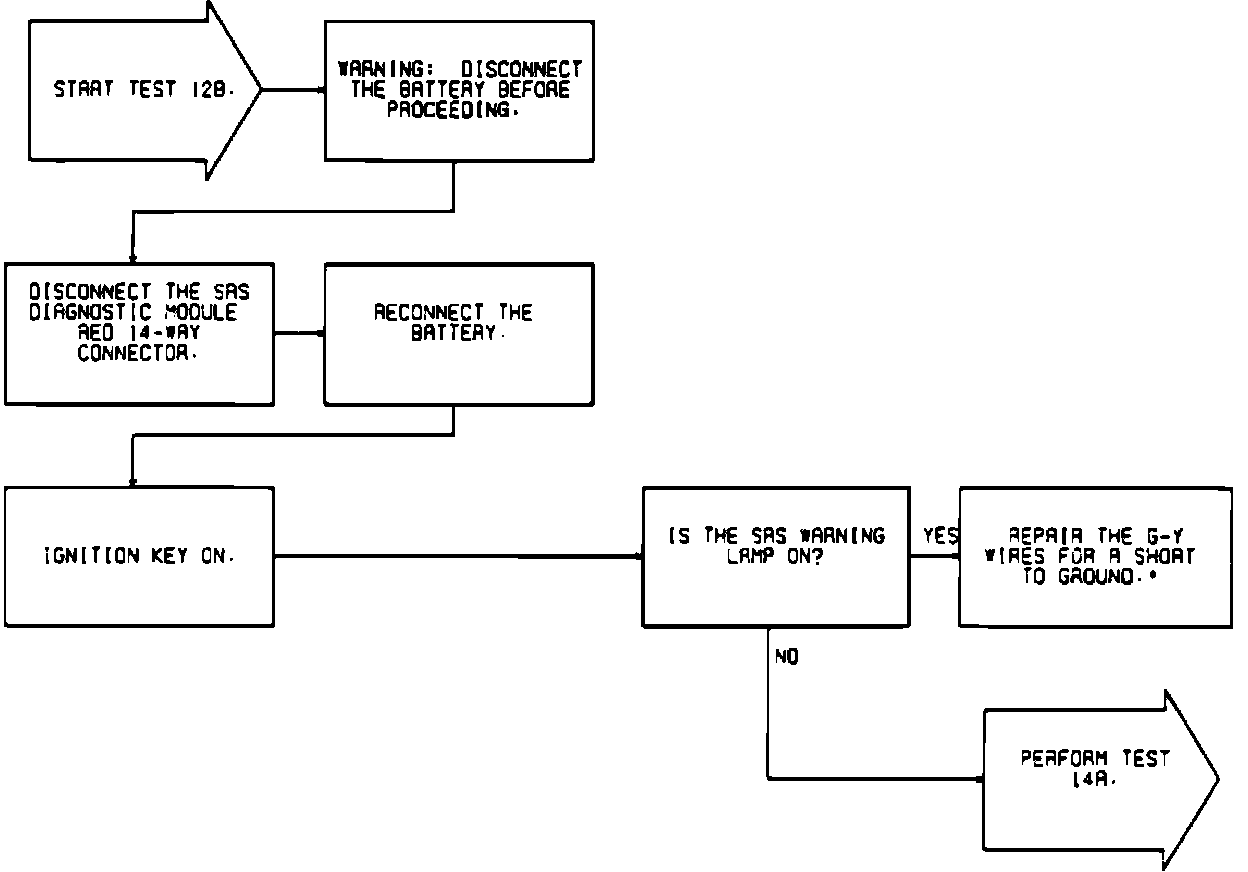

Fig. 73 Test 12B, Diagnosing Code 43 ``SRS Lamp On Constant.'':
