Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
12A Diagnosing Code 43- "SRS Lamp Trouble 1"
12A Diagnosing Code 43- "SRS Lamp Trouble 1"

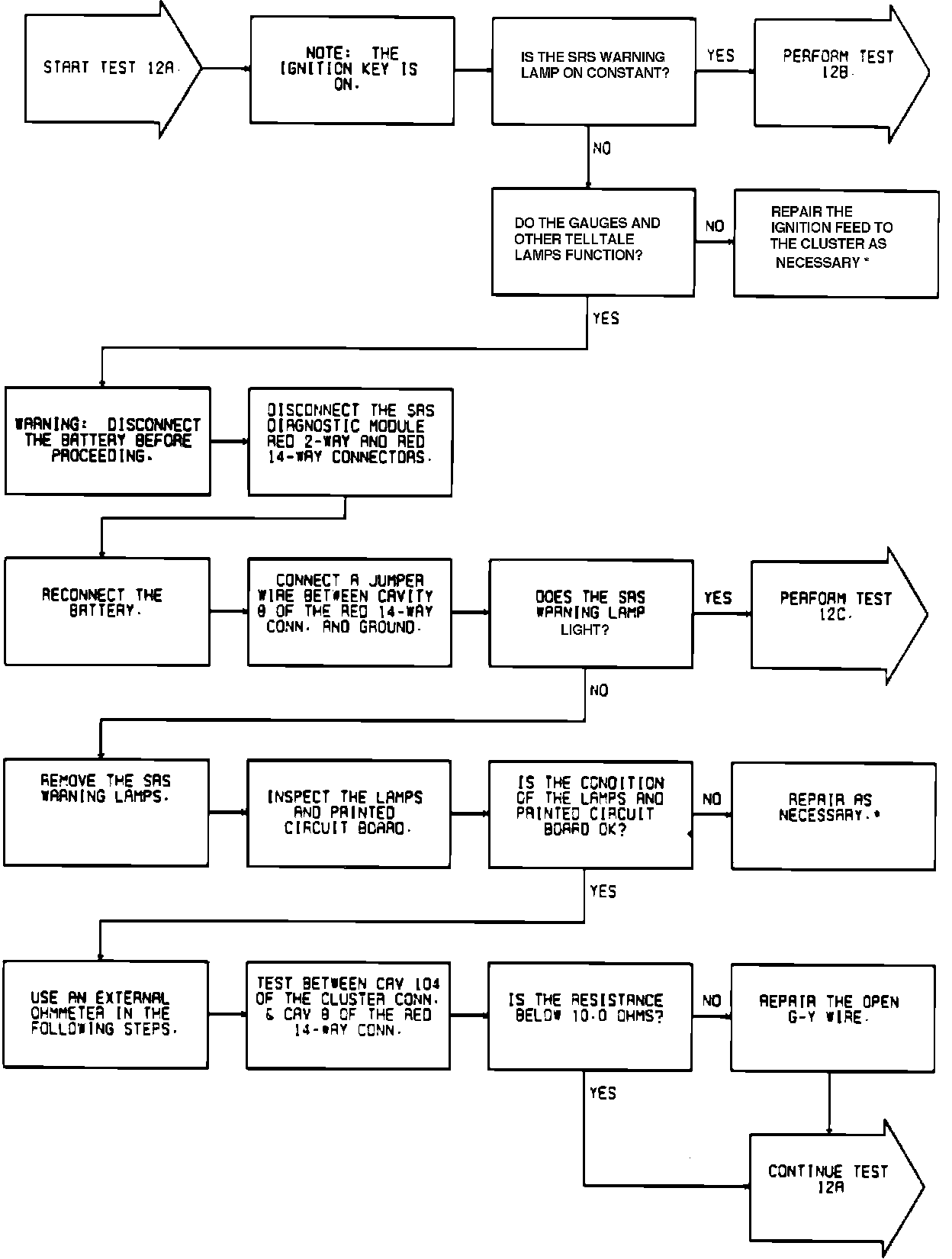

Fig. 72 Test 12A, Diagnosing Code 43 ``SRS Lamp Trouble 1'' (Part 1 Of 2):
Fig. 72 Test 12A, Diagnosing Code 43 ``SRS Lamp Trouble 1'' (Part 2 Of 2):
