Home >> Dodge >> 1996 >> Stealth R/T Turbo V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 1, 2 and 3 Digit Codes >> 52

1, 2 and 3 Digit Codes: 52

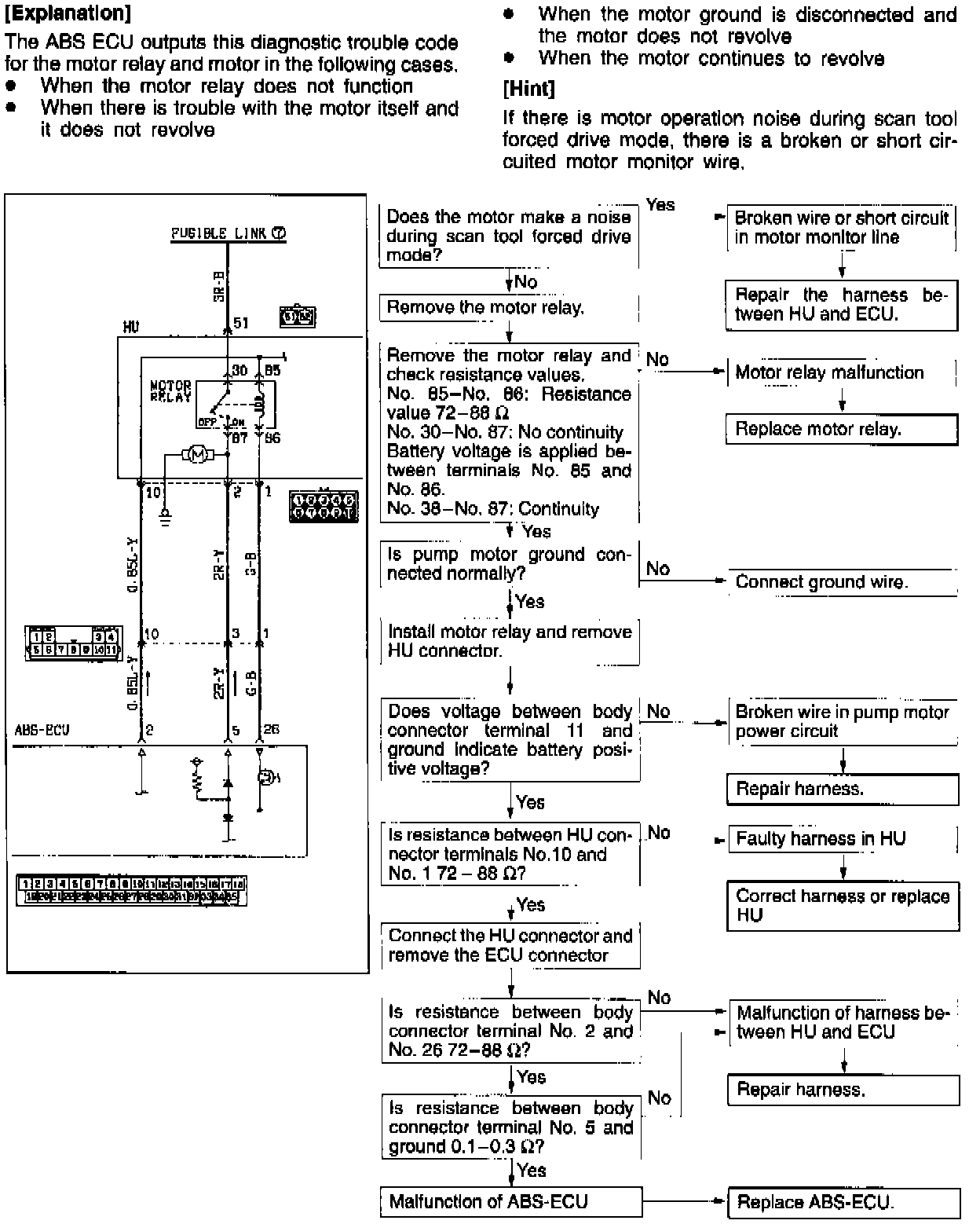

Fig 64 Code 52; ABS Chart E7, Abnormality Of Motor Relay Circuit:
