1, 2 and 3 Digit Codes: 43

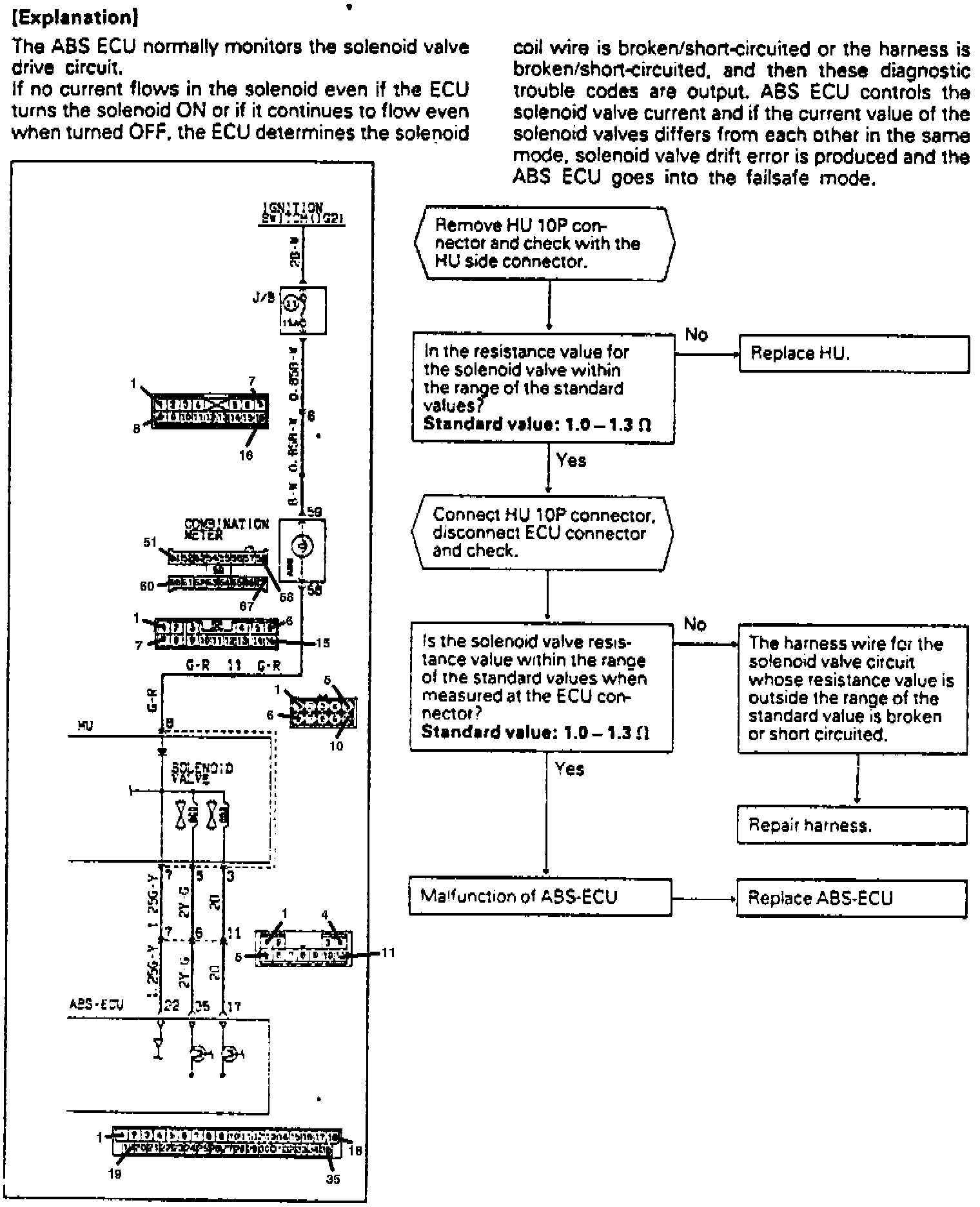

Fig 61 Codes 41, 42 & 43: ABS Chart E5, Abnormality Of Solenoid Valve Drive Circuit:
