Wipers Do Not Operate In Washer, Pulse or Intermittent Mode

Fig.9 Wiper Switch Tests:

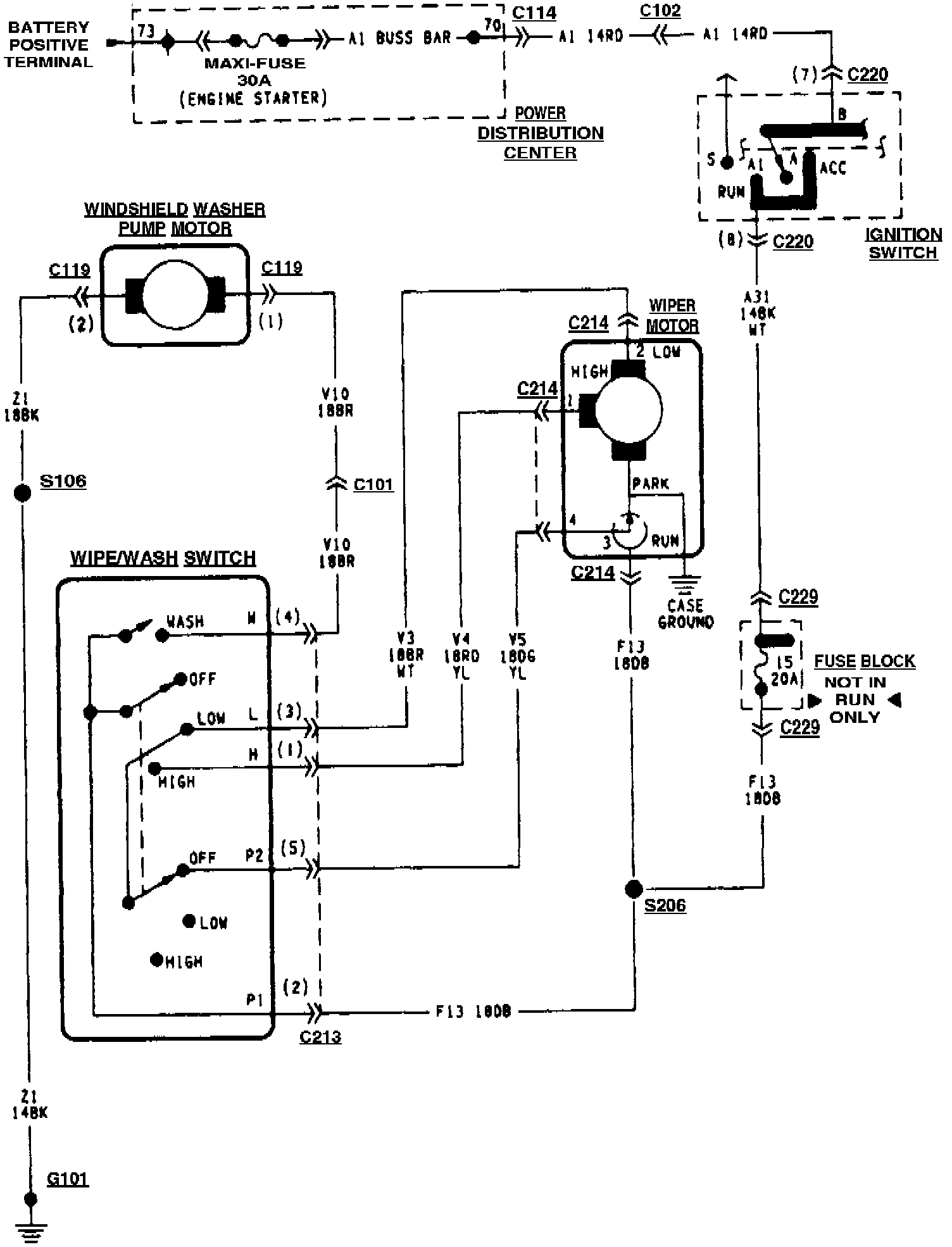

Fig.8 Wiper System Wiring Diagram (Part 1 of 2):

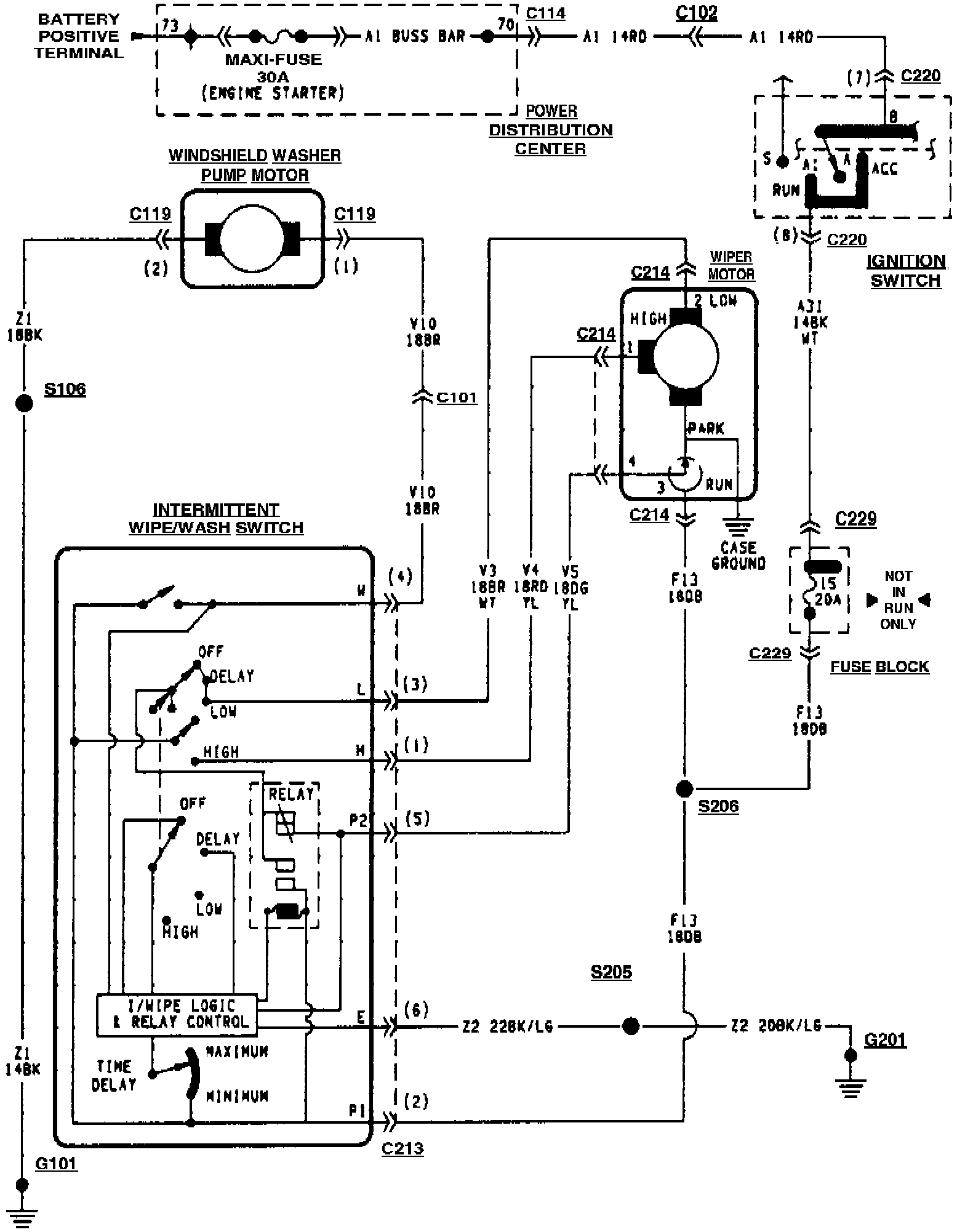

Fig.8 Wiper System Wiring Diagram (Part 2 of 2):

1. Using a suitable ohmmeter, check motor ground and continuity from terminal E of wiper switch, to ground.
2. If OK, replace wiper switch.
3. If not OK, repair wiring circuit as necessary.
