Disassembly/Assembly

1. Clamp strut assembly by the clevis bracket into suitable vise.

Coil Spring Removal:

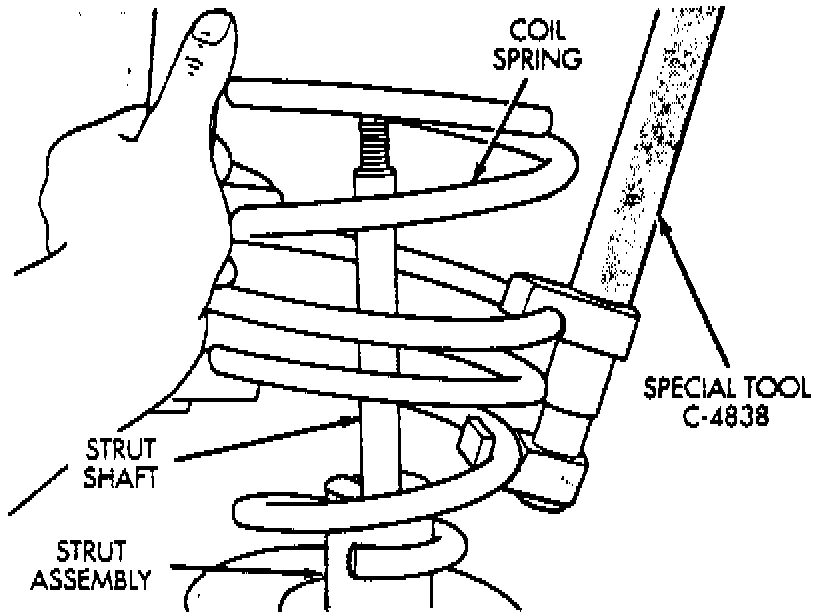

2. Scribe coil spring and strut assembly right or left, then using compressor tool No. C-4838, or equivalent, compress coil spring.
3. Install socket strut nut tool No. L4558A, or equivalent, on strut shaft retaining nut.
4. Install 10 mm socket on hex head of strut shaft and remove nut while holding strut to keep from rotating.
5. Remove upper spring seat, pivot bearing and dust shield as an assembly.
6. Remove coil spring.
7. Reverse procedure to install.
