Camshaft Bearing Caps

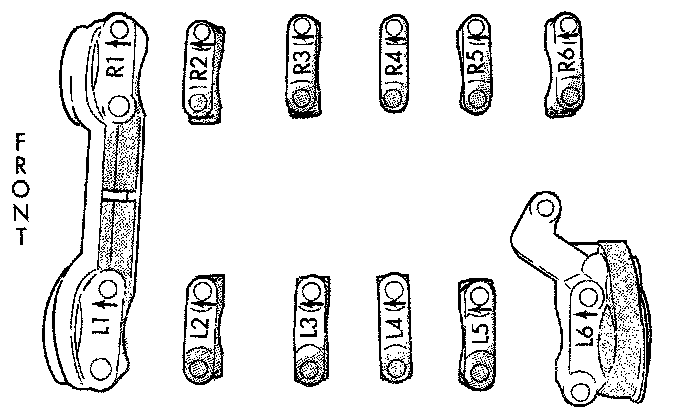

Camshaft Bearing Cap ID:

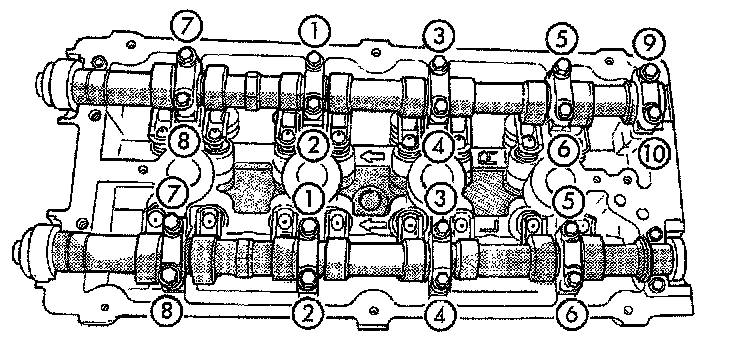

Camshaft Bearing Cap-Torque Sequence:

1. Lubricate bearing journals and cam followers with clean oil and install the camshafts. Install right and left camshaft bearing caps #2 thru #5 and right #6. Tighten M6 fasteners to 12 N.m (105 in. lbs.) in sequence.

Camshaft Bearing Cap Sealing:

2. Apply Mopar Gasket Maker to No.1 and No.6 bearing caps. Jnstall bearing caps and tighten M8 fasteners to 24 N.m (215 in. lbs.).

3. Bearing cap number 1, must be installed before the camshaft seals can be installed.
