Wiper Switch: Testing and Inspection

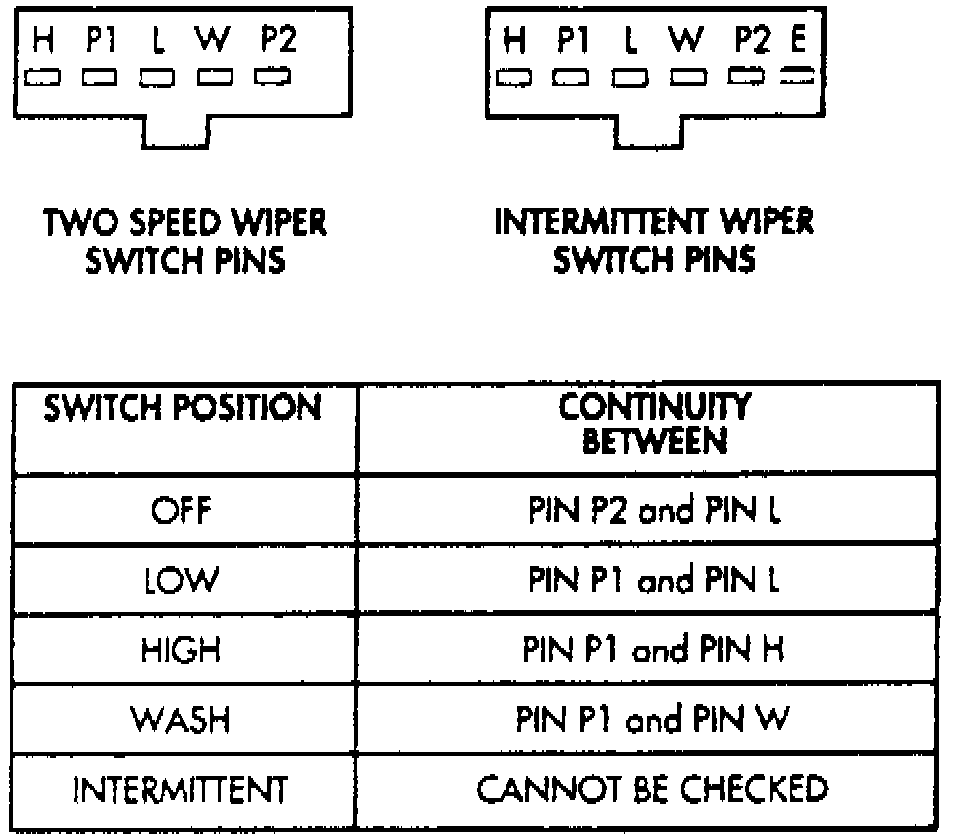

Fig.9 Wiper Switch Tests:

1. Disconnect wiper switch wiring from main wiring at steering column.
2. Using a suitable ohmmeter test continuity between connector pins as shown.
