High Pressure Sensor / Switch: Locations

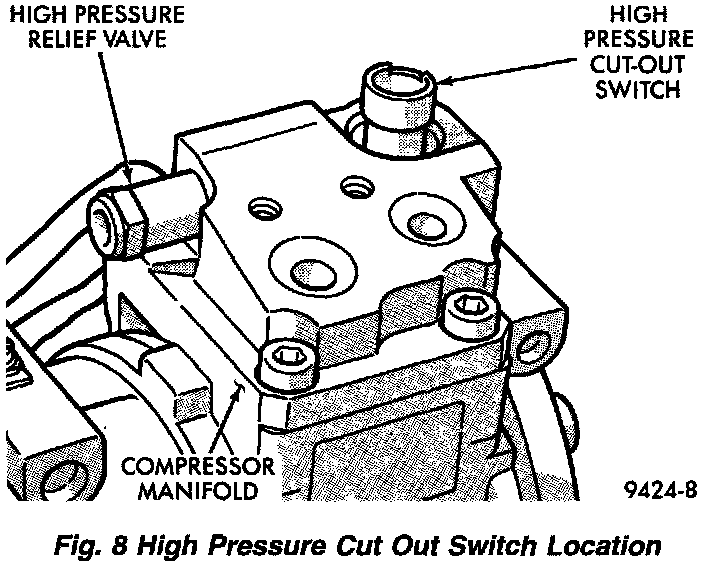

High Pressure Cut Out Switch:




The high pressure cut out switch is located in the compressor manifold.
