Seat Belt: Service and Repair
FRONT OUTBOARD SEAT BELTRemoval

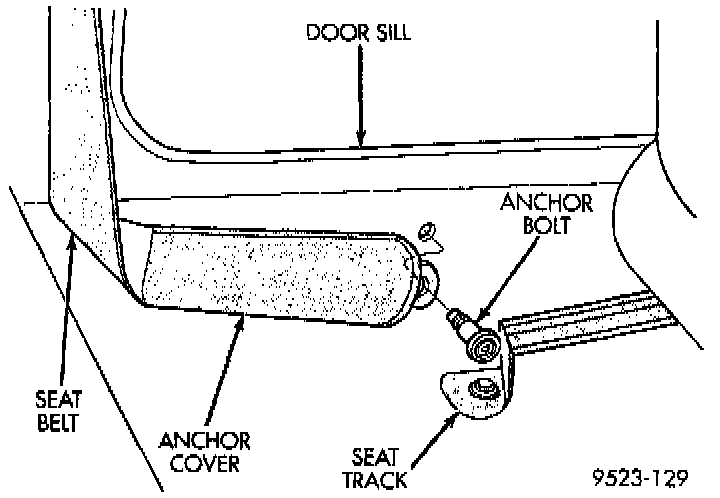

1. Slide lower seat belt anchor cover upward to expose bolt.
Front Outboard Seat Belt Anchor:
2. Remove bolt holding lower anchor bolt to floor below door sill.
3. Separate lower anchor from floor.
4. Remove rear seat cushion and back.
5. Remove quarter trim panel.
6. Guide seat belt webbing through slot in quarter trim panel.
7. Disengage wire connector from seat belt retractor.
Front Outboard Seat Belt Retractor:
8. Remove bolts holding seat belt retractor to B-pillar.
9. Separate seat belt retractor from vehicle.
Installation
Reverse the preceding operation. Tighten seat belt anchor bolt to 39 Nm (29 ft. lbs.).
FRONT SEAT BELT BUCKLE
1. Move front seat to the forward position.
2. Remove bolt holding seat belt buckle to seat.
3. Separate seat belt buckle from scat.
4. Reverse the preceding operation for installation.

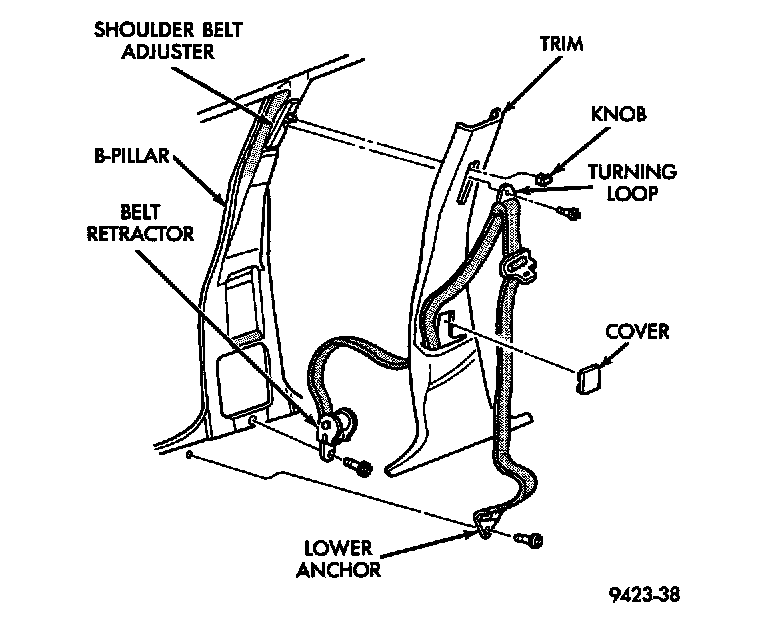

FRONT SEAT BELT RETRACTOR

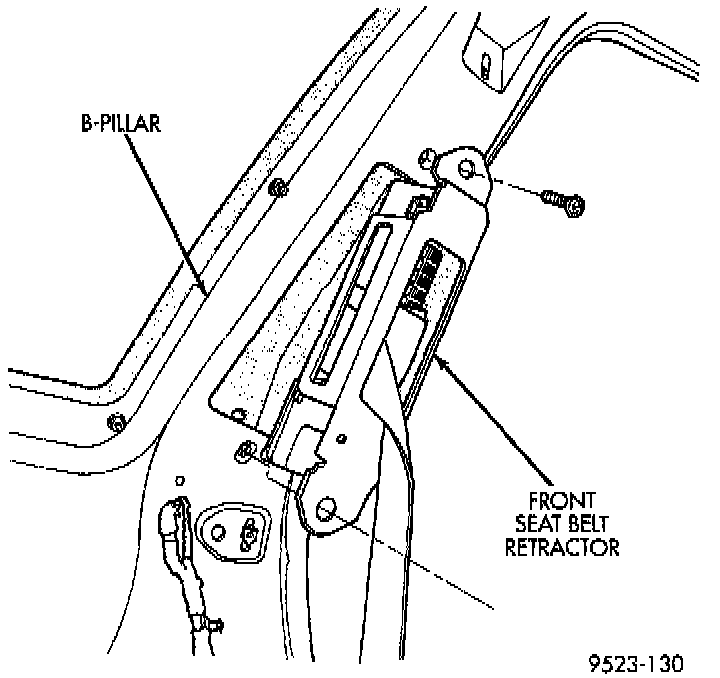

1. Remove B-pillar trim.
2. Remove bolt holding seat belt retractor to B-pillar.
3. Separate seat belt retractor from vehicle.
4. Reverse the preceding operation for installation.
REAR SEAT BELT BUCKLE
1. Remove rear seat cushion.
2. Remove rear seat back.
3. Separate rear seat belt buckle from vehicle.
4. Reverse the preceding operation for installation.
REAR SEAT BELT RETRACTOR
1. Remove rear seat cushion and back.
2. Remove seat belt bezel from parcel shelf cover.
3. Remove rear seat closure panel silencer pad as necessary to gain access to retractor.
4. Remove bolt holding seat belt lower anchor to floor.

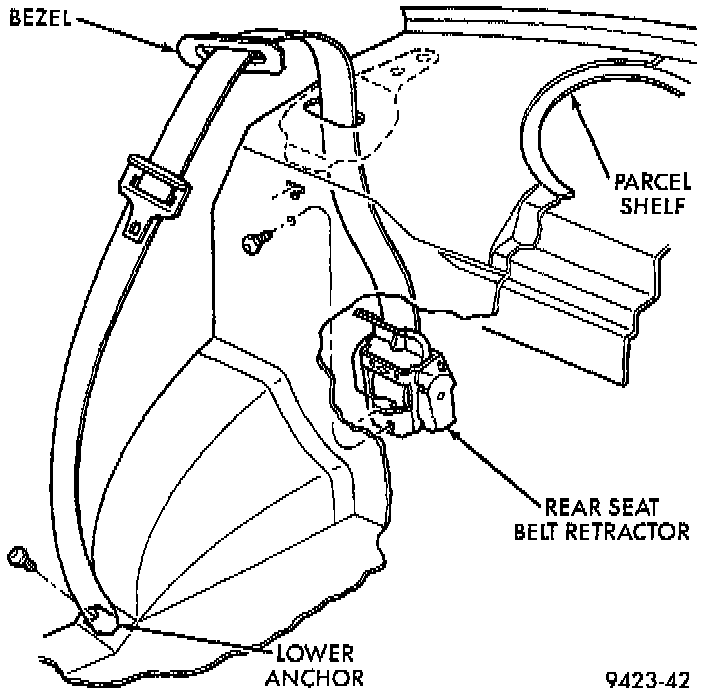

Rear Seat Belt Retractor:
5. Remove bolt holding retractor to rear seat closure panel.
6. Push seat belt bezel and buckle stab through access hole in parcel shelf.
7. From in luggage compartment, separate rear seat belt retractor from vehicle.
8. Reverse the preceding operation for installation.
