Air Bag Control Module: Diagrams

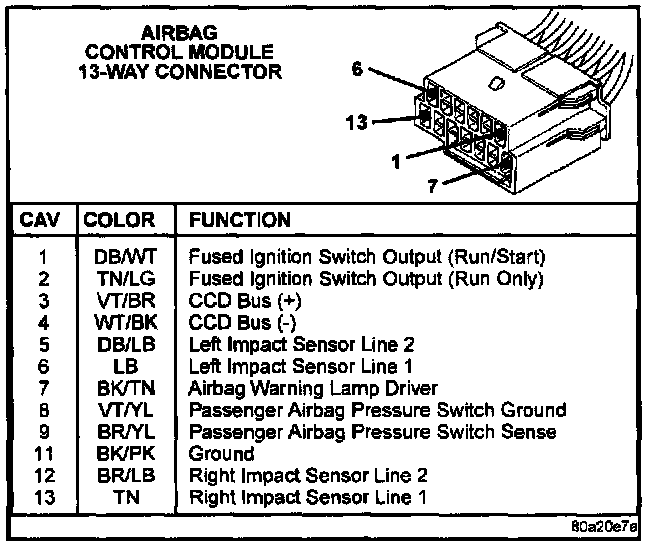

Airbag Control Module Connector -- 13 Way:

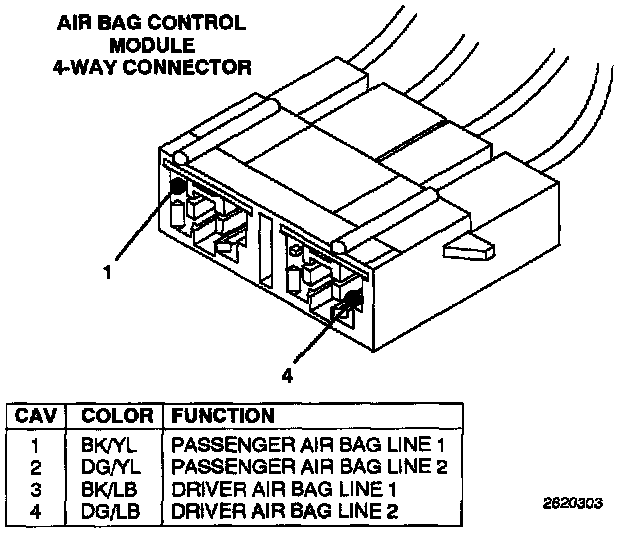

Airbag Control Module Connector -- 4 Way:
