A. Air Cleaner Drain Hole

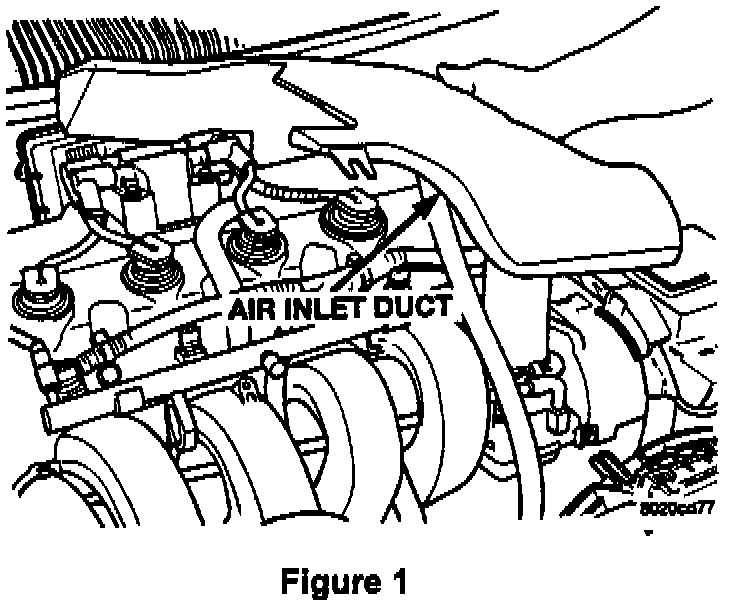

1. Remove the fresh air inlet duct from the air cleaner housing (Figure 1).

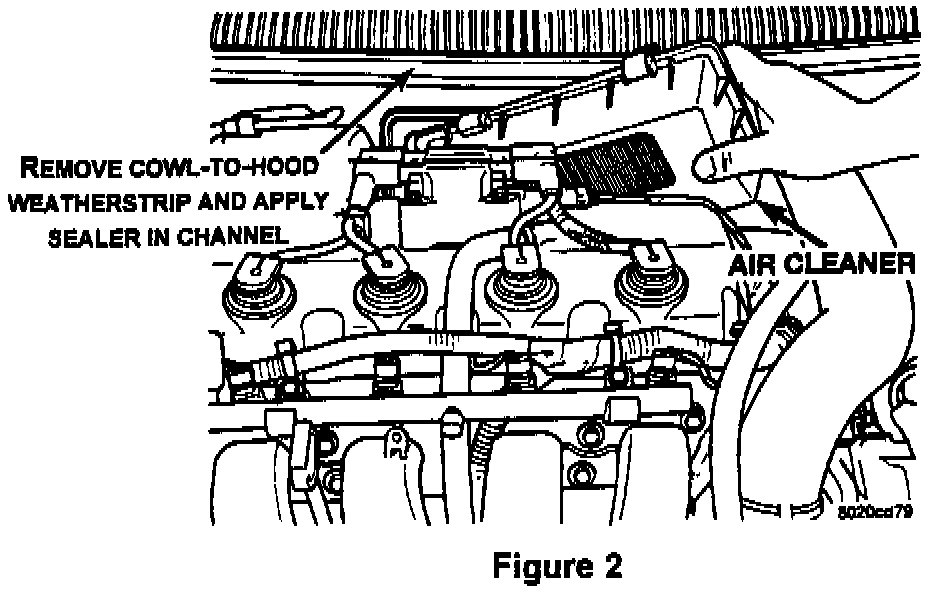

2. Unfasten the clips on the top of the air cleaner housing. Then rotate the front half of the housing forward and lift away from the rear half of the air cleaner housing (Figure 2).

3. Remove the air cleaner element and inspect for water in the rear half of the housing. Remove any water present.

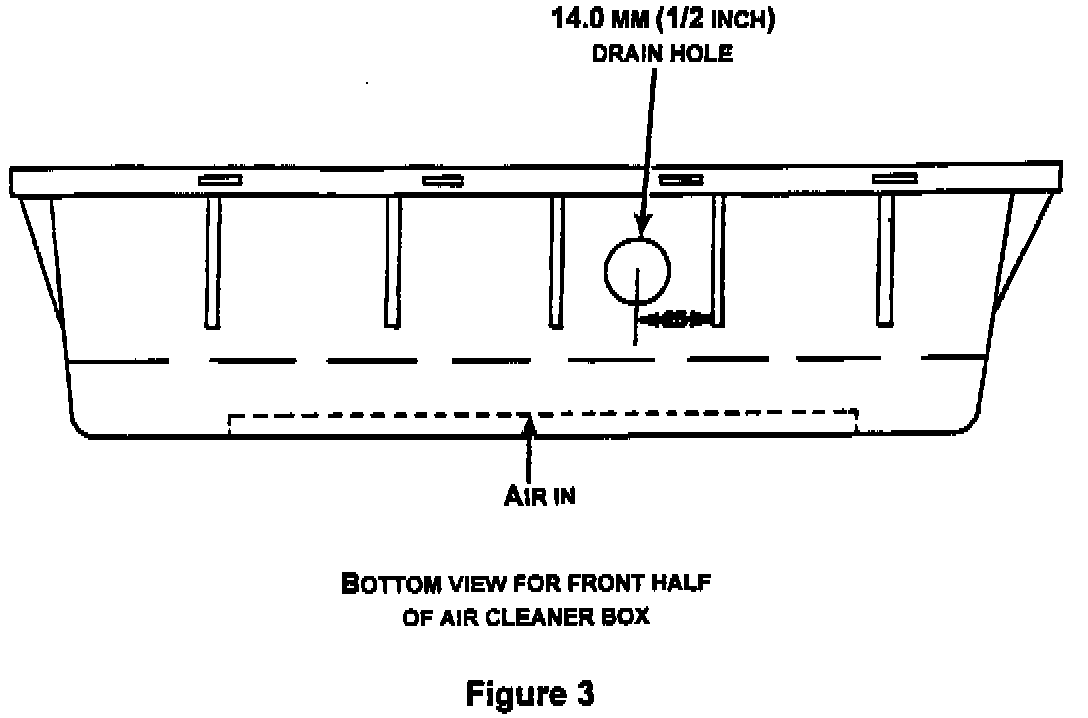

4. Drill a 1/2 inch (14 mm) hole in the bottom of the front half of the air cleaner housing as shown in Figure 3.

5. Reinstall the air cleaner element and front housing.

6. Reinstall the fresh air intake duct.
