Fuel Injector Connector - Orientation

NO: 08-38-95

GROUP: Electrical

DATE: Sep. 8, 1995

SUBJECT:
Fuel Injector Connector Orientation

MODELS:
1996 (PL) Neon

NOTE:
THIS BULLETIN APPLIES TO VEHICLES EQUIPPED WITH A 2.0L SOHC ENGINE

DISCUSSION:

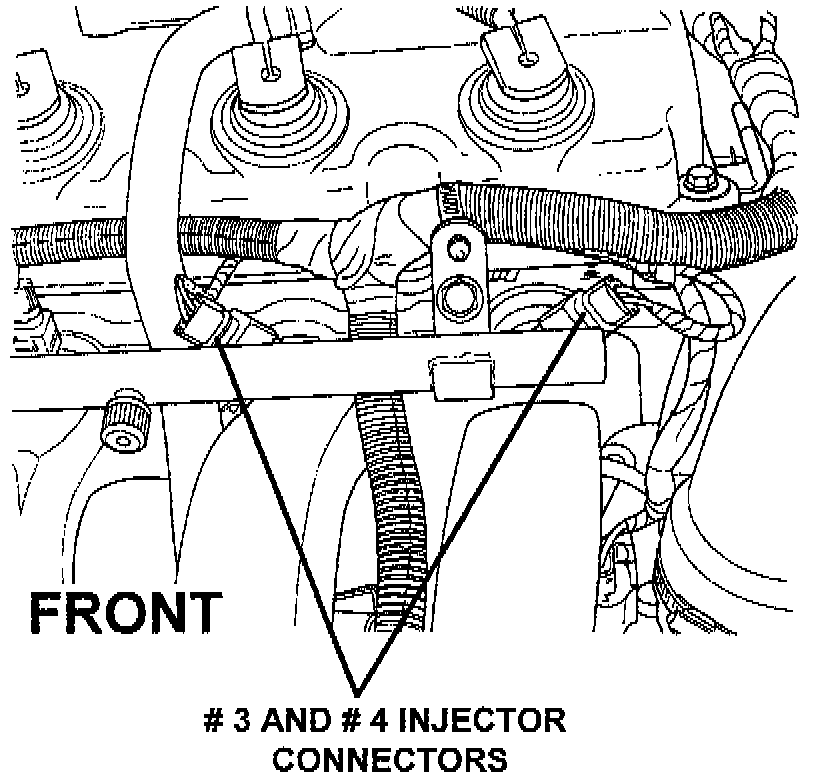

When servicing the engine, intake air duct or injectors, the number three and four injector connectors must be orientated at a 450 to 800 opposing angle. If the connectors are left in the 12:00 o'clock (straight up) position, the wiring may be chafed by the air intake duct resulting in an open circuit condition causing an engine miss. See illustration for proper connector orientation.

POLICY: Information Only
