FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.

Electrical - Horn Diagnosis/Service Revisions

NUMBER: 26-03-96A

GROUP: Miscellaneous

DATE: Mar. 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1996 Neon - Publication Number 81-370-6025

DESCRIPTION OF CHANGES

Revisions and additions to the Horn section

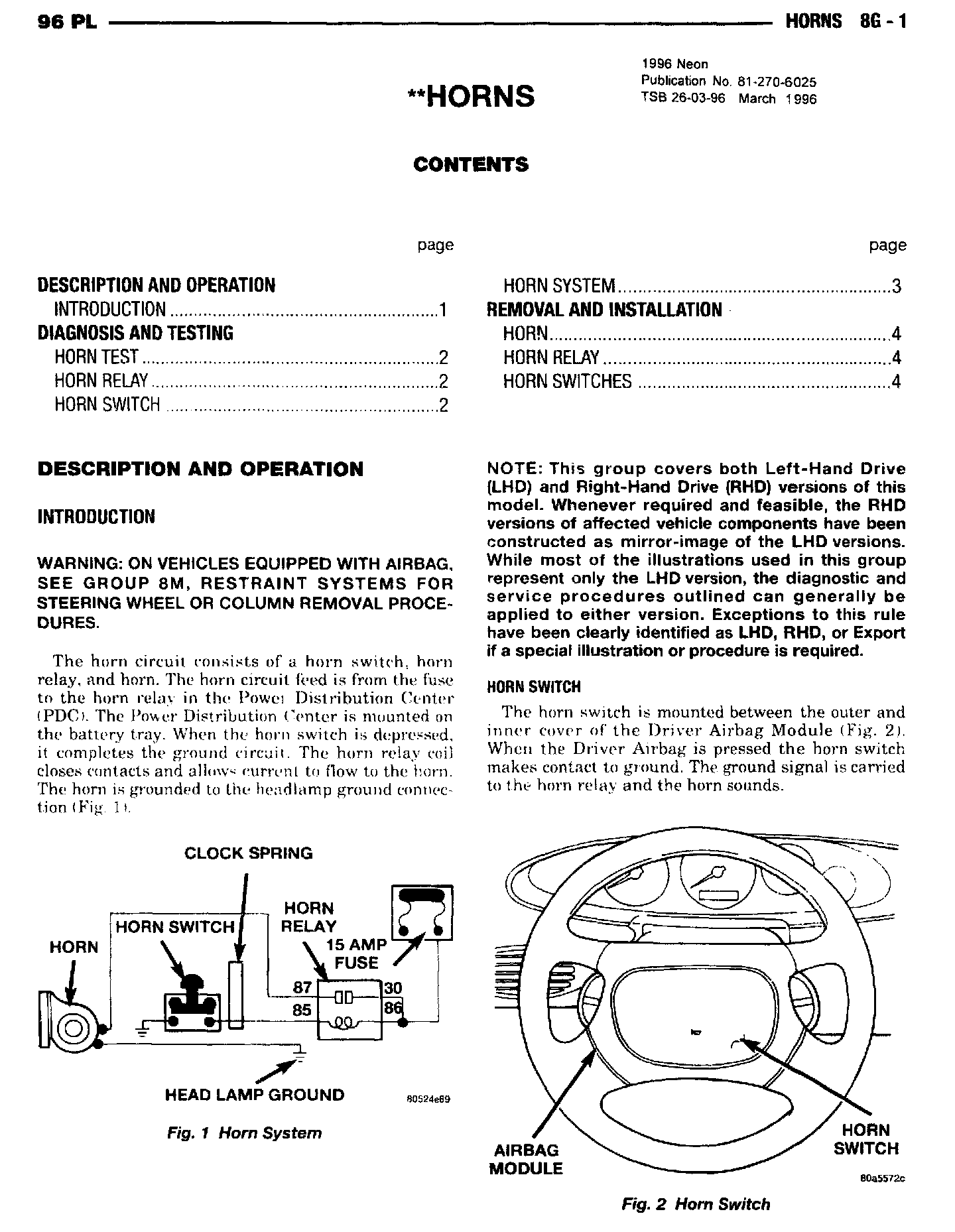

8G-1

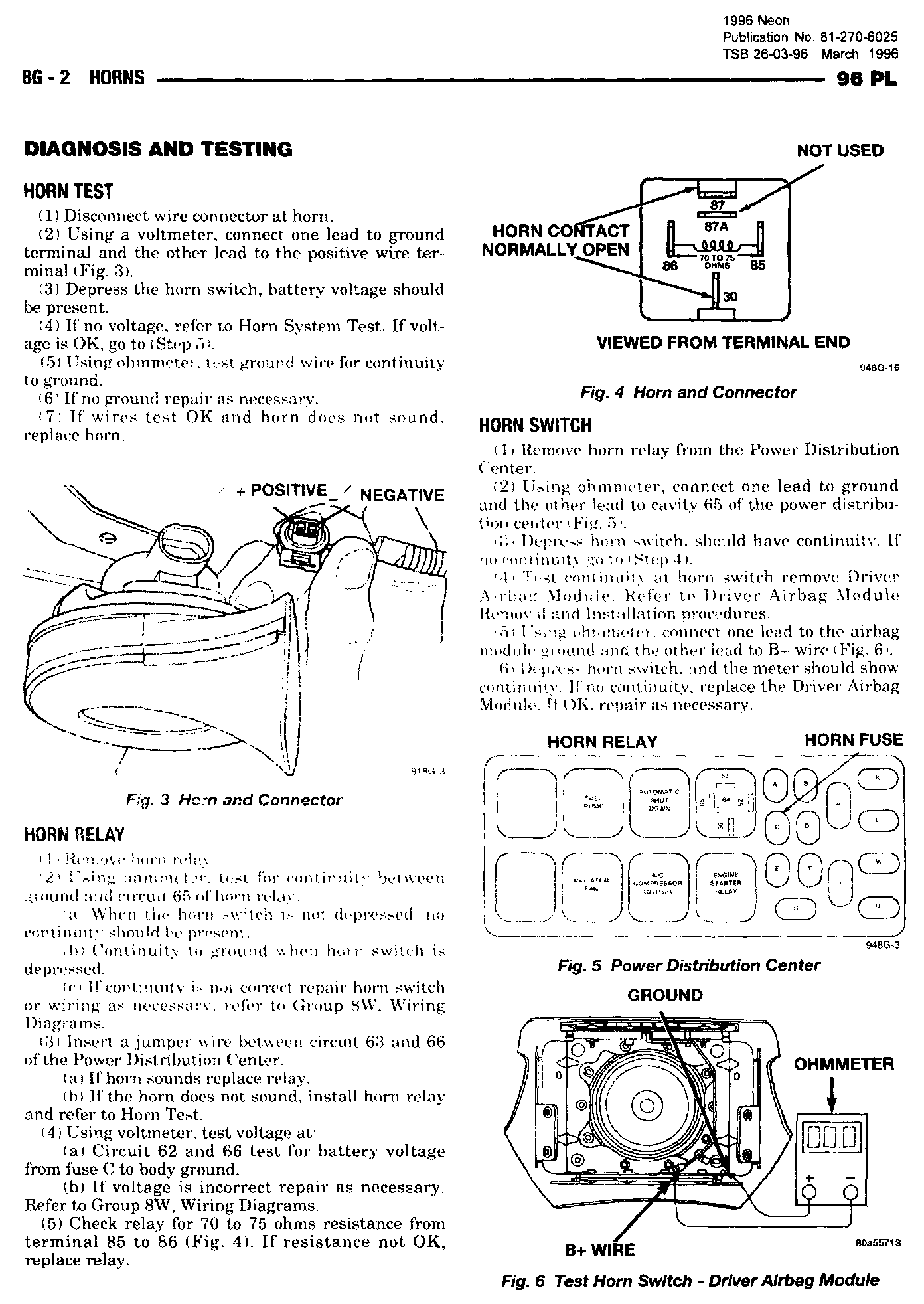

8G-2

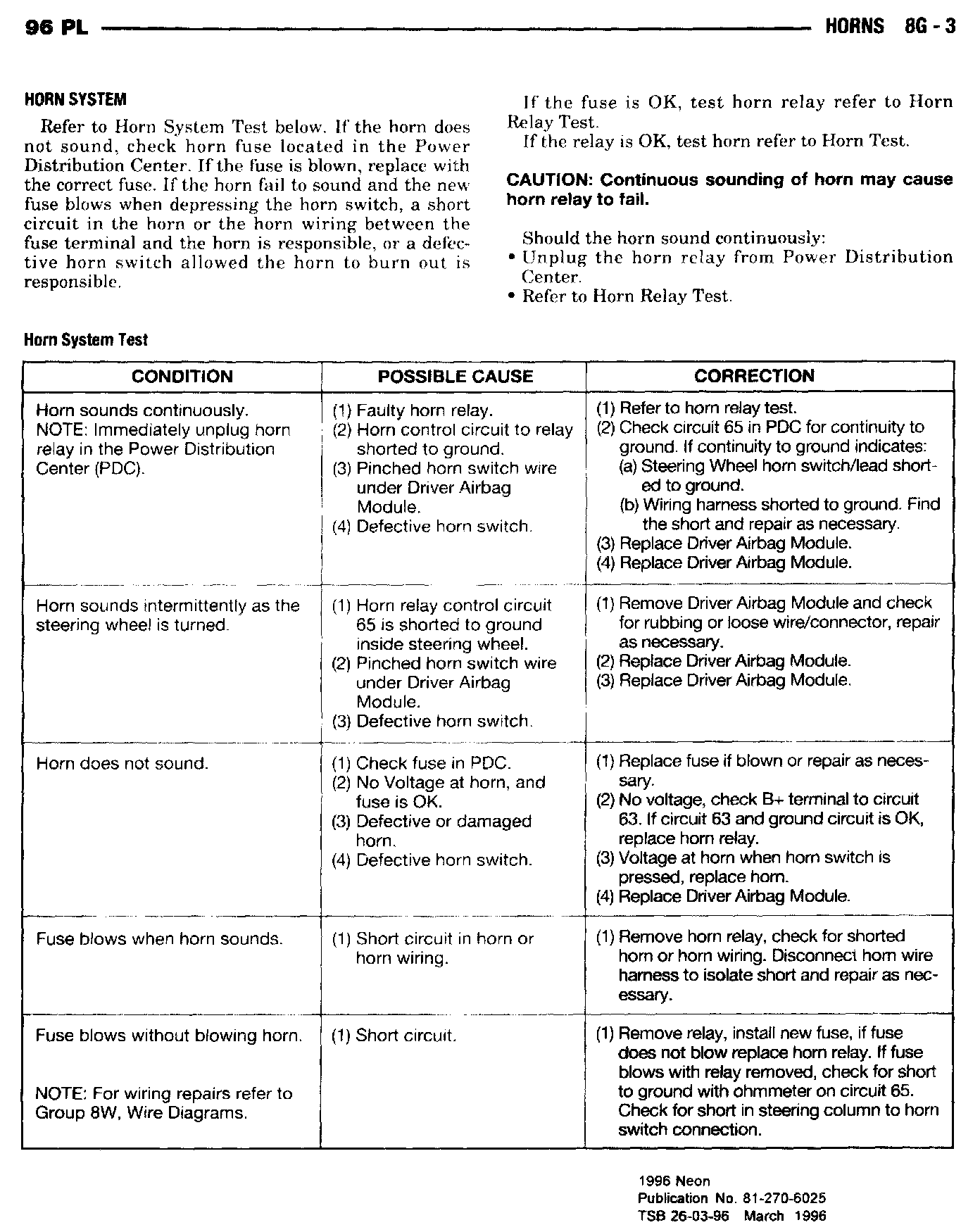

8G-3

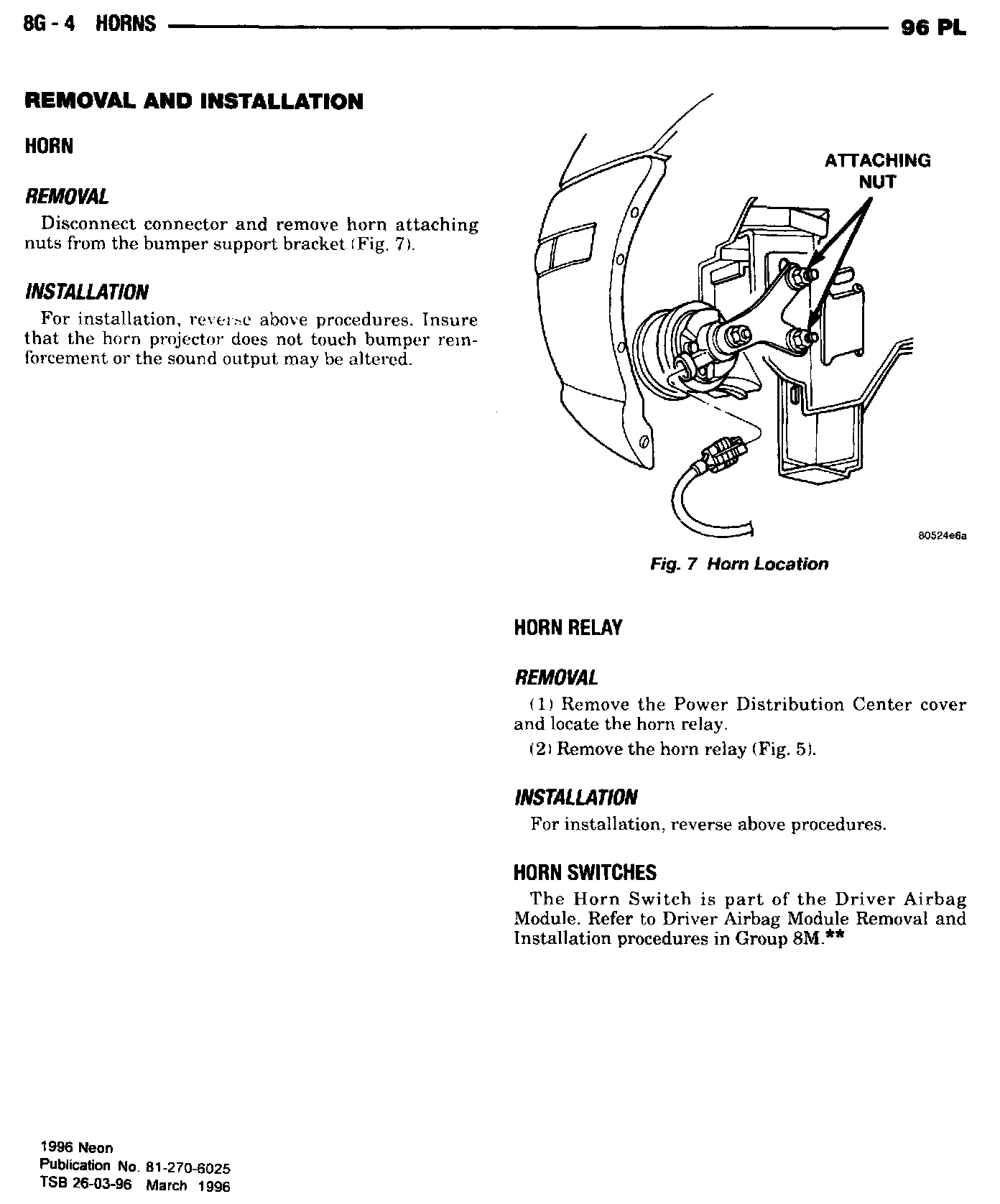

8G-4
