Rear Seat

Rear Seat Cushion:

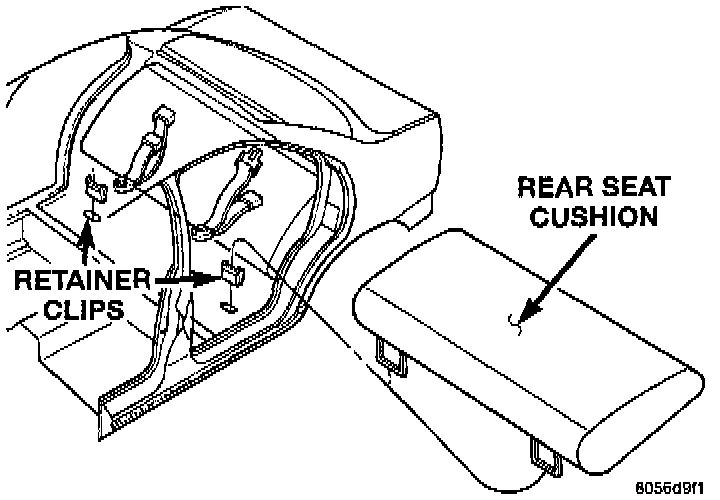

REAR SEAT CUSHION
Removal
1. Pull upward at each end of the rear seat cushion to disengage retainer loops from cups in floor.
2. Separate rear seat cushion from vehicle.

Installation
1. Place rear seat cushion in position under bottom of seat back.
2. Position inboard seat belts on top of seat cushion.
3. Guide seat cushion loops into retainer cups in floor pan.
4. Push downward on the front corners of the seat cushion to engage retainers.

Rear Seat Back:

REAR SEAT BACK
Removal
1. Remove rear seat cushion.
2. Remove bolts holding rear seat back and seat belts to floor.
3. Push rear seat back upward to disengage hooks at top of seat back.
4. Separate rear seat from vehicle.

Installation
1. Move rear seat back into position in vehicle.
2. Push seat back downward to engage hooks at top of seat back.
3. Install bolts holding rear seat back and seat belts to floor.

NOTE: The torque specification for the inner seat belt/rear seat back retaining bolts is 41 Nm (30 ft. lbs.).

4. Install rear seat cushion.
