Exploded Views

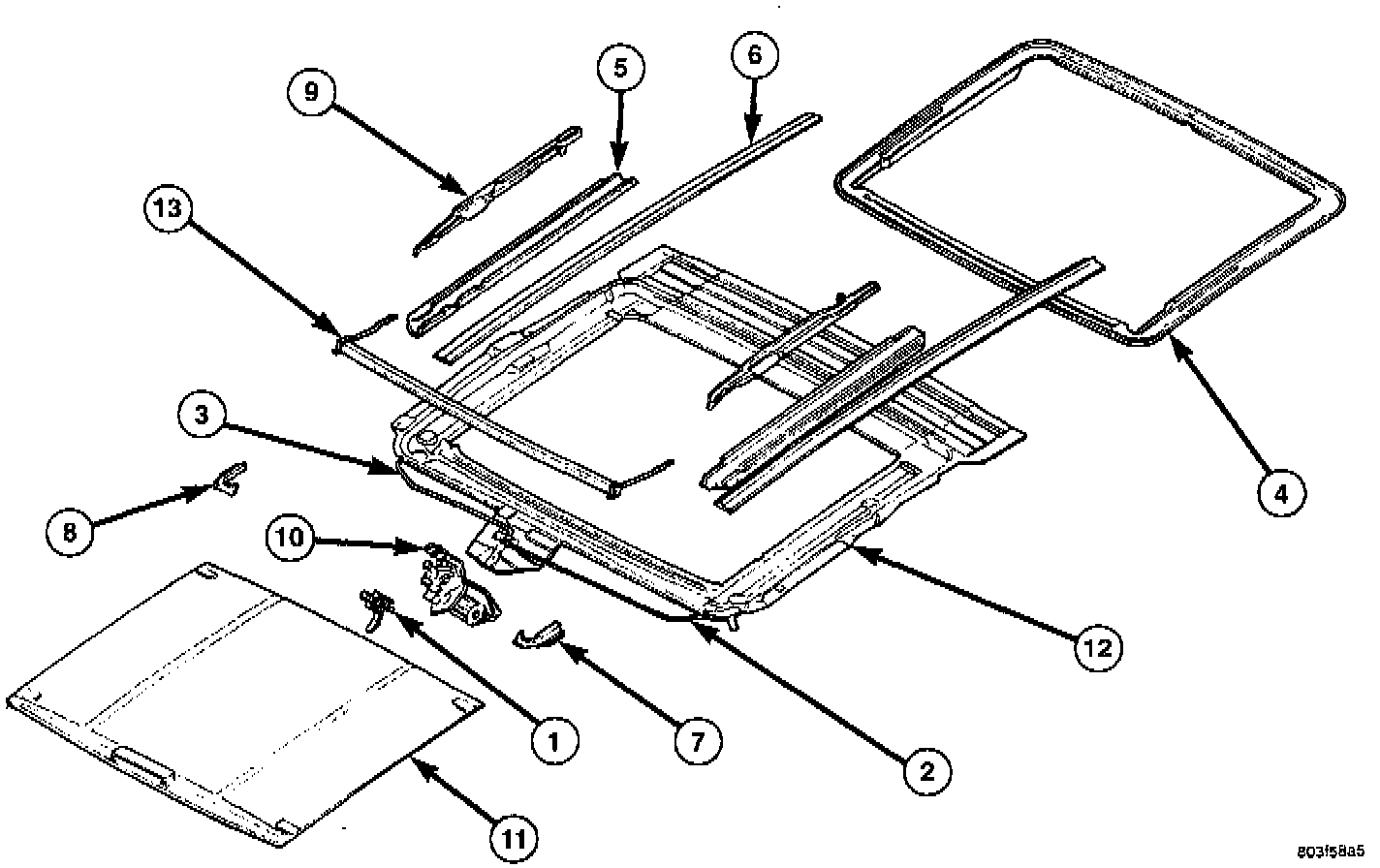

Sunroof Components:

Item Number Component Name
1 Drive Tube Locator
2 Drive Tube L.H.
3 Drive Tube R.H.
4 Glass Reinforcement Panel
5 Guide
6 Sunshade Guide
7 Locator L.H.
8 Locator R.H.
9 Mechanism
10 Drive Motor
11 Sunshade
12 Tray Assembly
13 Wind Deflector
