Quarter Trim Panel-2 Door

Quarter Trim Panel:

REMOVAL
1. Remove rear seat cushion and back.
2. Slide lower seat belt anchor cover up the webbing to expose the belt.
3. Remove bolt holding lower seat belt anchor to floor.
4. Separate seat belt from floor.
5. Remove screw holding coat hook to top of quarter trim panel.

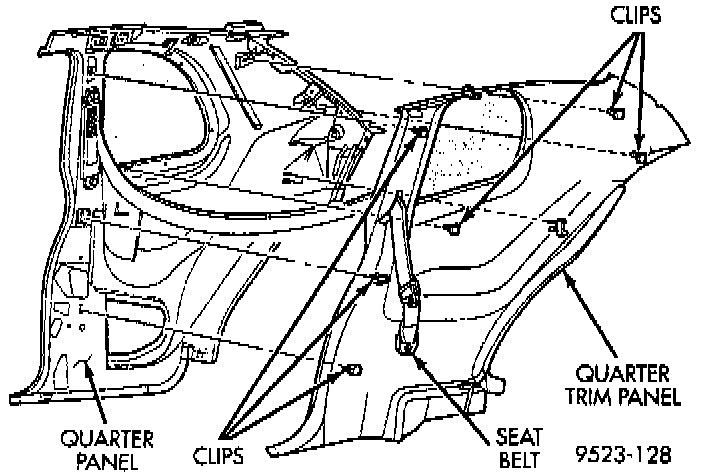

6. Disengage hidden clips holding quarter trim panel to inner quarter panel.
7. Separate trim from quarter panel.
8. Feed seat belt webbing through access bole in trim panel.
9. Separate quarter trim panel from vehicle.

INSTALLATION
1. Feed seat belt webbing through access hole in trim panel.
2. Position trim panel near inner quarter panel.
3. Align locating pins on backside of trim panel to mating holes in inner quarter panel.
4. Push clips on trim panel into slots in inner quarter panel starting with the clips located near locating pins.
5. Install screw holding coat hook to top of quarter trim panel.
6. Install bolt securing seat belt anchor to floor.
7. Slide lower seat belt anchor cover down to cover anchor bolt.
8. Install rear seat cushion and seat back.
