Door Opening Trim Welt

Door Opening Trim Welt:

REMOVAL
1. Open door to gain access to trim welt.
2. Remove door sill trim panel.
3. Pull trim welt from door opening flange.

INSTALLATION

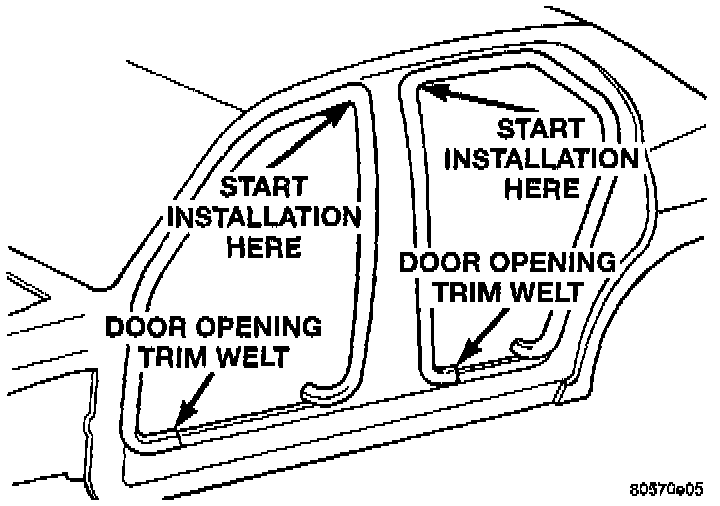

1. Locate paint dot on backside of trim welt.
2. Position trim welt to vehicle with paint dot in the appropriate position.
3. Press trim welt onto door opening flange starting at the paint dot position.
4. Install door sill trim panel
