Rear Door Latch: Service and Repair

REMOVAL
1. Remove door trim panel and water shield.
2. Close door glass.
3. Disconnect lock and latch rods from door latch.
4. Disengage wire connector from power door lock motor, if equipped.

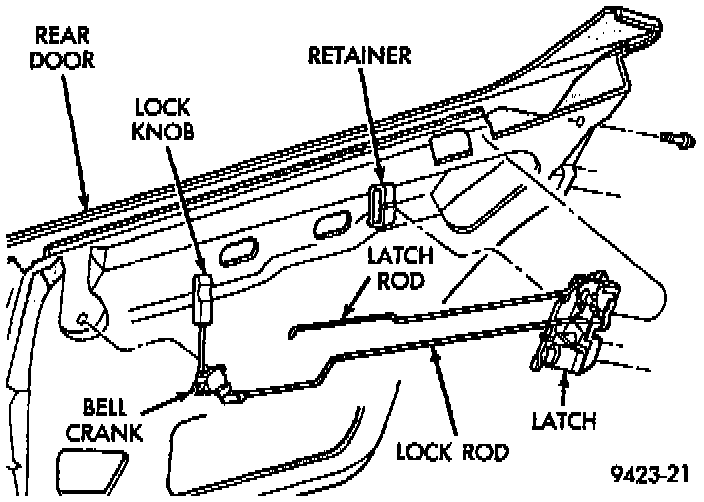

Rear Door Latch:

5. Remove screws holding latch to door end frame.
6. Separate door latch from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the door latch. Door may fail to open.

1. Position door latch on vehicle and install screws holding latch to door end frame.
2. Engage wire connector to power door lock motor, if so equipped.
3. Connect lock and latch rods to door latch.
4. Install watershield and door trim panel.
