Security Lamp/Indicator: Locations

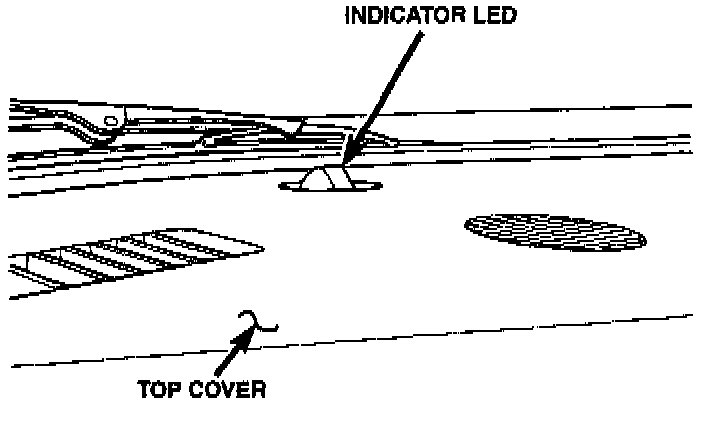

VTSS Indicator LED:





The Vehicle Theft Security System (VTSS) Indicator LED is located in the top cover of the dash panel.
