Intrepid V6-201 3.3L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Vehicle Communication Tests
>>
136A Bus (+) and Bus (-) Shorted Together Failure
136A Bus (+) and Bus (-) Shorted Together Failure
Related Images:

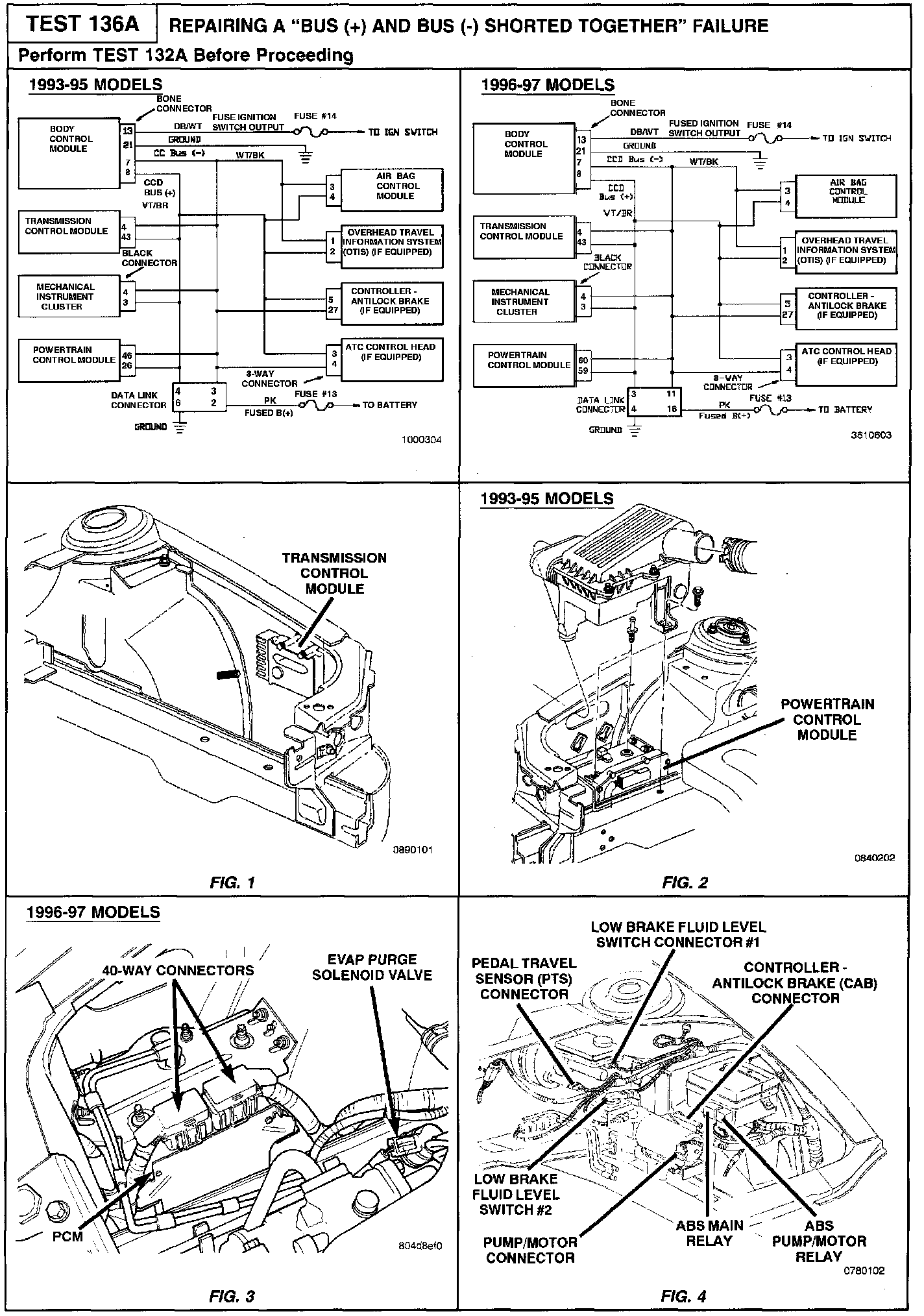

136A Part 1 Of 2:
Related Images:

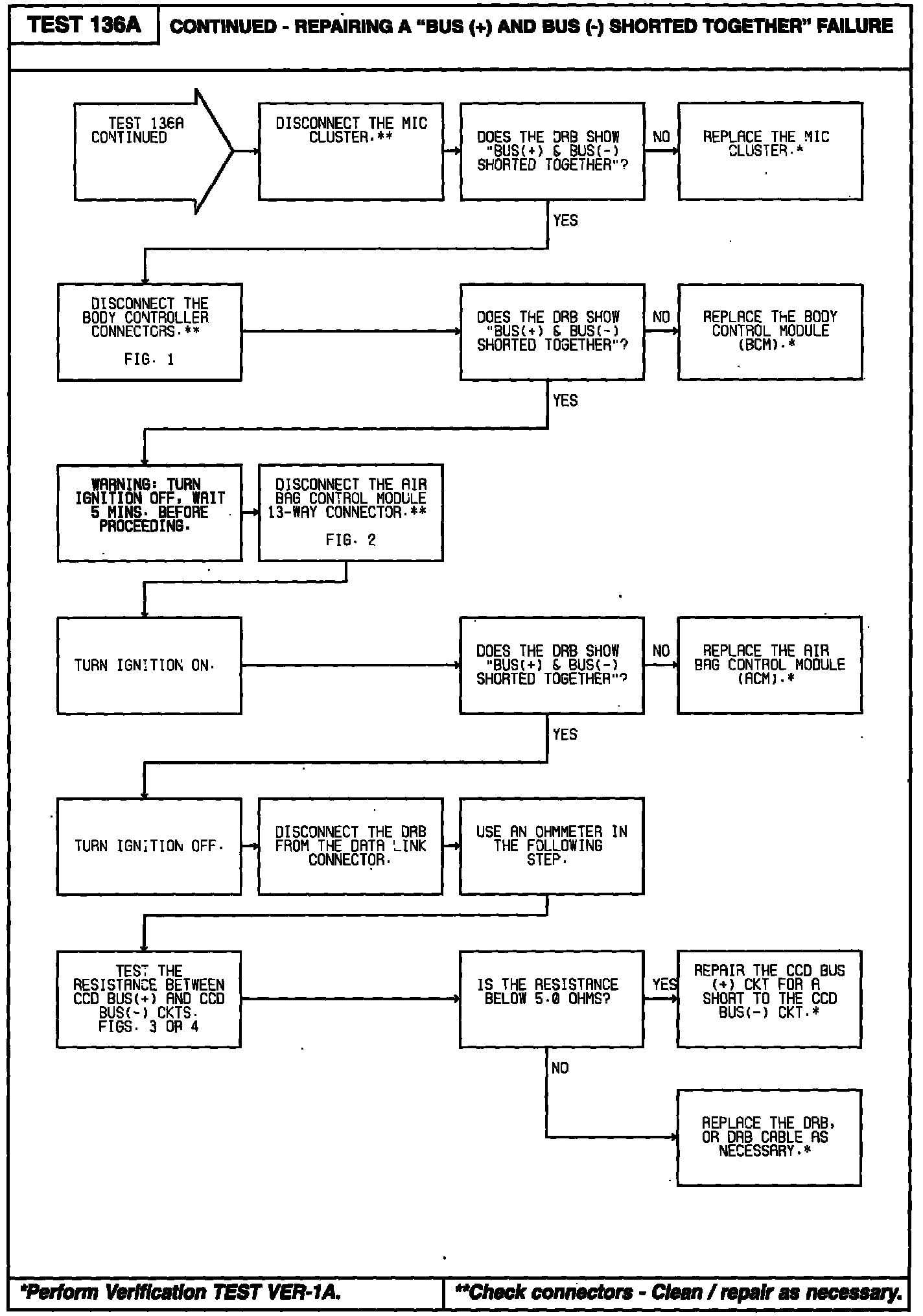

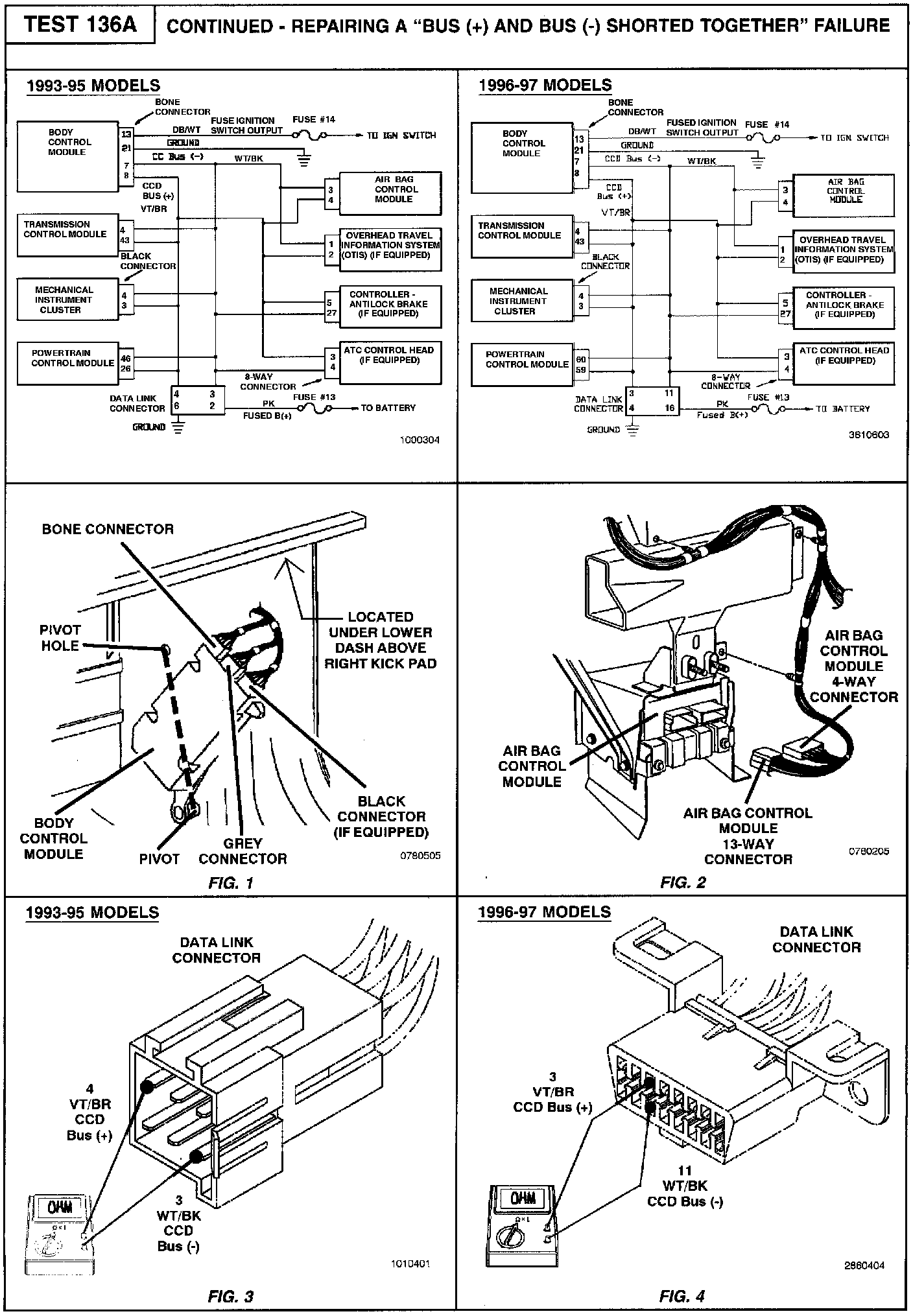

136A Part 2 Of 2:
