Home >> Dodge >> 1996 >> Intrepid V6-201 3.3L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> TC-27B No Vehicle Speed Sensor Signal

TC-27B No Vehicle Speed Sensor Signal

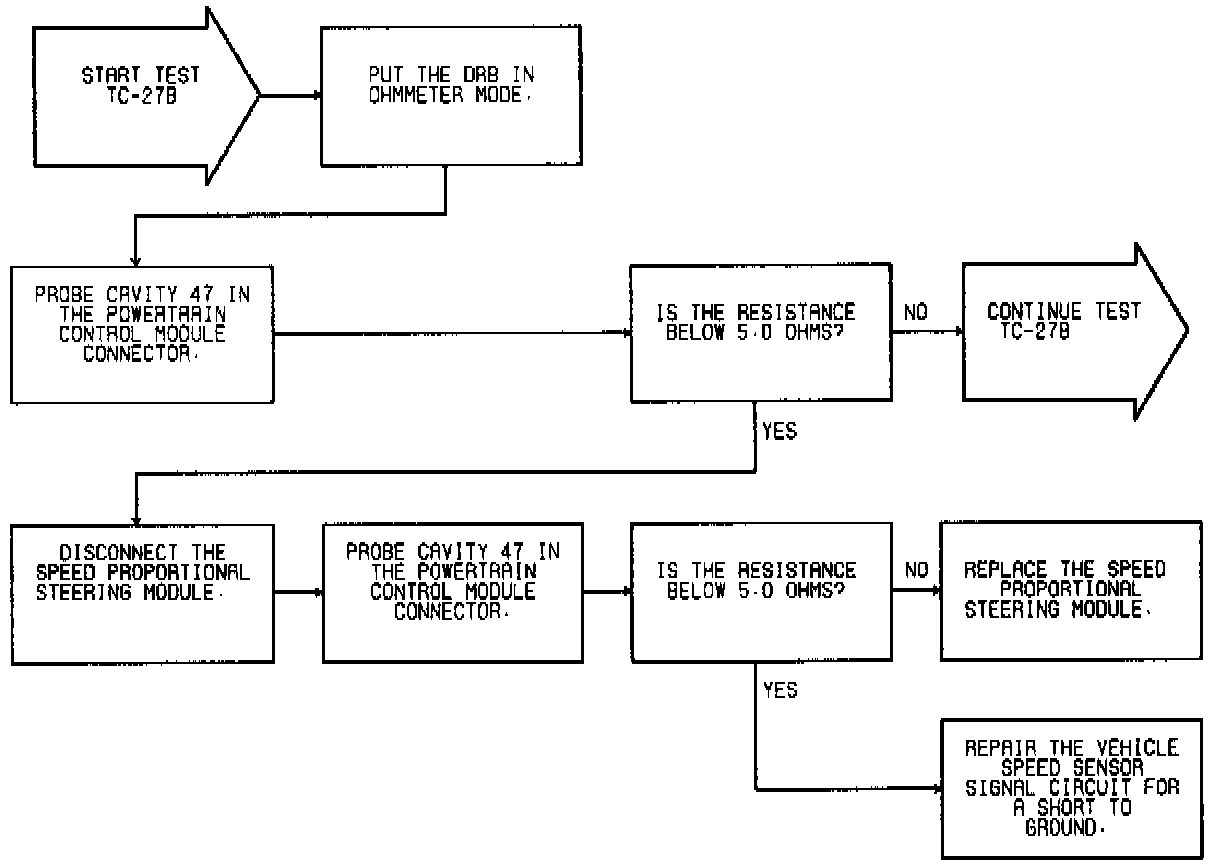

Fig. 3 Code 15 (Test TC-27B): No Vehicle Speed Sensor Signal (Part 1 Of 2):

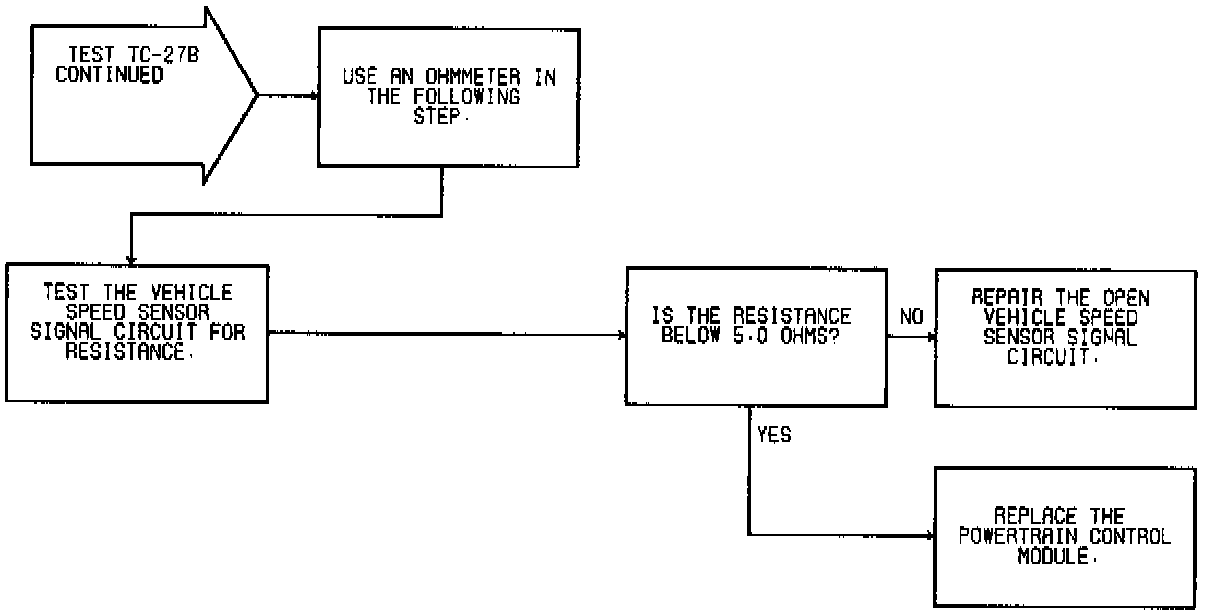

Fig. 3 Code 15 (Test TC-27B): No Vehicle Speed Sensor Signal (Part 2 Of 2):
