TC-27A No Vehicle Speed Sensor Signal

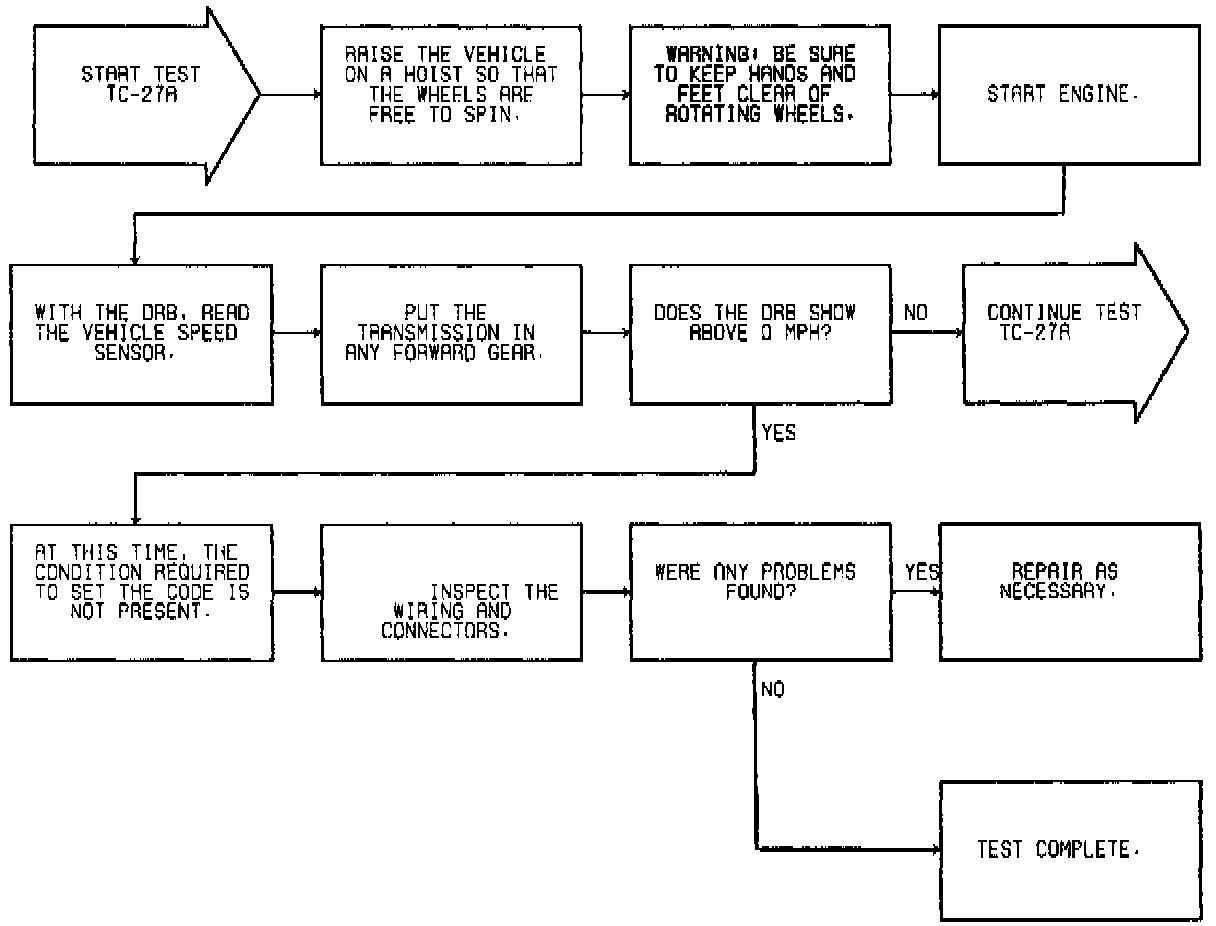

Fig. 2 Code 15 (Test TC-27A): No Vehicle Speed Sensor Signal (Part 1 Of 3):

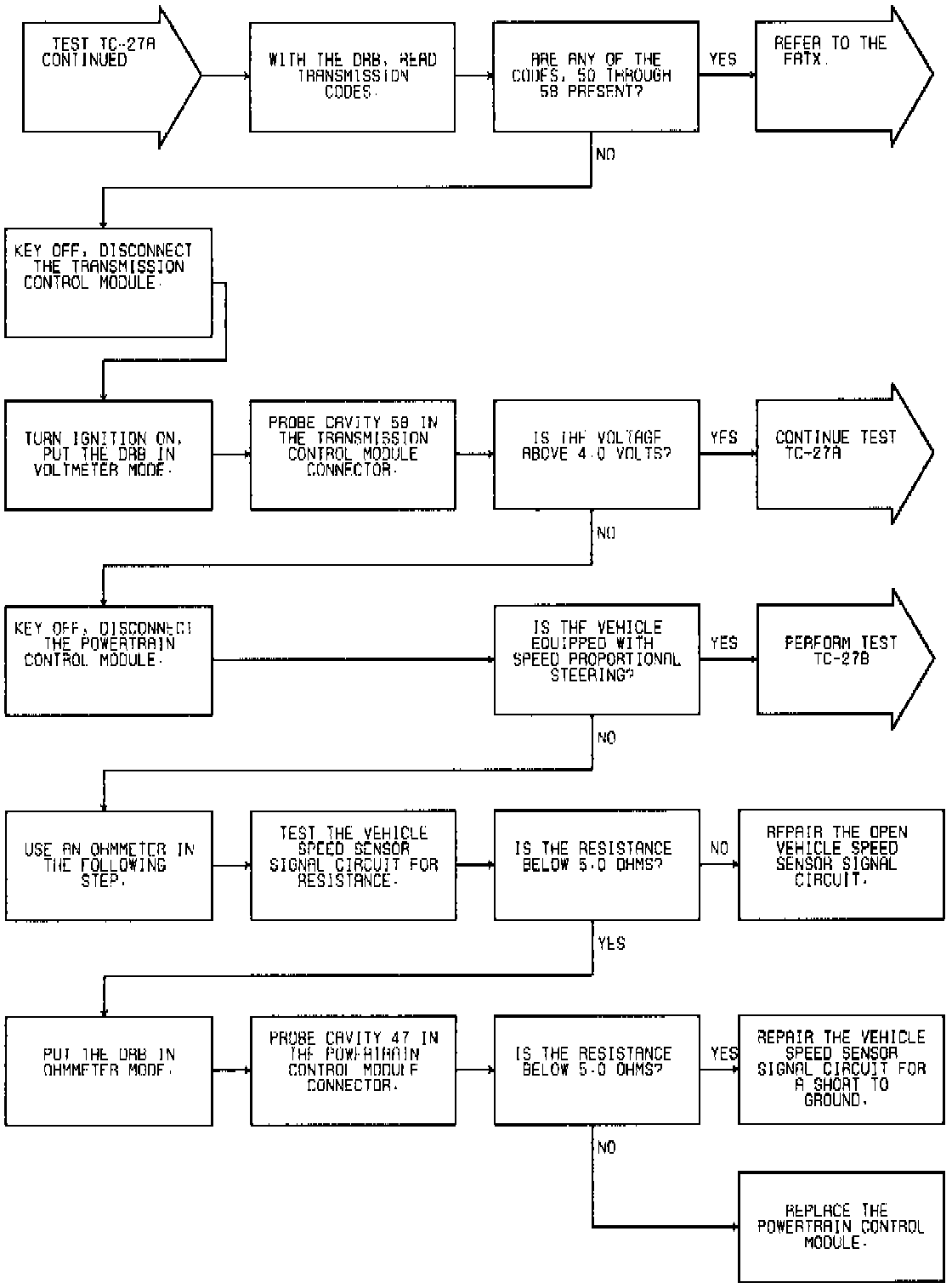

Fig. 2 Code 15 (Test TC-27A): No Vehicle Speed Sensor Signal (Part 2 Of 3):

Fig. 2 Code 15 (Test TC-27A): No Vehicle Speed Sensor Signal (Part 3 Of 3):
